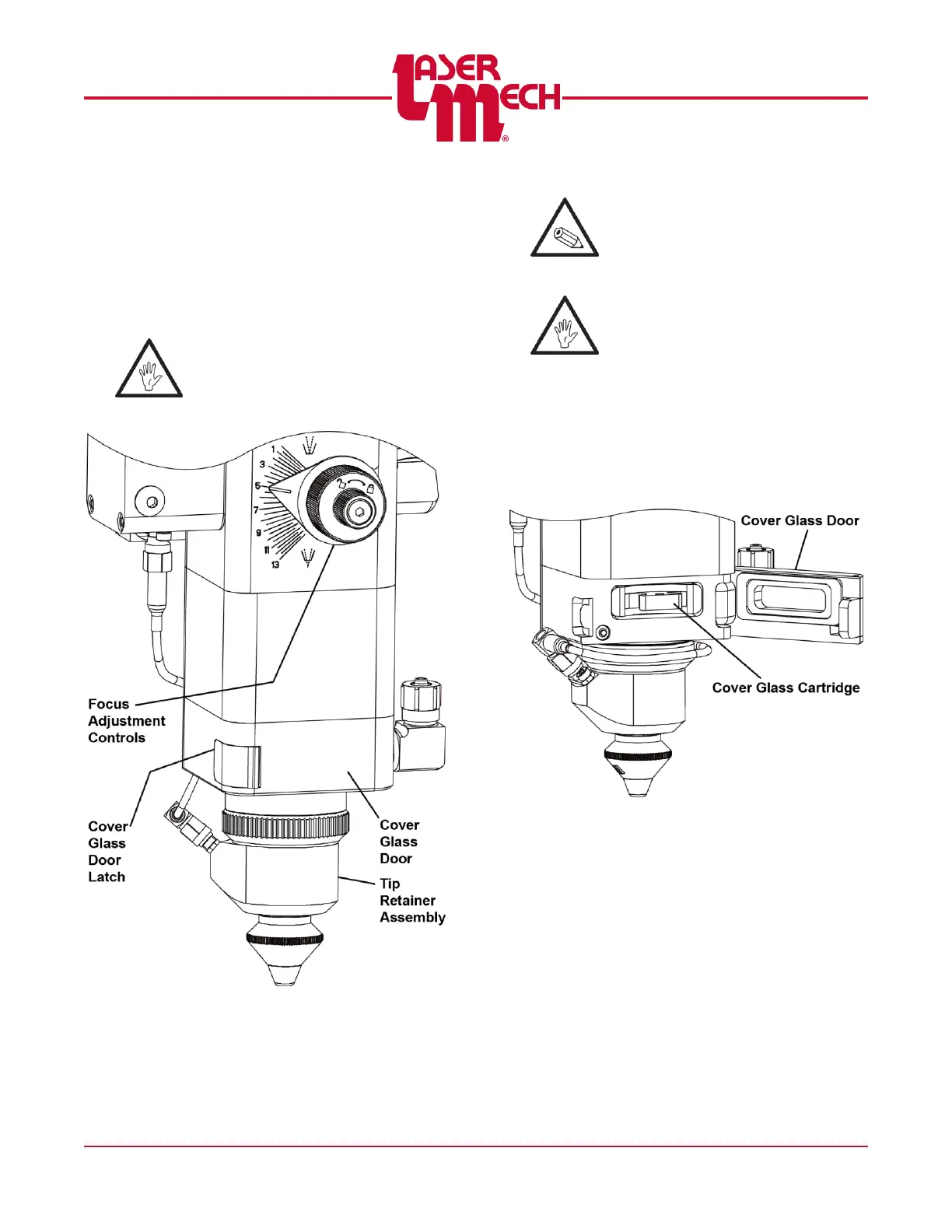

5.3 Servicing the Cover Glass
The cover glass for the FiberMINI
®
2.0 is
located between the focus adjustment
controls and the tip retainer assembly.
See Figure 33.
Before opening any part of the
head, clean off the dust and/or
process debris using an exterior
cleaning towel (PLTLS0023) or
equivalent.
Figure 33
The cover glass can be changed
while the head is mounted to the
robot by using the procedure that
follows:
Always wear powder free gloves or
finger cots when handling optics and
optic holders.
1. Release the cover glass door by
pushing the latch. See Figure 33.
2. Swing the cover slide door open by
pulling it. The spring in the door latch
will help push it open. See Figure 34.
Figure 34
For steps 3-10, see Figure 35.
3. Grasp the handle on the cover glass
holder and pull straight out to remove
the cover glass drawer from the head.
4. Close the sealed cover glass door
during service to keep contaminants
out.
