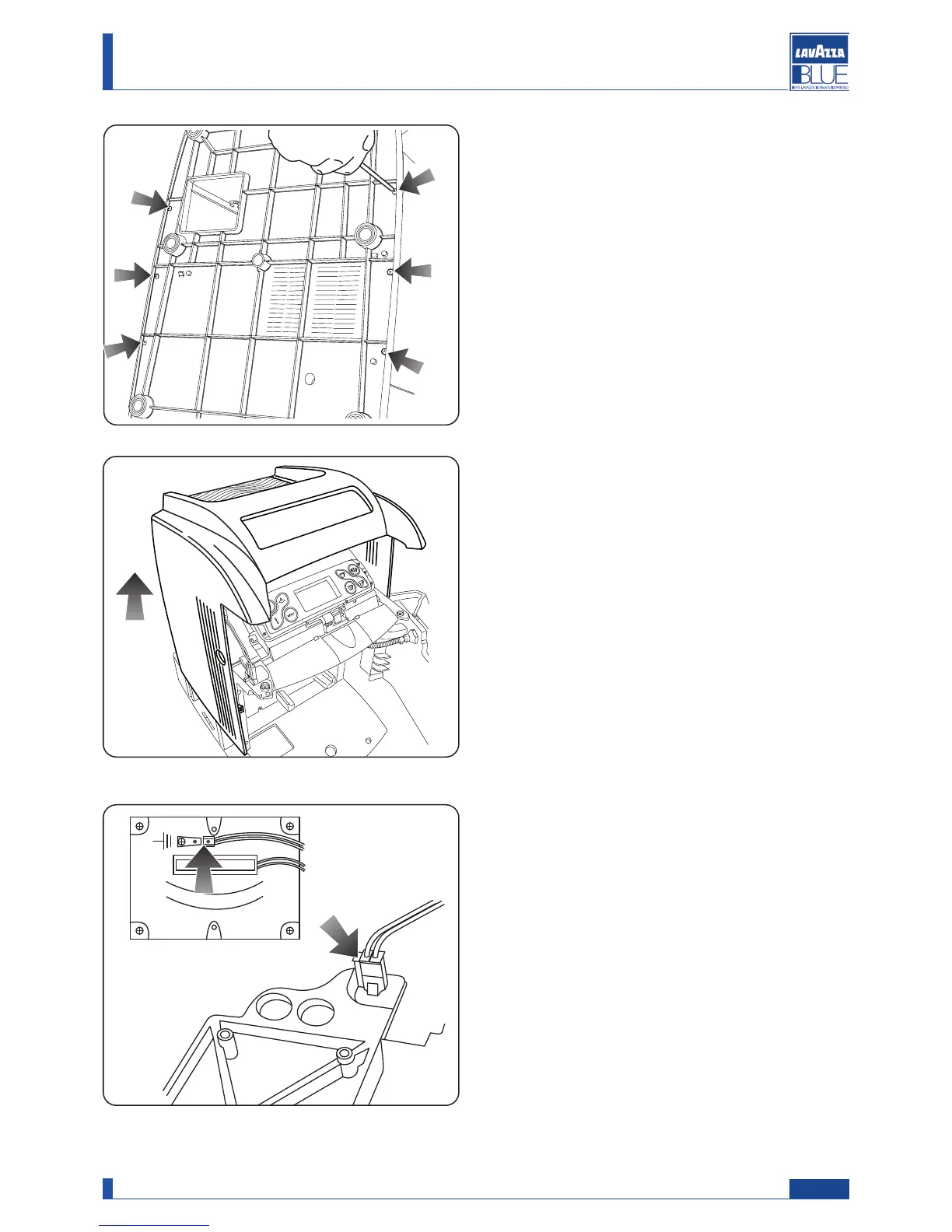

Loosen the indicated screws which fix the body to the
m
achine bottom.
Lift the body up gently, as indicated in the figure.
For the version equipped with cup warmer, remove the
power supply connector of the cup warmer and the
ground faston connector (now the body is disengaged).
39
Manual code 10083445 / Rel. 0.00 / April 2010
Maintenance manual for technical assistance LB 2300-2301-2302-2311-2312
