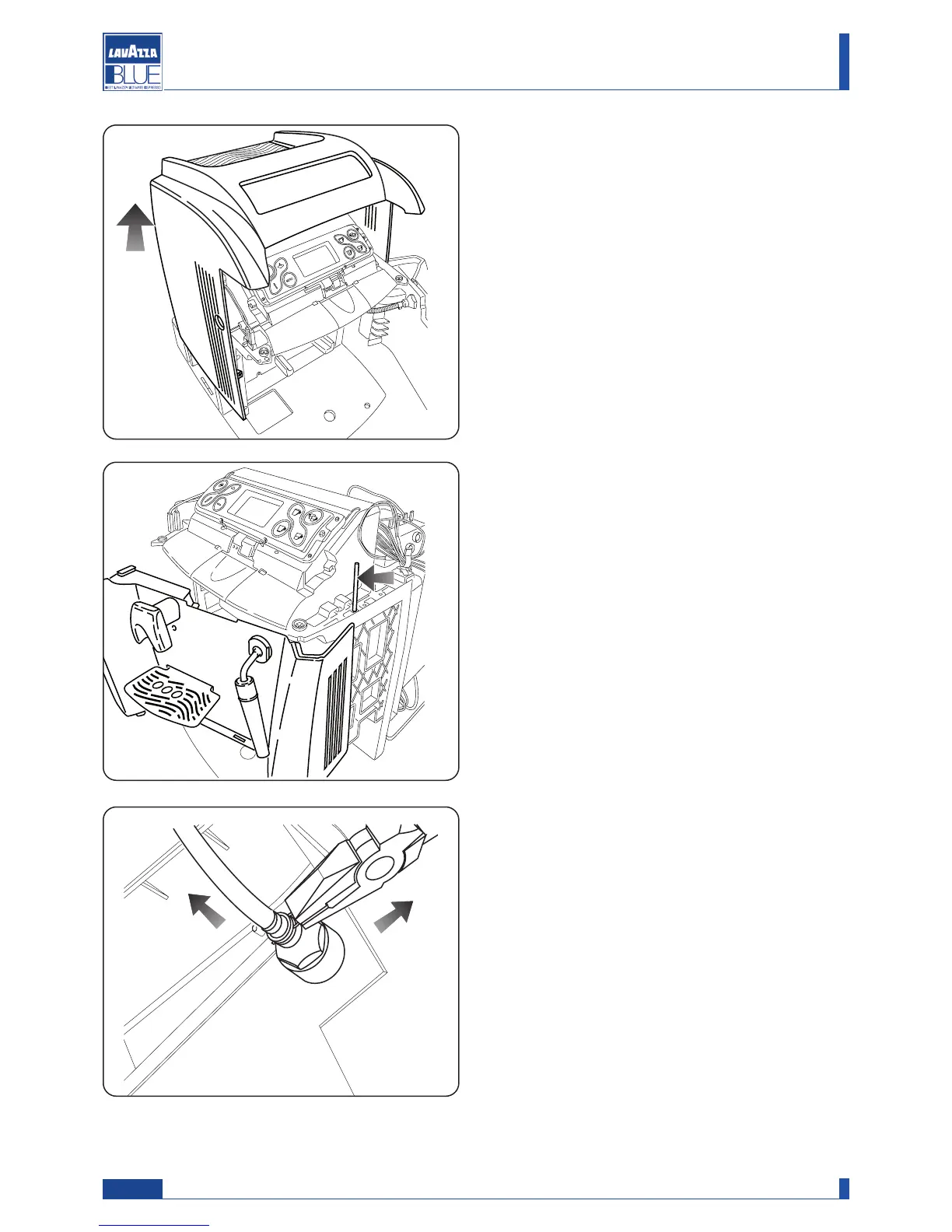

Extract the indicated pin with force to remove the front
panel.
Remove the clip which fixes the steam pipe to the
door and extracts the pipe from its seat.
When the connectors are removed extract the body
completely.
