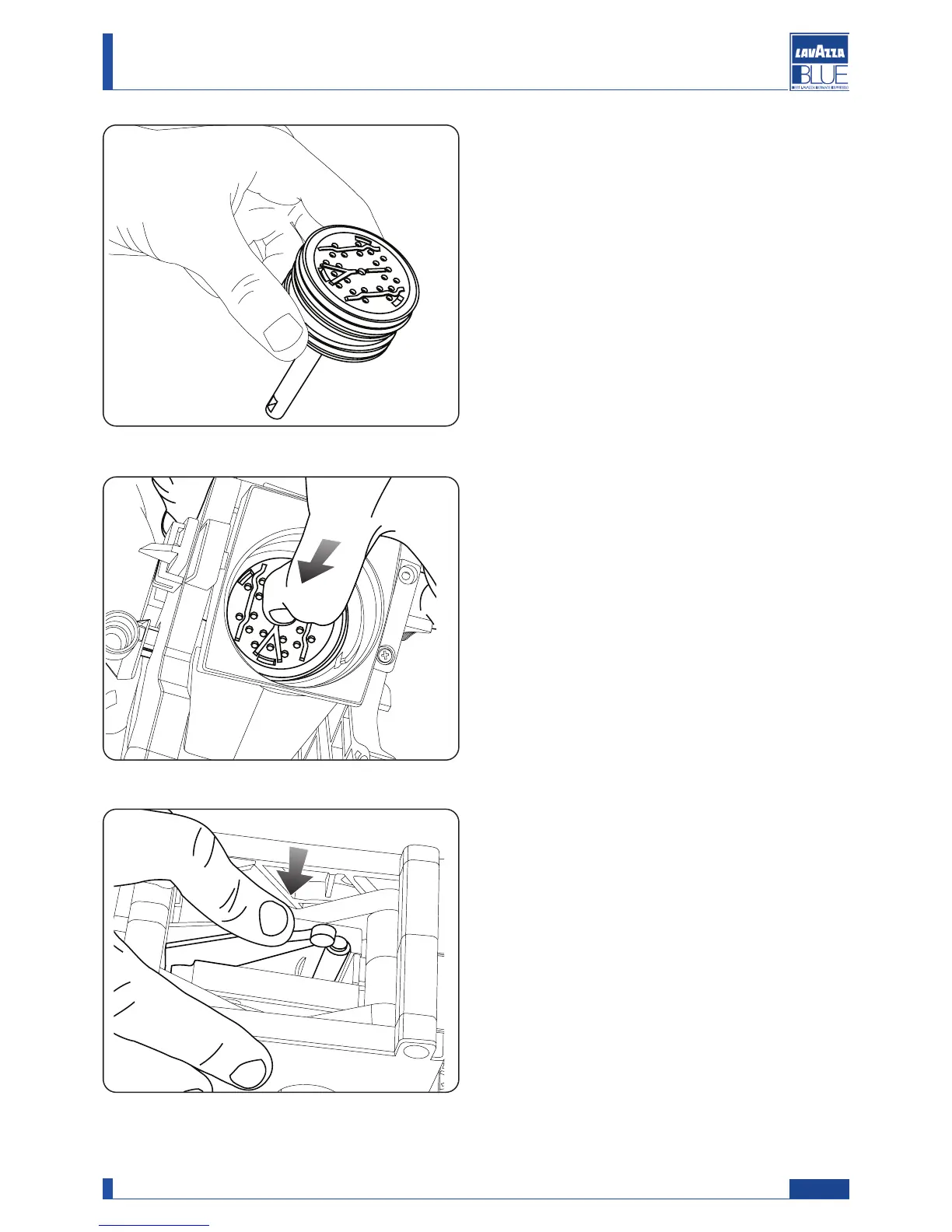

O
nce the piston is removed the gasket can be repla-
ced easily.
To mount the piston, insert it again in its position as
indicated in the figure.
Keeping pressed the piston, press the rod into the slit of
the piston until it is fixed in place.
61
Manual code 10083445 / Rel. 0.00 / April 2010
Maintenance manual for technical assistance LB 2300-2301-2302-2311-2312
