Chapter 6 Touch Screen
6.1 Program& Download
6.1.1 Wiring
The touch screen adopts 24VDC power supply. One programming cable and one communication
cable are needed for the touch screen.
Programming Cable: Connect the touch screen to the serial interface of the PC. With this cable,
user can download the edited interface program file from the PC to the touch screen.
Communication Cable: Connect the touch screen to the serial interface of MPC6575.

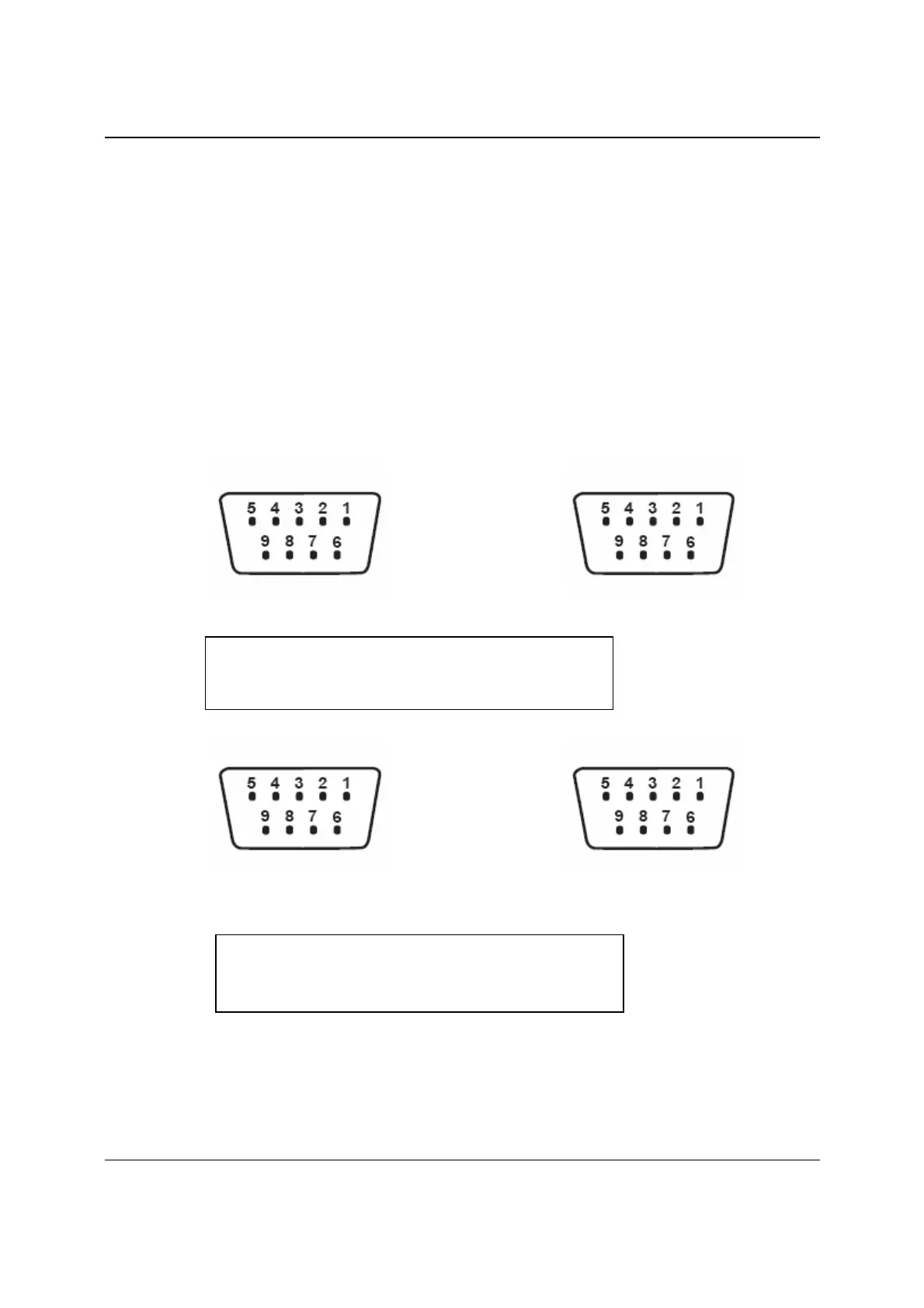

How to Make WeinView/EasyView Programming Cable
WeinView/EasyView COM1 in PC
DB 9 Connector (Female Header) DB 9 Connector (Female Header)
How to Make WeinView/EasyView Communication Cable
WeinView/EasyView J2 Port in MPC6575
DB 9 Connector (Male Header) DB 9 Connector (Male Header)
6.1.2 Download Touch Screen Program
User should download the touch screen program with EasyBuilder software. Install and run
EasyBuilder, and following window is to pop up:
7（TX）—————————————— 2（RX）
5
（GND）——————————————5（GND）
8
（RX）—————————————— 3（TX）
2（TX）—————————————— 3（RX）
5
（GND）——————————————5（GND）
3
（RX）—————————————— 2（TX）
