Leetro MPC6575 User Manual

MPC6575-Close-loop Laser Engraving &Cutting Controller (Rev. 1.0)
2
MPC6575
Chapter 2 Overview
2.1 MPC6575 Introduction
The MPC6575 controller is a stand-alone close-loop control card specially designed for the servo
control system of laser engraving and cutting machines. User can edit graphics, set parameters, and
optimize path to develop a process file using computer. Copy the process file to USB stick, and load
it to MPC6575 through the USB interface in the controller.
Then Run the processing work with PAD03
control panel.
MPC6575 can be connected to the computer with a USB communication cable for the convenience
of on-line debugging. The process file in the computer can also be directly loaded to the controller
through the USB communication cable.
2.2 Control System Configuration

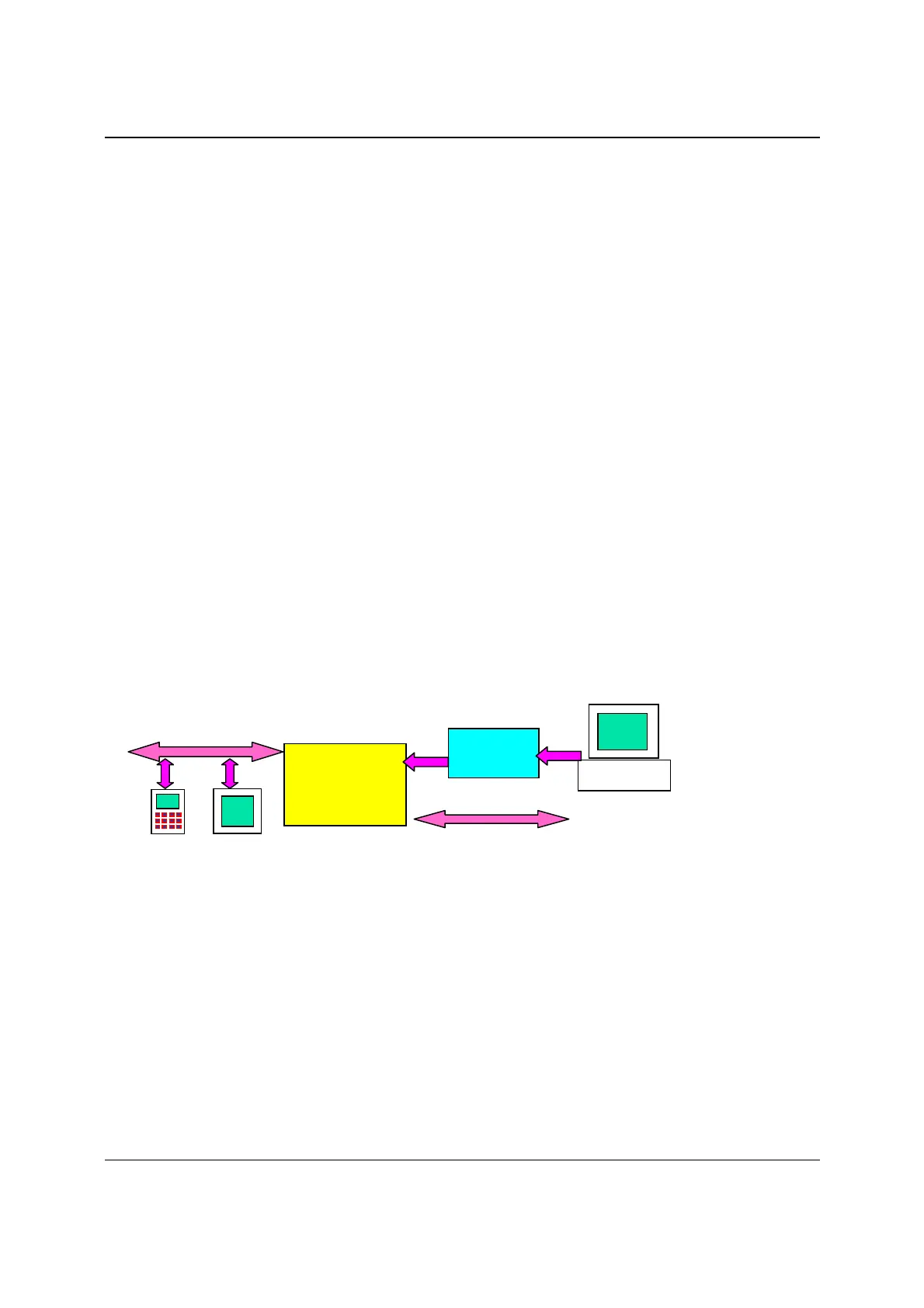

Refer to following diagram on MPC6575 close-loop motion control system:
Transfer process data
USB stick
USB communication cable
PAD03 or
Touch Screen
PC

Leetro MPC6575 Specifications

General

Brand	Leetro
Model	MPC6575
Category	Controller
Language	English
