Chapter 7 POP Text Display
7.1 Program & Download
7.1.1 Wiring
The text display adopts 24VDC power supply. One programming cable and one communication
cable are needed for the text display.
Programming Cable: Connect the text display to the serial interface of the PC. With this cable,
user can download the edited interface program file from the PC to the text display.
Communication Cable: Connect the text display to the serial interface of MPC6575.

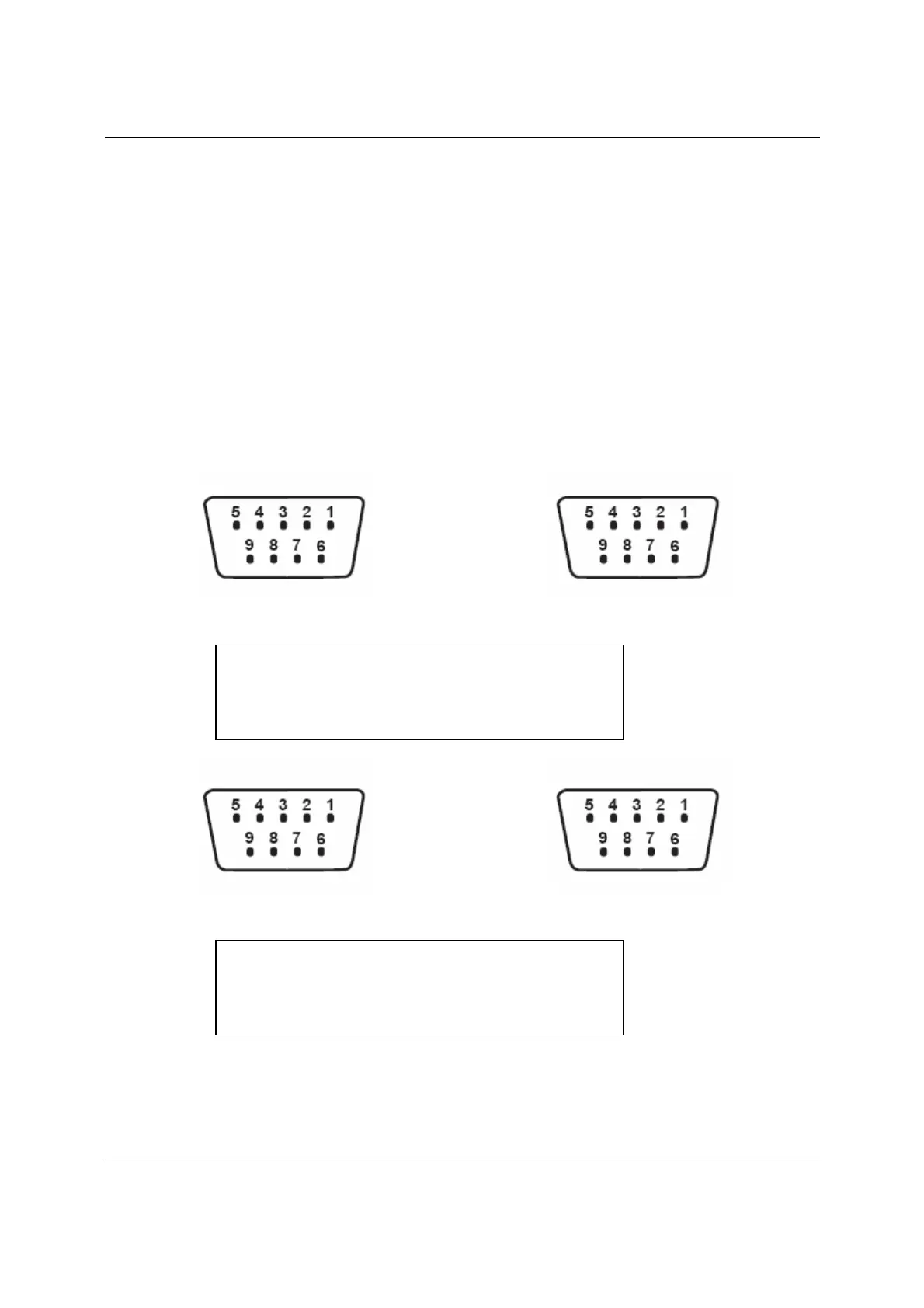

How to Make Text Display Programming Cable
Text Display COM1 in PC
DB 9 Connector (Female Header) DB 9 Connector (Female Header)
How to Make Text Display Communication Cable
Text Display J2 port in MPC6515
DB 9 Connector (Female Header) DB 9 Connector (Male Header)
7.1.2 Download Text Display Program
Run JB_HMI software (Provided by Text Display Supplier) to edit the text display. Click Open in
the user interface, and select and open the edited text display program file (in *.jb format).
2（RX）—————————————— 3（TX）
5
（GND）——————————————5（GND）
3
（TX）—————————————— 2（RX）
8
（CTS）——————————————7（RTS）
2（RX）—————————————— 2（TX）
5
（GND）——————————————5（GND）
3
（TX）—————————————— 3（RX）
