Leetro MPC6575 User Manual

Touch Screen
21
Press OK to enter the main interface.

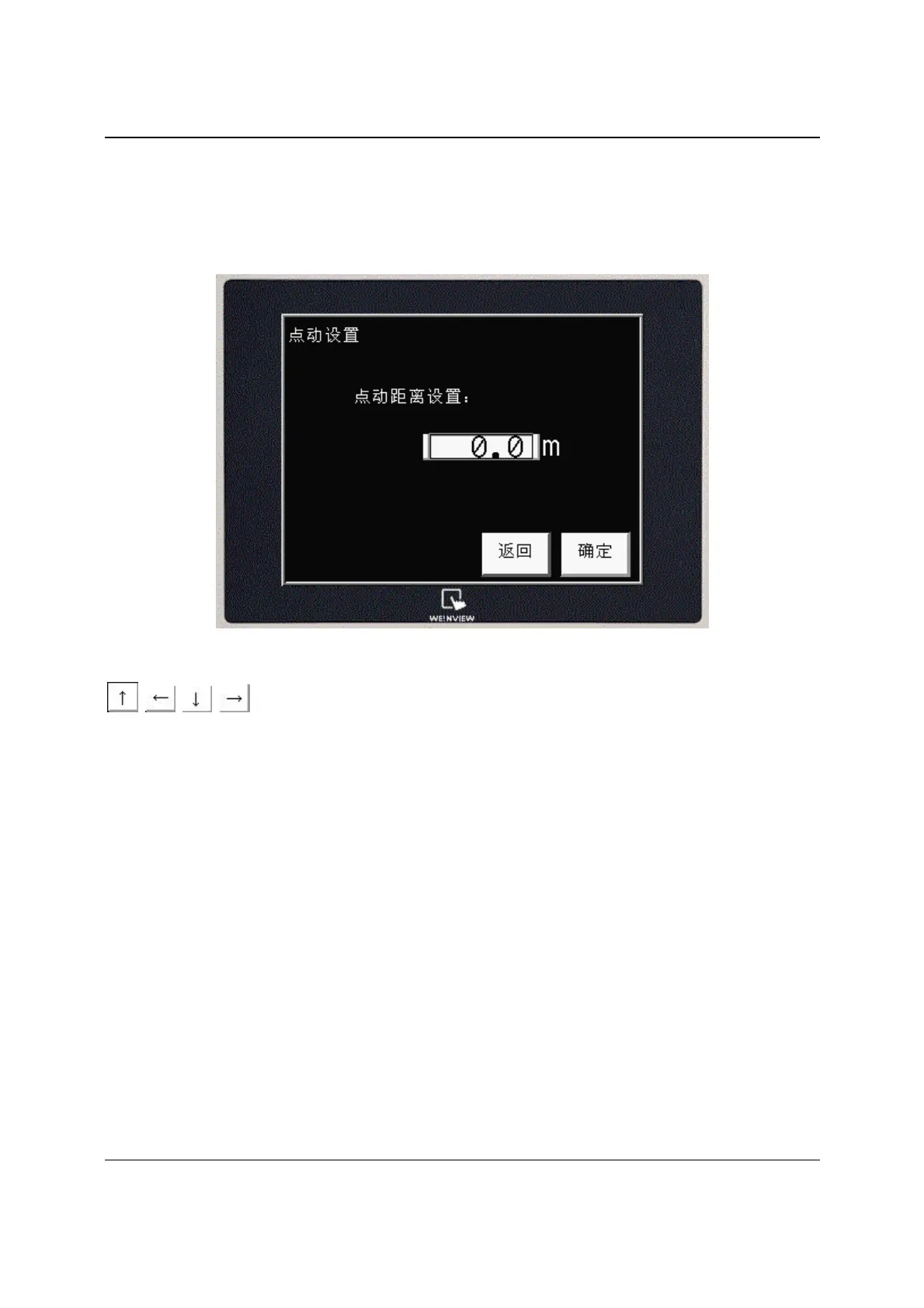

6.3.4 Jog Interface
Press the Jog Set button in the menu interface to enter the Jog Set interface.
Jog distance can be set in Jog Set interface.
If the jog distance is default 0.0mm (precision: 0.1mm), user can hold down the direction buttons
to move the laser, and loose the direction button to stop the laser. If the jog
distance is set to be 100.0mm, for example, each time the user press the direction button the laser
will move a distance of 100mm.
Press Esc to return to the menu interface.
Press OK to enter the main interface.
6.3.5 Main Interface
Press the Main Interface button in the menu interface can enter the main interface directly. User
can also press OK in the Laser interface and Jog interface to enter the main interface.
