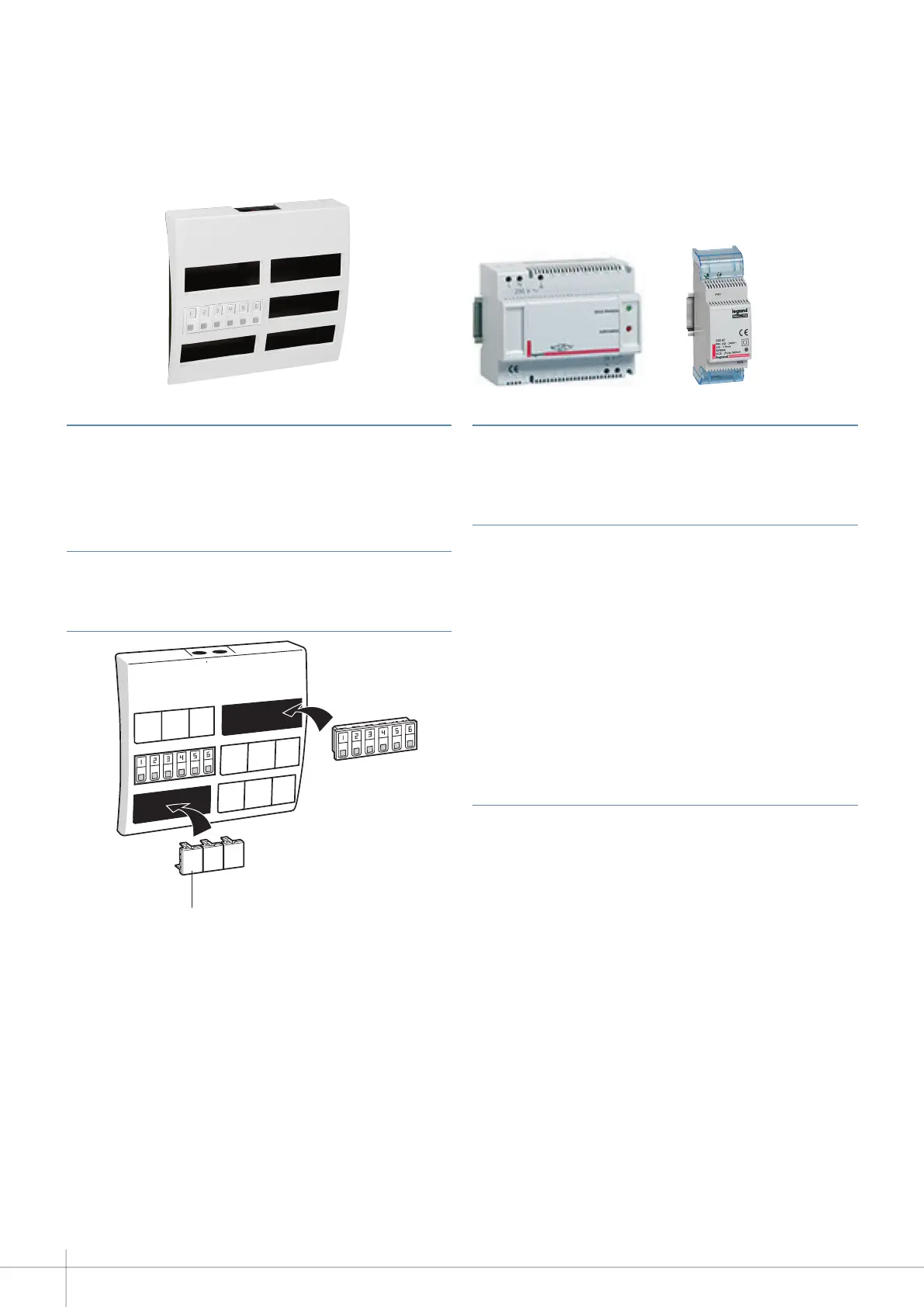

LEGRAND MOSAIC Series User Manual

14
Technical characteristics
n Supply voltage: 230 VA + 10% - 50/60 Hz
n Output voltage: 24 V=
n Max. current: 2 A
n Max. power: 48 W
n Operating temperature: 5 to 40°C
n Storage temperature: -20 to 70°C
n Protection index: IP30
n Size: 6 DIN modules
Cat. No. 0 782 09: Powers the system with SELV.
Recommendation: 1 power supply for 36 directions (corresponds
to 30% of simultaneous calls max.).
0 782 89/0 035 67 OR E49: POWER SUPPLIES
Cat. No. 0 035 67 or E49: Powers the solid state relay for
information transfer (indicator or buzzer).
Technical characteristics
n Supply voltage: 230 VA
n BUS output voltage: 27 V=
n Max. BUS current: 600 mA
n Max. power: 21.5 W
n Max. consumption: 26.8 W
n Operating temperature: 5 to 40°C
n Storage temperature: -20 to 70°C
n Protection index: IP20
n Size: 2 DIN modules
PRESENTATION AND INSTALLATION OF DEVICES
0 782 14: TABLE CONTROL UNIT
Technical characteristics
n Protection index: IP 40 with blanking plates
n Dimensions: 310 x 295 x 75 mm (36 modules)
Support frame which can take up to 6 display units
Cat.No.076660.
Makes it easier to run cables when installing several display units.
Fit blanking plates over unused positions.
Installation
Cat. No. 0 770 71

LEGRAND MOSAIC Series Specifications

General

Series	MOSAIC
Category	Switch
Brand	LEGRAND
Modular	Yes
Color	White
Material	Plastic
Protection Rating	IP20
Voltage Rating	250 V
Current Rating	10 A
Standards	IEC 60669-1
Installation	Flush mounting
Color Options	White, Black
