LEGRAND MOSAIC Series User Manual

10

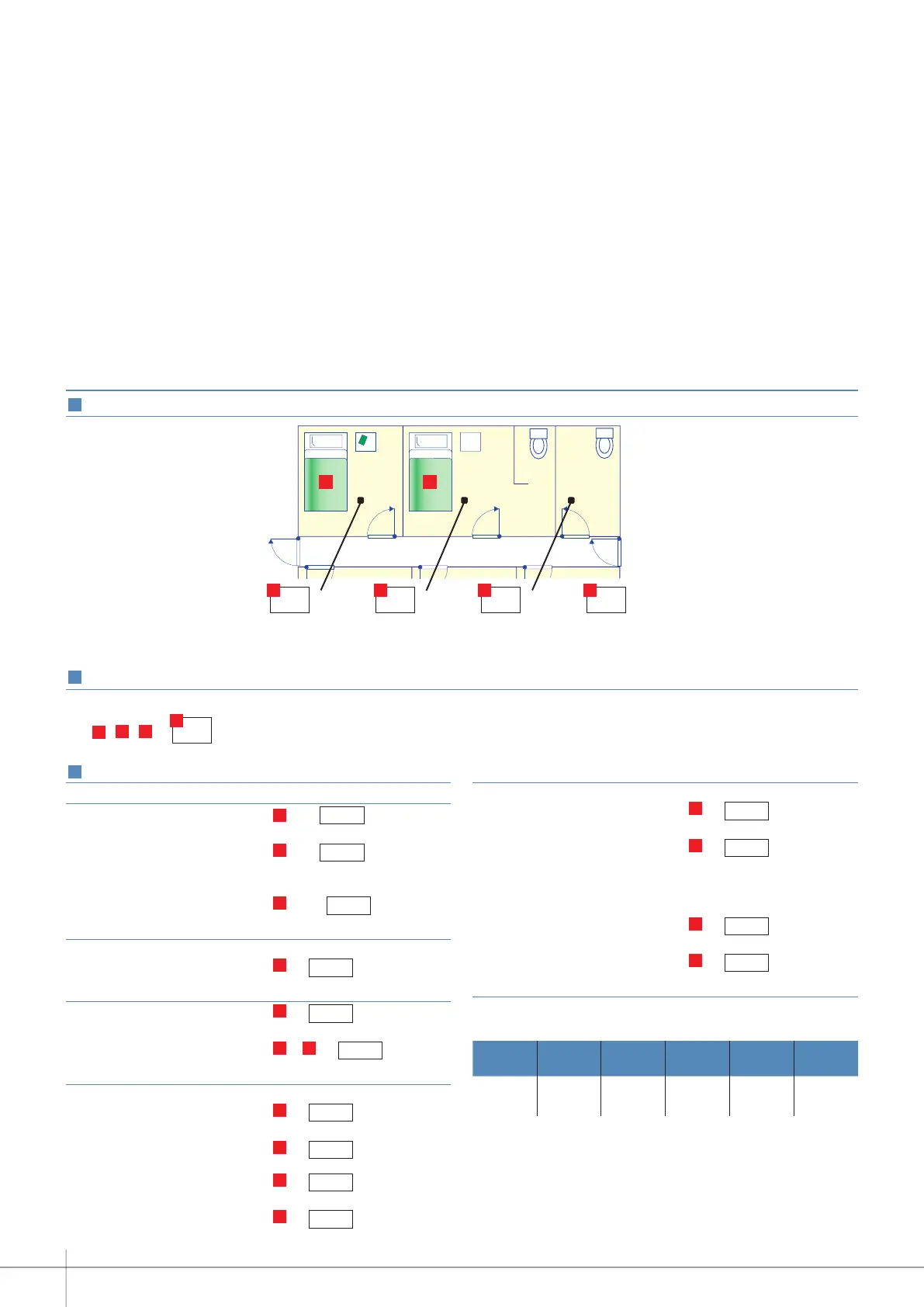

SELECTION GUIDE: HOW TO DRAW UP YOUR LIST OF EQUIPMENT
Gather the following information
1
Calculate the number of directions
To determine the number of directions, simply add:
2
3
Number of
separate
rooms
Number
of rooms
with WC
Number of
separate WCs
Number
of beds
D
D
A B C D
D
D
E
+ + =
B C
A
Draw up your list of equipment
Nurses' station and management equipment
Display unit Cat. No. 0 766 60 =
E
/6 or display units
Management module
Cat. No. 0 782 12 =
E
/3 or modules
Option:
Table control unit
Cat. No. 0 782 14 =
E
/36 or control units
Corridor equipment
Corridor overdoor light units
Cat. No. 0 766 72 =
E
or overdoor lights
Room/bathroom equipment
Door unit Cat. No. 0 782 04 =
E
or door units
Bathroom call unit
Cat. No. 0 766 64 =
B
+
C
or call units
Bed equipment
Socket for corded push-button
Cat. No. 0 766 63 =
D
or sockets
Corded push-button
Cat. No. 0 783 62 =
D
or corded buttons
OR
Magnetic socket Cat. No. 0 782 46 =
D
or sockets
Hand-held remote control unit
for call only Cat. No. 0 782 01 =
D
or hand-held
remote
control units
Bed equipment (continued)
OR
Magnetic socket Cat. No. 0 782 47 =
D
or sockets
Hand-held remote control unit for
call only Cat. Nos. 0 782 02/03 =
D
or hand-held
remote
control units
Option:
Shunt plug for biomedical
alarm Cat. No. 0 782 07 =
D
or plugs
Socket for biomedical alarm
Cat. No. 0 771 50 =
D
or sockets
Power supply:
Power supply Cat. No. 0 782 89
Number of power supplies to be calculated using the table below
0 782 04 0 766 72 0 766 64 0 782 01/
02/03
0 782 12 0 766 60
0.7 W 0.9 W 0.7 W 0.8 W 1 W 0.4 W per
direction
Recommendation: 1 power supply for 36 directions (corresponds to 30% of
simultaneous calls max.)
DESCRIPTION OF THE SYSTEM ARCHITECTURE

LEGRAND MOSAIC Series Specifications

General

Series	MOSAIC
Category	Switch
Brand	LEGRAND
Modular	Yes
Color	White
Material	Plastic
Protection Rating	IP20
Voltage Rating	250 V
Current Rating	10 A
Standards	IEC 60669-1
Installation	Flush mounting
Color Options	White, Black
