PRESENTATION AND INSTALLATION OF DEVICES

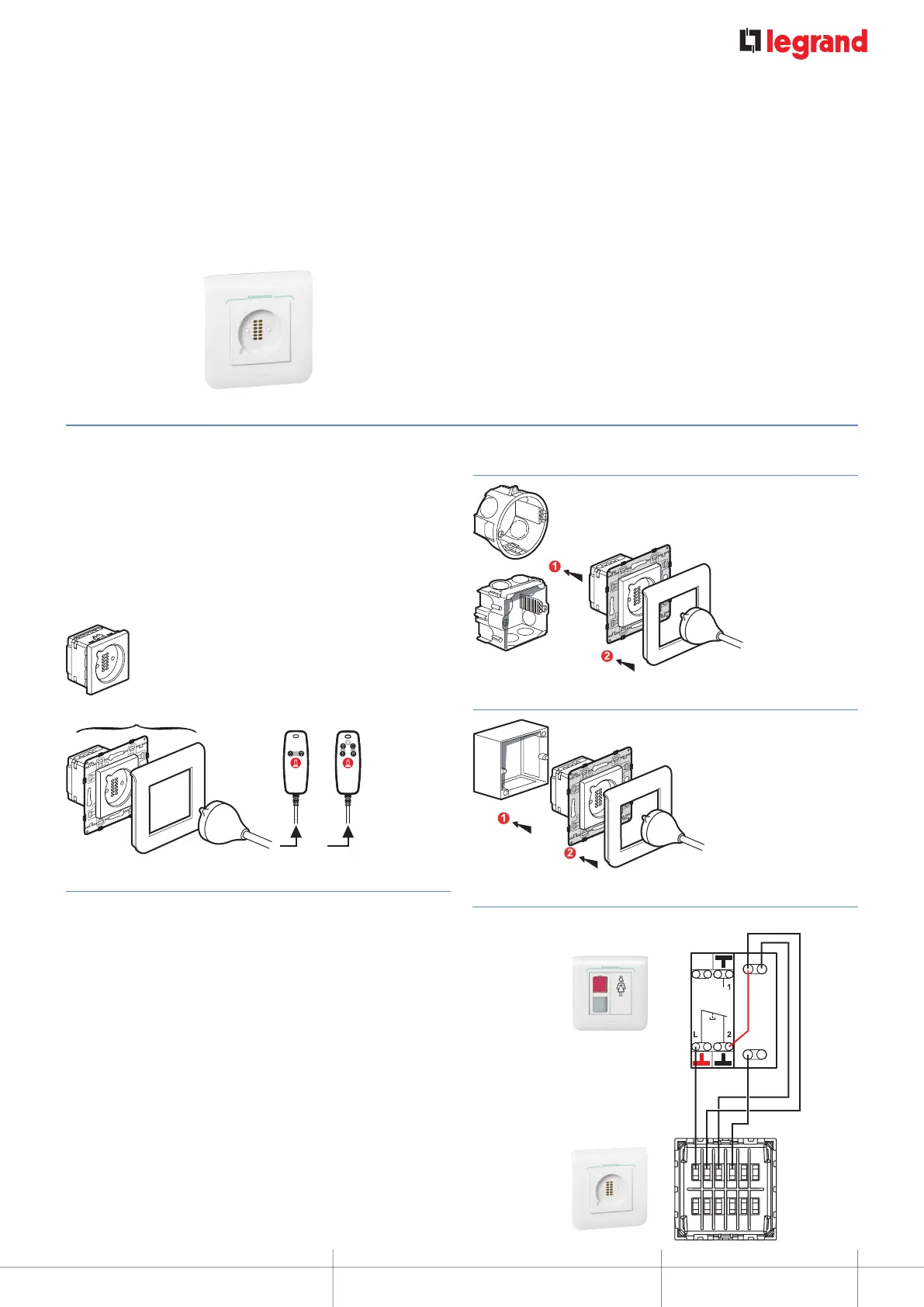

MOSAIC NURSE CALL UNIT
0 782 45/47: SOCKETS FOR HANDHELD REMOTE CONTROL UNITS
Technical characteristics
n Power supply:
- via the door unit for nurse calls
- via remote control module Cat. No. 0 783 77 or 0 783 78 or 0
783 79 for lighting and roller blinds
n Operating temperature: 5 to 40°C
n Storage temperature: -20 to 70°C
n Antimicrobial
n Protection index: IP40
n Dimensions:
- Cat. No. 0 782 45: 45 x 45 x 36 mm
- Cat. No. 0 782 47: 82 x 82 x 36 mm
n Installation:
- in 1-gang flush-mounting box (2 modules)
- on wall with surface-mounting box Cat. No. 0 802 81
Connection
Example: 1 bed in a room.
Flush-mounted wall installation with 1-gang flush-
mountingbox
Surface-mounted wall installation with box Cat. No. 0 802 81
Sockets Cat. Nos. 0 782 45 and 0 782 47 for hand-held remote
control units for calls and controls.
Magnetic connection between hand-held unit and socket: can be
ejected in any direction with pull-out force designed to avoid any
damage to the equipment.
Antimicrobial.
Indexed magnetic connection socket for hand-held remote control
unit Cat. Nos. 0 782 02 and 782 03.
R
W
12 11 10 987
123456
+-
0 782 47
0 782 45
0 782 03
0 782 02
Hand-held unit
socket
Cat. No. 0 782 47
Door unit
Cat. No. 0 782 04
R - Red LED indicator
W - White LED indicator
