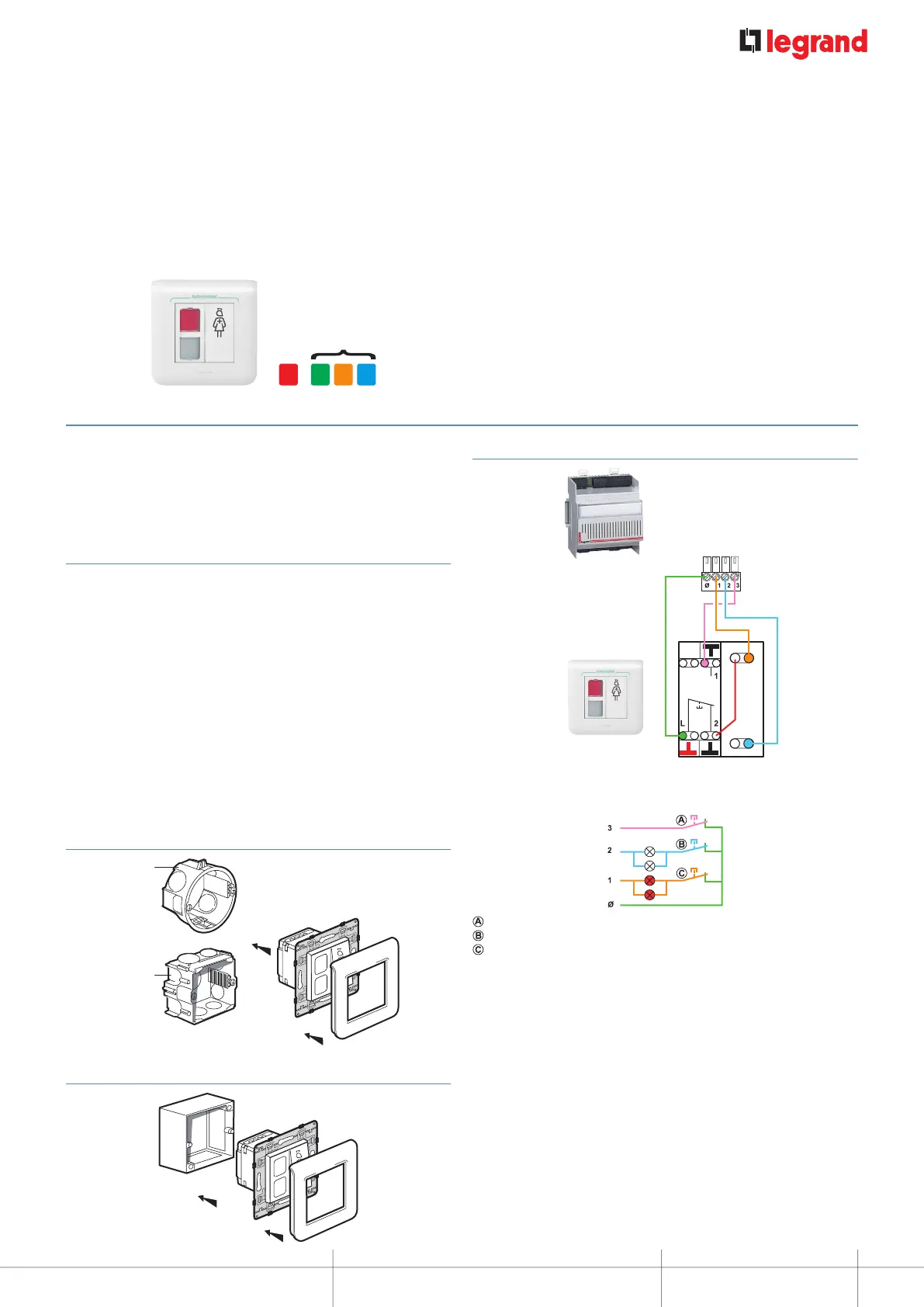

LEGRAND MOSAIC Series User Manual

15
PRESENTATION AND INSTALLATION OF DEVICES
MOSAIC NURSE CALL UNIT
Antimicrobial




Antimicrobial
R
W
0 782 04: DOOR UNIT
R - Red LED indicator
W - White LED indicator
- Bathroom or biomedical pull cord
- Corded push-button or hand-held remote control
- Door unit
Technical characteristics
n Power supply: via management module Cat. No. 0 782 12
n Operating temperature: 5 to 40°C
n Storage temperature: -20 to 70°C
n Antimicrobial
n Protection index: IP20
n Dimensions (H x W x D): 82 x 82 x 43 mm
n Installation:
- in 1-gang (2 modules) flush-mounting box Cat. No. 0 800 41
or Cat. No. 0 801 41 (concrete)
- in surface-mounting box Cat. No. 0 802 81 (IP 20)
n LED indicators with resistor in parallel:
- Impedance: 1 kΩ
- DC voltage: 9 to 31 V
Connection (from 15W22)
Flush-mounted wall installation
Surface-mounted wall installation
Consisting of 2 white indicators to be covered with stickers (red,
green, orange or blue) and a push-button for acknowledging the
call and nurse presence.
Recommendation: Place the red sticker over the call indicator
(top indicator).
Cat. No. 0 800 41
Cat. No. 0 801 41
Door unit
Cat. No. 0 782 04
Management
module
Cat. No. 0 782 12
Not used
