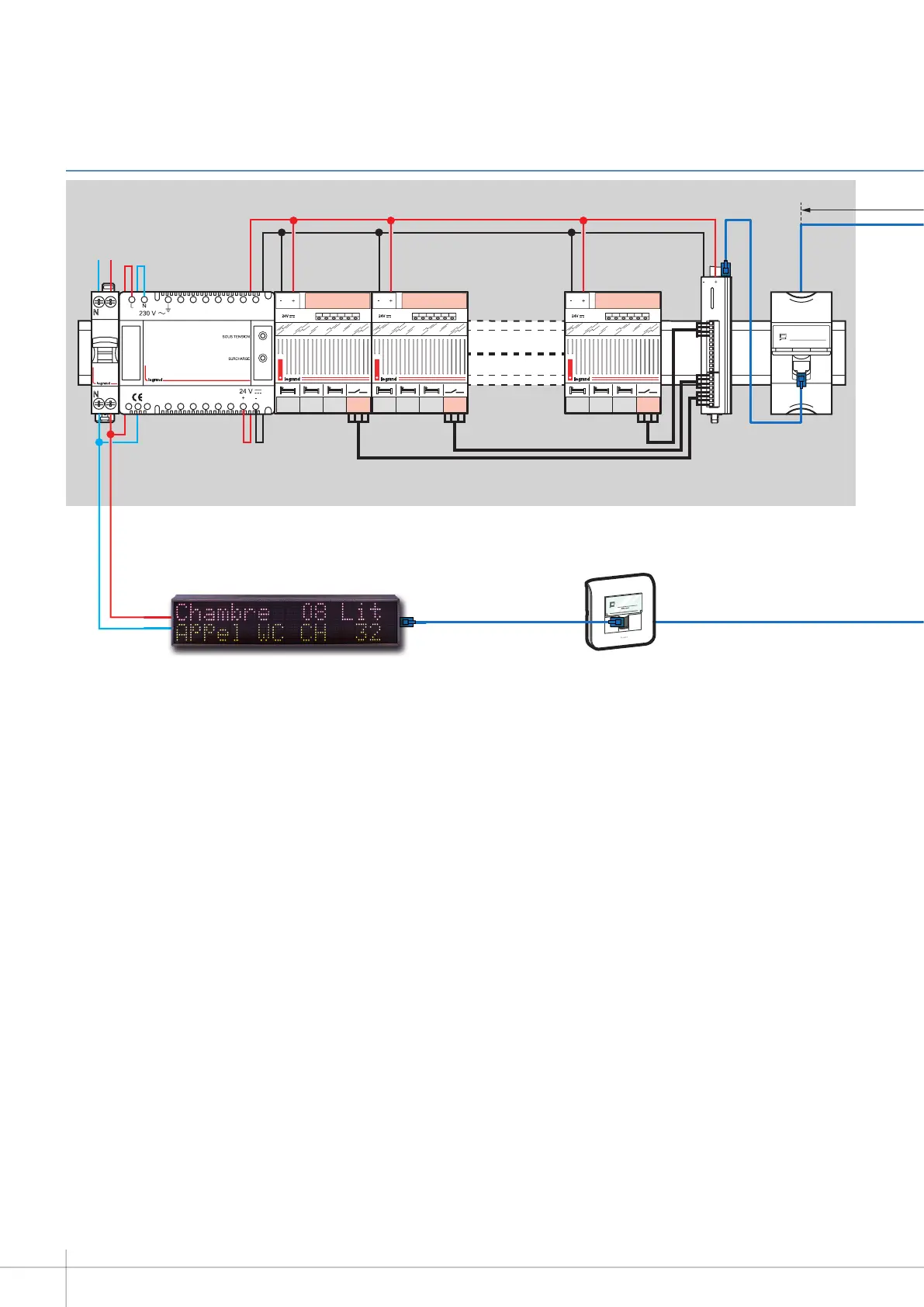

230 V CABLE FOR PATIENT CALL + CORRIDOR DISPLAY UNITS AND IP NETWORK CABLING
Ward cabinet
0 782 89 0 782 12
24 V
0 782 12
5 management modules max.
0 782 12
*
1 unit
16 I/O to IP
Cat. 5e FTP
patch cord
4 129 50
+ 0 765 65
NL
10 A
Cat. 5e FTP
patch cord
Mosaic RJ45 socket
Cat. No. 0 765 63
FTP patch cord Cat. 5e
Autocom cabinet
Telephone coupler
with xed IP address
PABX/IPBX
RS232
}
*
Volt-free contact interface module with 16 I/O to IP.
Supp
ly with 24 V or PoE (check the power supply power rating).
Main cross-connect
cabinet
ELV equipment room
90 m max.
NURSE CALL UNIT WIRING MOSAIC
