LEGRAND MOSAIC Series User Manual

16
R
W
R
R
W
R

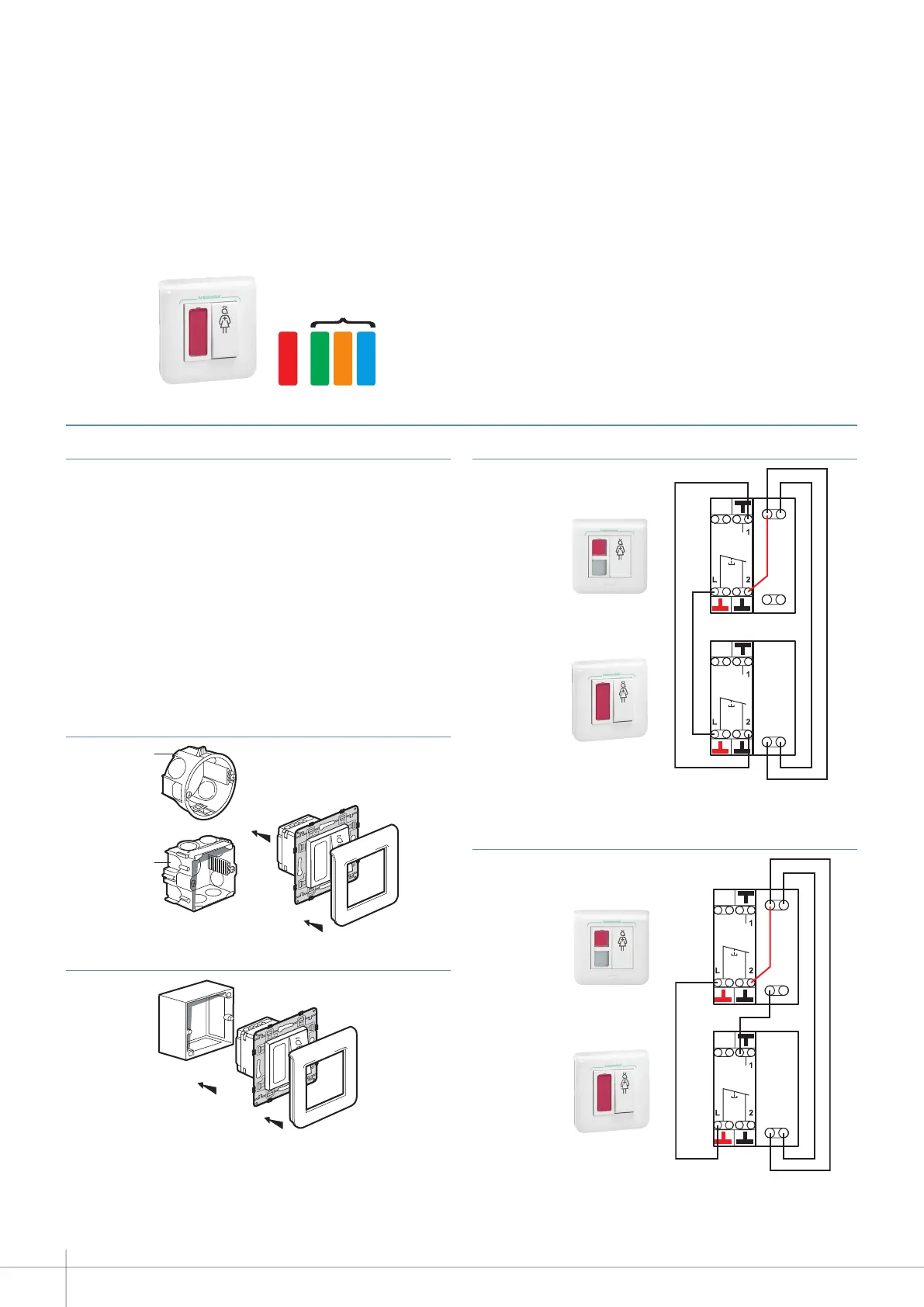

0 766 85: BATHROOM CALL UNITS OR CALL BUTTON
Technical characteristics
n Power supply: via management module Cat. No. 0 782 12
n Operating temperature: 5 to 40°C
n Storage temperature: -20 to 70°C
n Antimicrobial
n Protection index: IP20
n Dimensions (H x W x D): 82 x 82 x 43 mm
n Installation:
- in 1-gang (2 modules) flush-mounting box Cat. No. 0 800 41 or
Cat. No. 0 801 41 (concrete)
- in surface-mounting box Cat. No. 0 802 81 (IP 20)
Recommendation: Place the red sticker over the call indicator (top
indicator).
Bathroom call button connection (from 15W22)
Bedroom call button connection (from 15W22)
Flush-mounted wall installation
Surface-mounted wall installation
Cat. No. 0 800 41
Cat. No. 0 801 41


Antimicrobial
Antimicrobial


PRESENTATION AND INSTALLATION OF DEVICES
Door unit
Cat. No. 0 782 04
Bathroom call
button
Cat. No. 0 766 85
Bedroom call
button
Cat. No. 0 766 85
Door unit
Cat. No. 0 782 04
R - Red LED indicator
W - White LED indicator
R - Red LED indicator
W - White LED indicator
Not used
