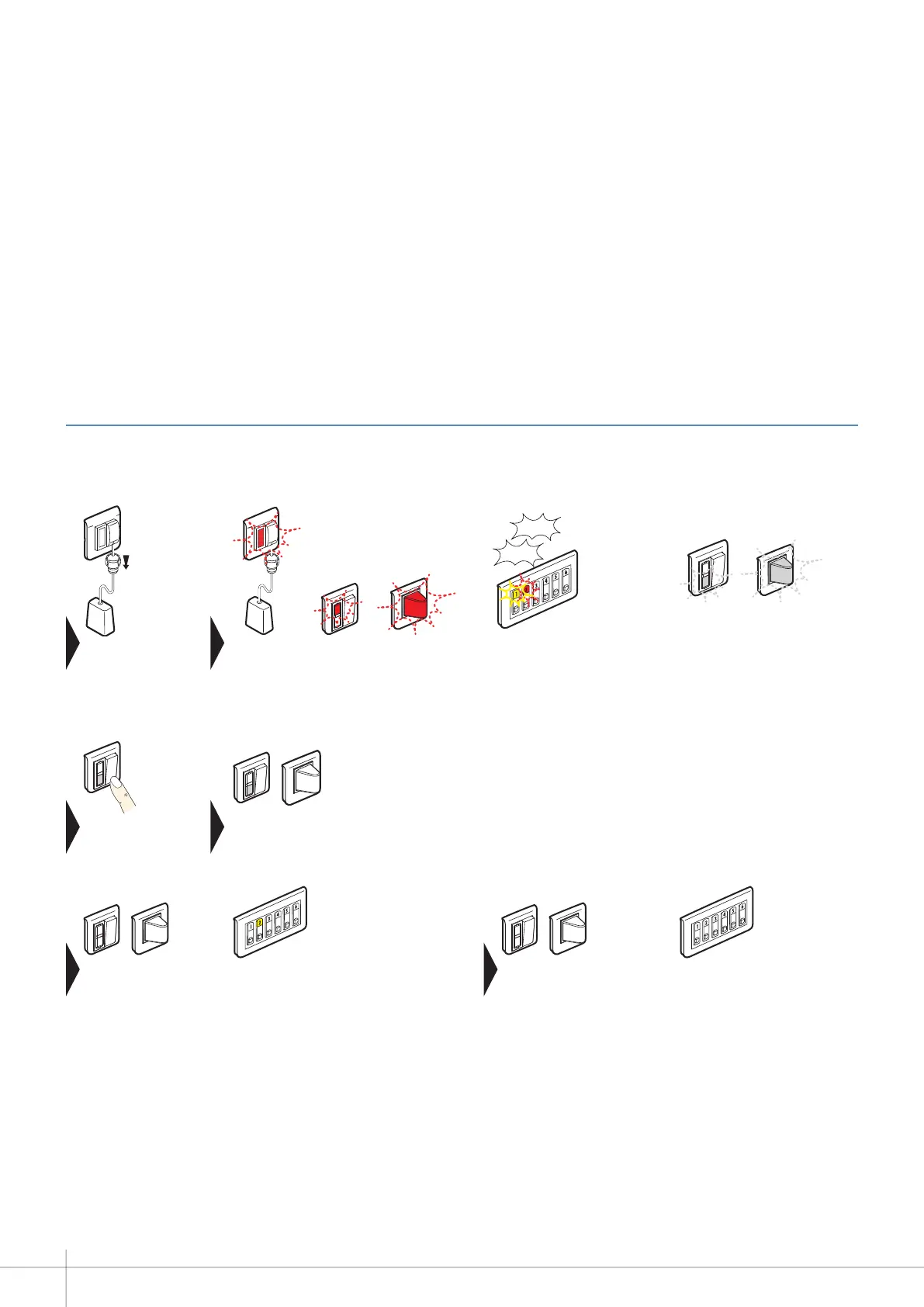

NURSE PRESENT + CALL FROM ANOTHER BATHROOM
3 - Another patient calls from bathroom 2
BEEEP
BEEEP
The patient calls
from bathroom 2 by
pulling the cord.
The door unit indicator, the indicator in
the bathroom and the corridor overdoor
light flash red quickly.
In the nurses' station, the
room number is displayed,
the indicator flashes red
quickly and the buzzer beeps
quickly.
In room 1 (and in the other
rooms in the ward where a
nurse is present):
the door unit indicators and
corridor overdoor lights
flash white quickly.
On entering room 2,
the nurse presses
the door unit push-
button.
In room 1 (and in the other rooms in the
ward where a nurse is present): the door
unit indicators and corridor overdoor
lights stop flashing.
On leaving room 1,
nurse 1 presses the
door unit push-
button and clears
the call.
All the indicators
and the overdoor
light go out.
In the nurses' station, room number1
stops flashing and returns to a steady
yellow light.
On leaving room 2,
nurse 2 presses the door
unit push-button and
clears the call.
All the indicators and the
overdoor light go out.
In the nurses' station,
room number 2 goes out.
1 - Patient calls from room 1
2 - Nurse present in room 1
1
3 4
2
5 6
