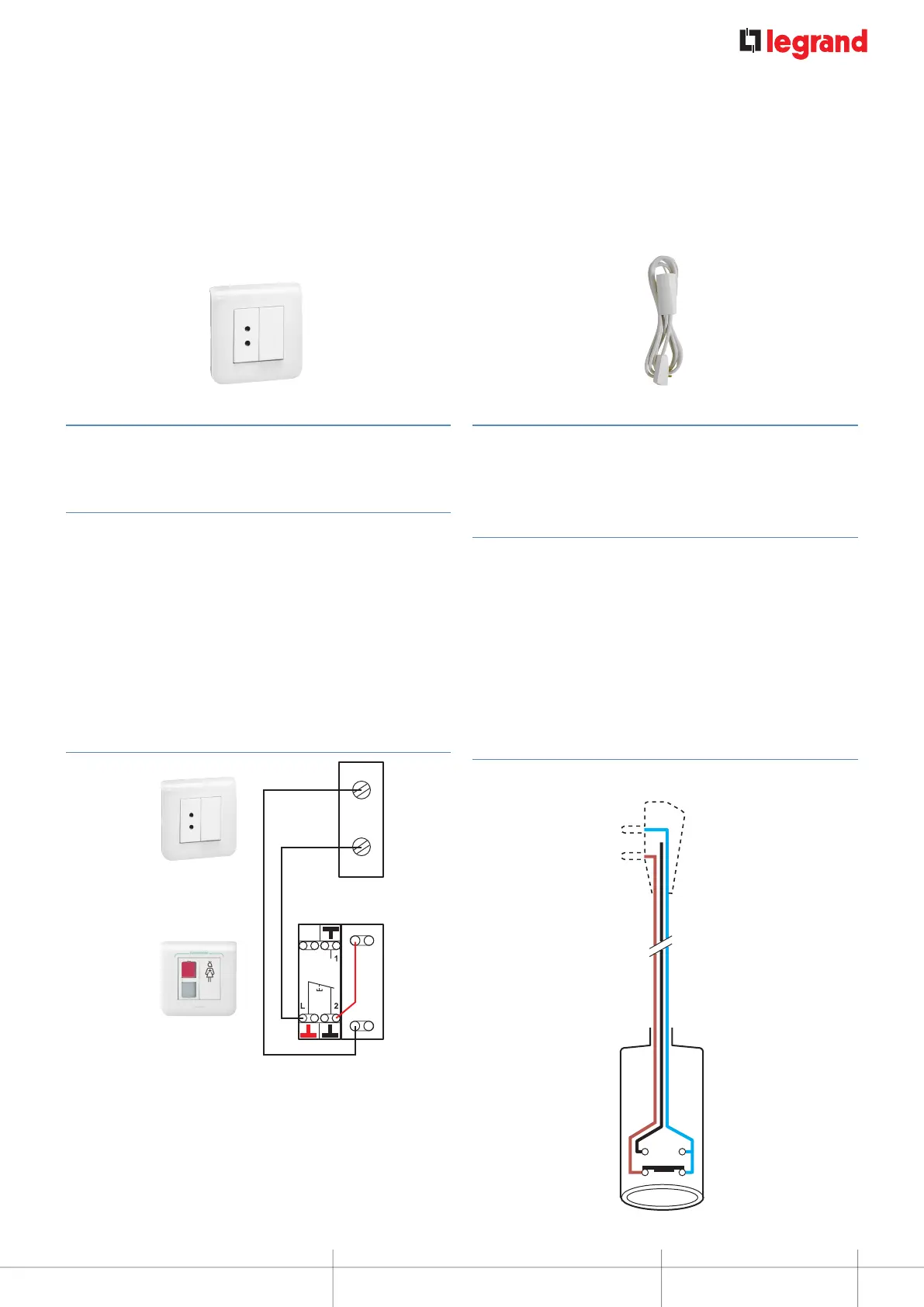

PRESENTATION AND INSTALLATION OF DEVICES
MOSAIC NURSE CALL UNIT
0 766 63: SOCKET FOR CORDED PUSHBUTTON
Technical characteristics
n Power supply: via management module Cat. No. 0 782 12
n Operating temperature: 5 to 40°C
n Storage temperature: -20 to 70°C
n Protection index: IP20
n Dimensions: 82 x 82 x 36 mm
n Installation:
- in 1-gang (2 modules) flush-mounting box Cat. No. 0 800 41 or
Cat. No. 0 801 41 (concrete)
- on the wall with surface-mounting box Cat. No. 0 802 81
n 12 mm fixing centres
Technical characteristics
n Power supply: via socket for corded push-button
n Operating temperature: 5 to 40°C
n Storage temperature: -20 to 70°C
n Protection index: IP20
n Cord length: 2 m
n Ejectable from 45° angle
n Factory-fitted NC contact.
NO contact possible by replacing the brown wire in the plug with
the black wire.
Connection
Socket for corded push-button or biomedical alarm.
Supplied on 2-module plate with blanking plate.
Allows patients to call a nurse via the door unit.
For use in conjunction with socket Cat. No. 0 766 63.
With 12 mm fixing centre plug for 2P socket Cat. No. 0 771 50.
Socket for
corded push-
button
Cat. No. 0 766 63
0 783 62: CORDED PUSHBUTTON
R
W
Conductor marking
Closed in rest mode
Factory wiring
Connect
blue and
brown
Door unit
Cat. No. 0 782 04
R - Red LED indicator
W - White LED indicator
