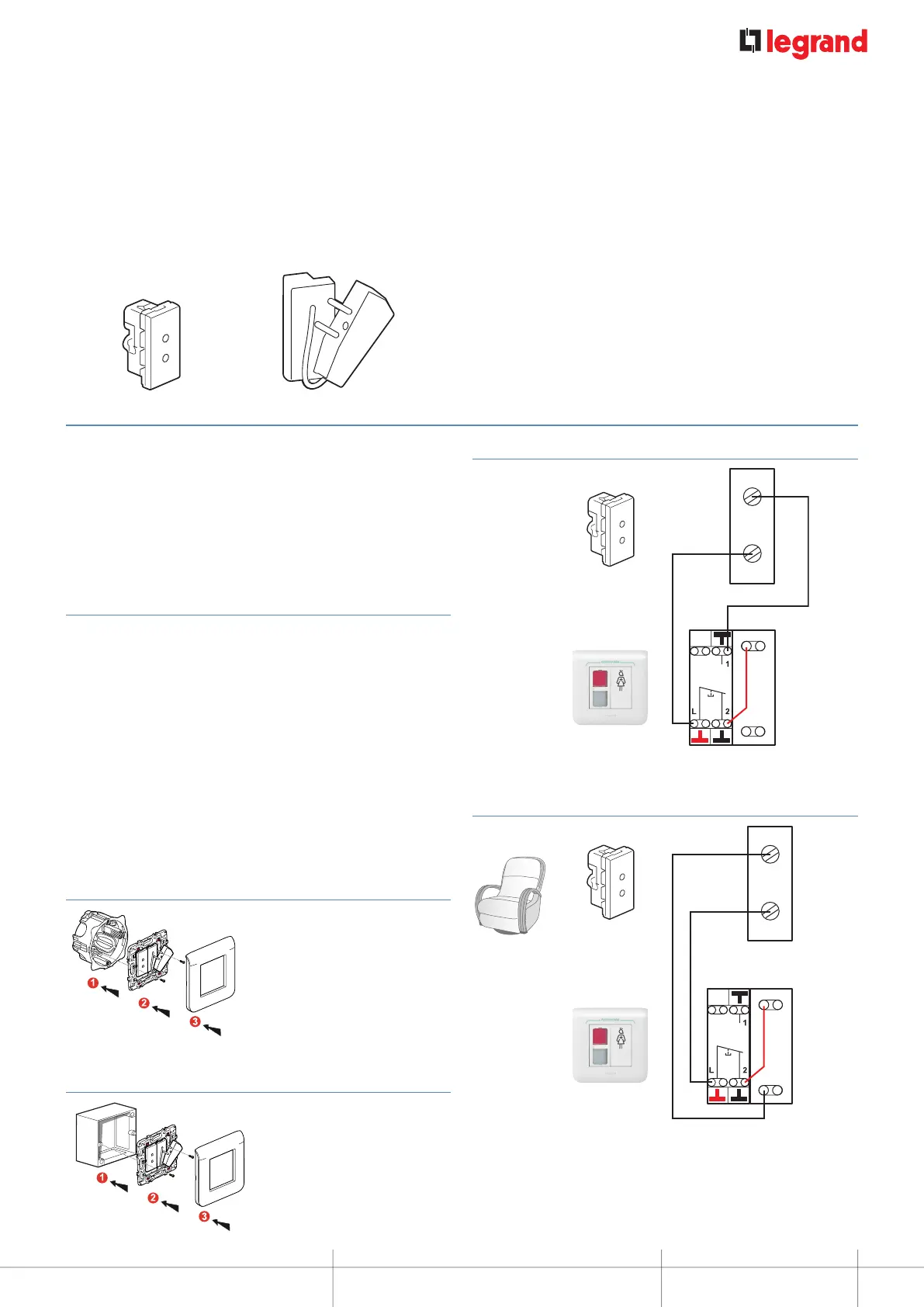

PRESENTATION AND INSTALLATION OF DEVICES
MOSAIC NURSE CALL UNIT
0 771 50 + 0 782 07: BIOMEDICAL CALL PLUG AND SOCKET
Technical characteristics
n Power supply: via door unit Cat. No. 0 782 04
n Operating temperature: 5 to 40°C
n Storage temperature: -20 to 70°C
n Protection index: IP20
n Overall dimensions (H x W): 45 x 22.5 mm
n Installation:
- in 1-gang flush-mounting box with universal Batibox support
Cat. No. 0 802 51
- surface-mounted with box Cat. No. 0 802 81 and universal
Batibox support Cat. No. 0 802 51
- can be installed in trunking, or in bedhead strips or trunking
units
Flush-mounted wall installation in 1-gang
flush-mounting box with support Cat. No. 0 802 51
Flush-mounted wall installation in 1-gang
flush-mounting box with support Cat. No. 0 802 51
Biomedical socket connection (emergency call)
Armchair socket connection (normal call)
Signals the end of a cycle via an alarm on the nurse call system.
For connection to portable electrical medical devices such as
syringe pumps, respirators, etc.
Comprises:
- Socket Cat. No. 0 771 50
- Shunt plug Cat. No. 0 782 07:
For biomedical alarm standby.
Used with socket Cat. No. 0 771 50.
R
B
+
Door unit
Cat. No. 0 782 04
Door unit
Cat. No. 0 782 04
Biomedical socket
Cat. No. 0 771 50
R
W
R - Red LED indicator
W - White LED indicator
R - Red LED indicator
W - White LED indicator
Armchair socket
Cat. No. 0 771 50
