LEGRAND MOSAIC Series User Manual

25
PRESENTATION AND INSTALLATION OF DEVICES
MOSAIC NURSE CALL UNIT

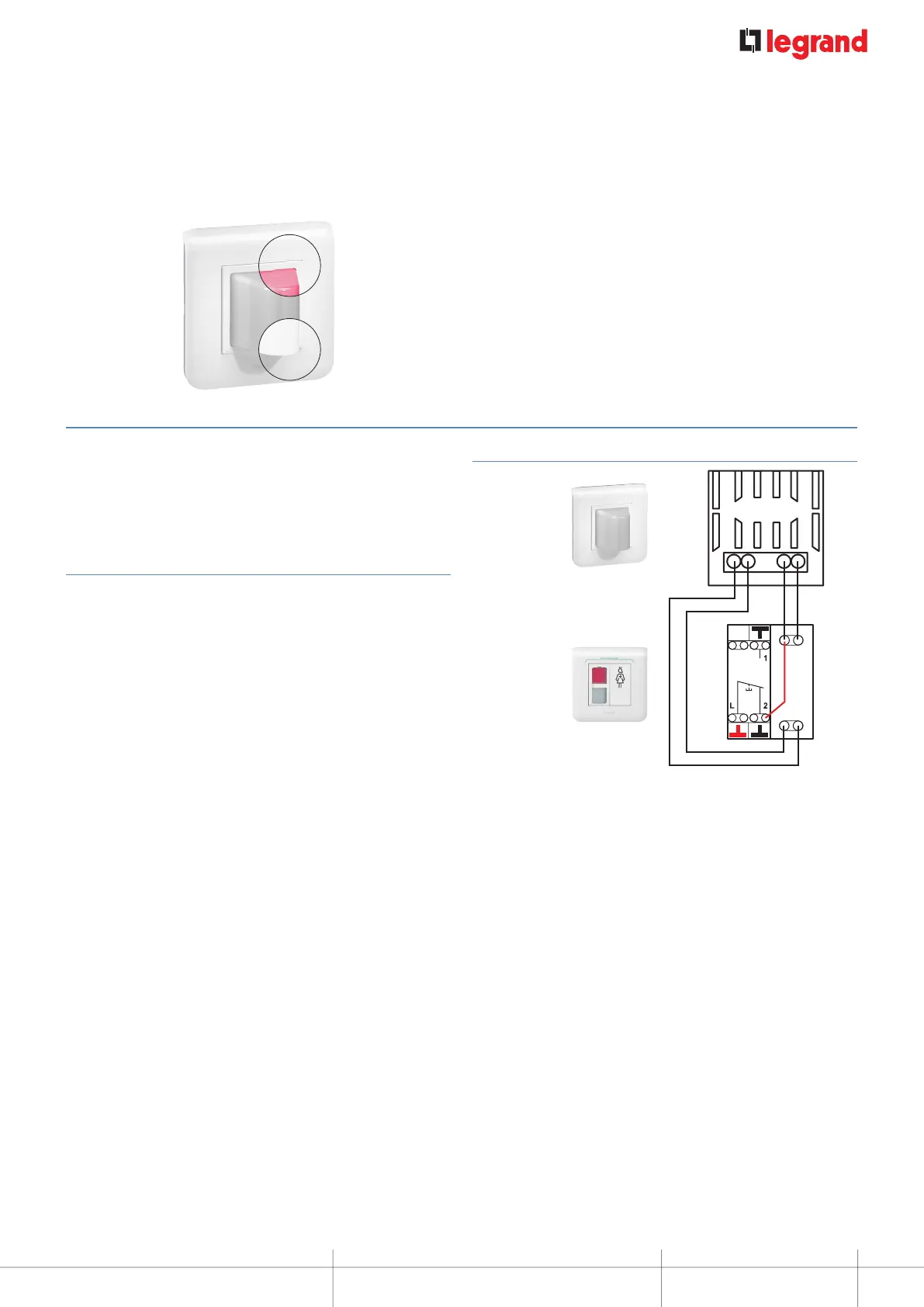

0 766 72: DOUBLE DISPLAY CORRIDOR OVERDOOR LIGHT UNIT
Double indicator (red/white).
Displays calls and nurse presence in the corridor.
With long-life LEDs.
Caution: only this catalogue number is compatible with the
Mosaic system.
R
B
RB
Connection
Corridor overdoor
light unit
Cat. No. 0 766 72
Technical characteristics
n Power supply: via door unit Cat. No. 0 782 04
n Consumption: 1.2 W
n Operating temperature: 5 to 40°C
n Storage temperature: -20 to 70°C
n Protection index: IP20
n Dimensions: 82 x 82 x 43 mm
n Installation:
- surface-mounted with box Cat. No. 0 802 81
- flush-mounted in 1-gang (2 modules) flush-mounting box
depth 40 mm Cat No. 0 819 41 or 0 801 41
Door unit
Cat. No. 0 782 04
R - Red LED indicator
W - White LED indicator
