PRESENTATION AND INSTALLATION OF DEVICES

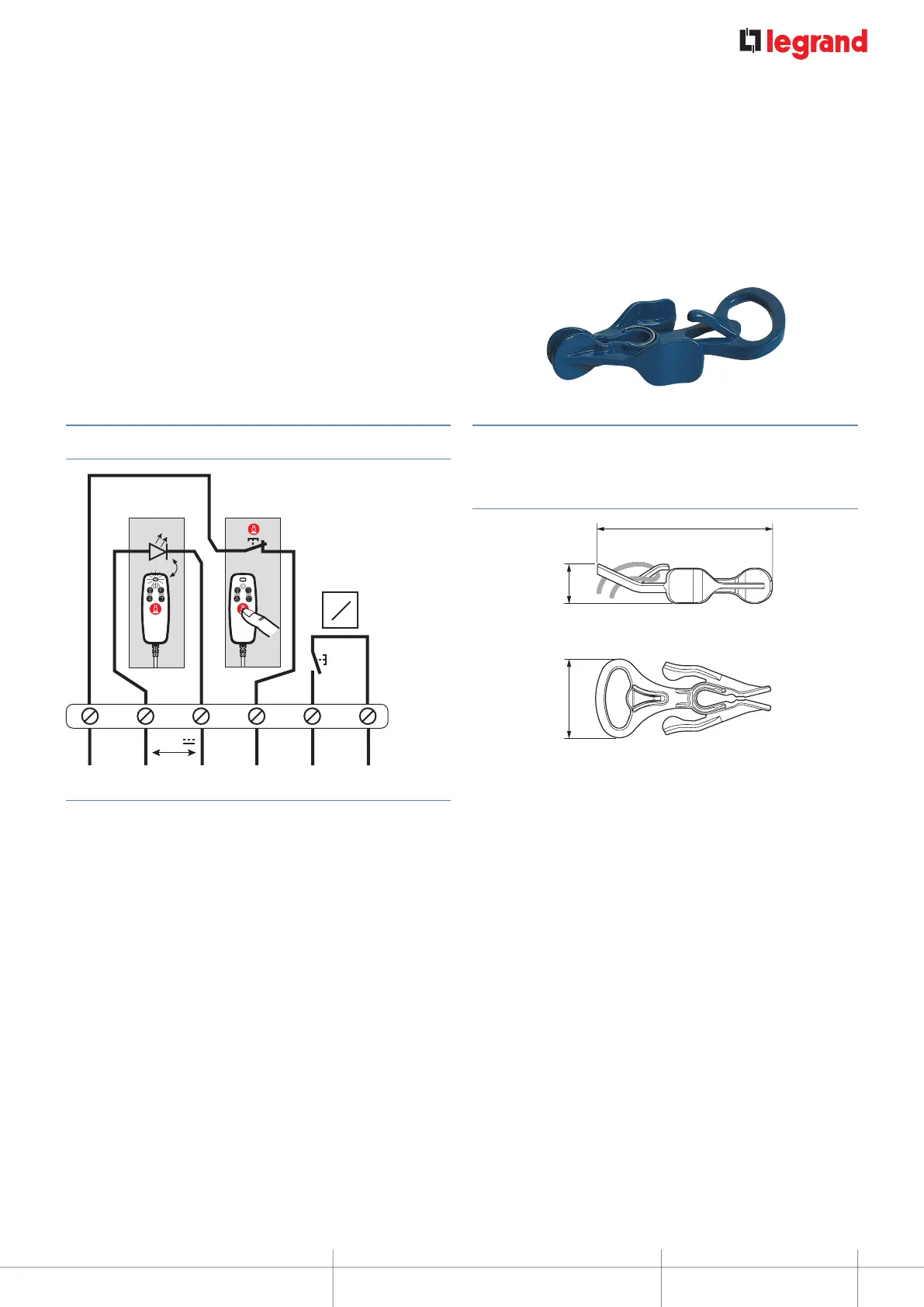

MOSAIC NURSE CALL UNIT
Technical characteristics
n Power supply: via sockets for hand-held remote control units
n Operating temperature: 5 to 40°C
n Storage temperature: -20 to 70°C
n Antimicrobial
n Protection index: IP 67 (without plug)
n Cord length: 2.5 m
n Can be fixed or held in place with clamp Cat. No. 0 782 43
n LED indicators with resistor in parallel:
- Impedance: 12.45 kΩ
- DC voltage: 9 to 31 V
Connection
0 782 43: CLAMP FOR CORDED PUSHBUTTON
Overall dimensions
For holding the corded push-button within reach: on bedding,
clothes or the arm of a chair.
79,7
17,936
123456
12 11 10 987
O
I
24 V
+ –
0 782 03 0 782 03
0 782 45/47
