LEGRAND MOSAIC Series User Manual

30
CALL FOR NURSE ASSISTANCE EMERGENCY
3 - Nurse assistance request
BEEEP
BEEEP

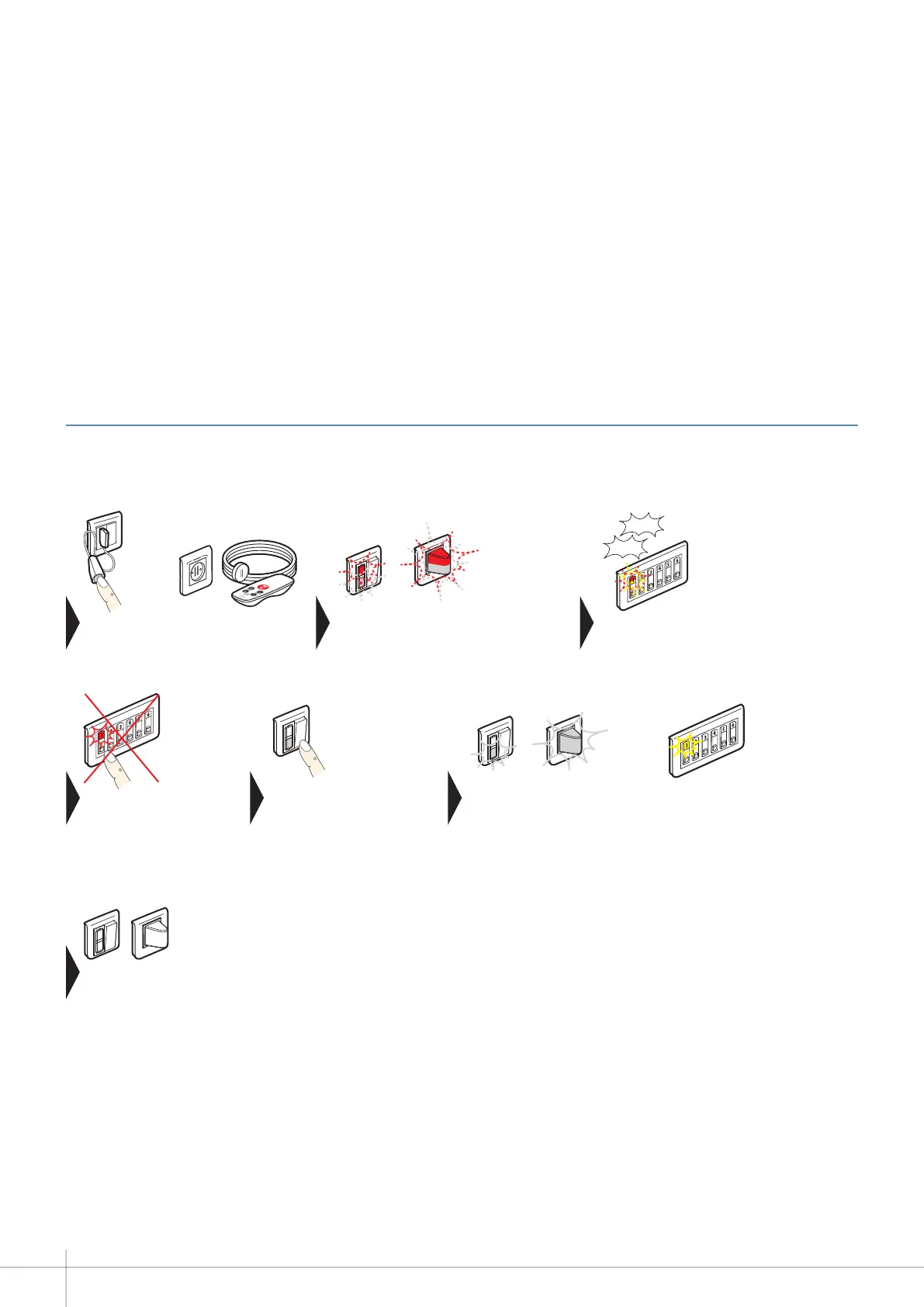

The patient calls from their room by
pressing the corded push-button or
hand-held remote control unit.
The door unit indicators and the
corridoroverdoor light flash quickly,
alternating red and white.
In the nurses' station, the indicator
flashes quickly, alternating red and
yellow; the buzzer beeps quickly.
Muting is not possible
from the nurses' station.
The nurse must go to the
patient's room.
On entering the room, the
2nd nurse presses the door
unit push-button.
The door unit red indicator
andthe corridor overdoor
lightgo out. The door unit
indicator and the corridor
overdoor light come on with
asteady white light.
In the nurses' station, the red
indicator goes out and the
yellow indicator returns to
steady state.
On leaving the room, the
nurse presses the door unit
push-button and clears
thecall.
All the indicators and the
overdoor light go out.
1 - Patient calls from room
2 - Nurse present in the room
1
4 5 6
7
2 3
OR
OPERATING MODE
