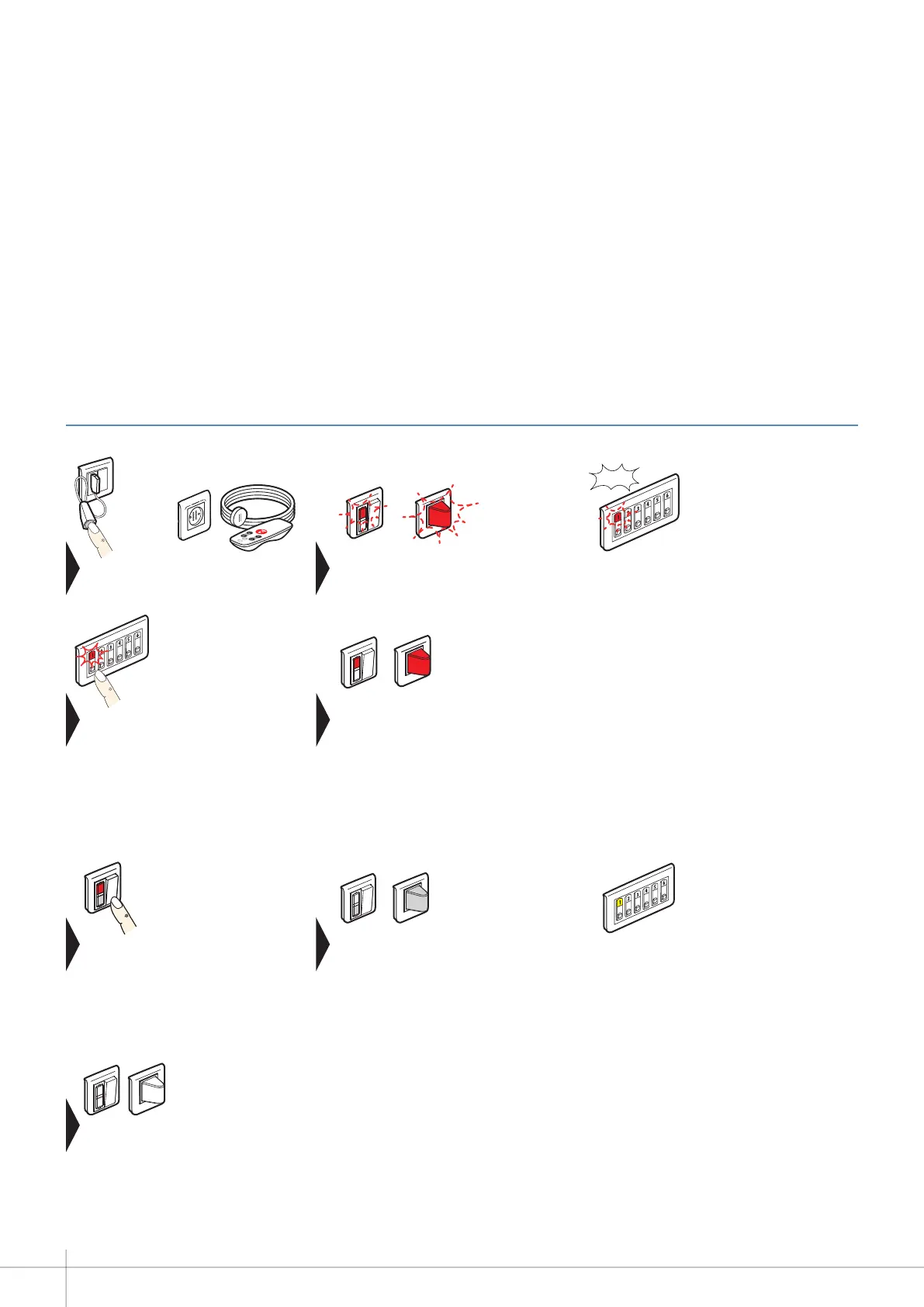

OPERATING MODE
CALL + NURSE PRESENT
1 - Patient calls from room
BEEEP
The patient calls from their room by
pressing the corded push-button or
hand-held remote control unit.
The door unit indicator and the corridor
overdoor light flash red slowly.
In the nurses' station, the room number
lights up red and flashes slowly, and the
buzzer beeps slowly.
From the nurses' station, the nurse
acknowledges the call by pressing
the mute button. The red indicator
changes from flashing to steady and
the buzzer stops.
The door unit indicator and the corridor
overdoor light change from flashing red
to steady red.
2 - Nurse present in the room
On entering the room, the nurse
signals her presence by pressing the
door unit push-button.
The red door unit indicator goes out
andthe white indicator lights up.
The corridor overdoor light changes
fromred to white.
In the nurses' station, the red indicator
goes out and the yellow indicator returns
to steady state.
3 - Acknowledgement of the call
On leaving the room, the nurse presses
the door unit push-button and clears
the call.
All the indicators and the overdoor
light go out.
