PRESENTATION AND INSTALLATION OF DEVICES

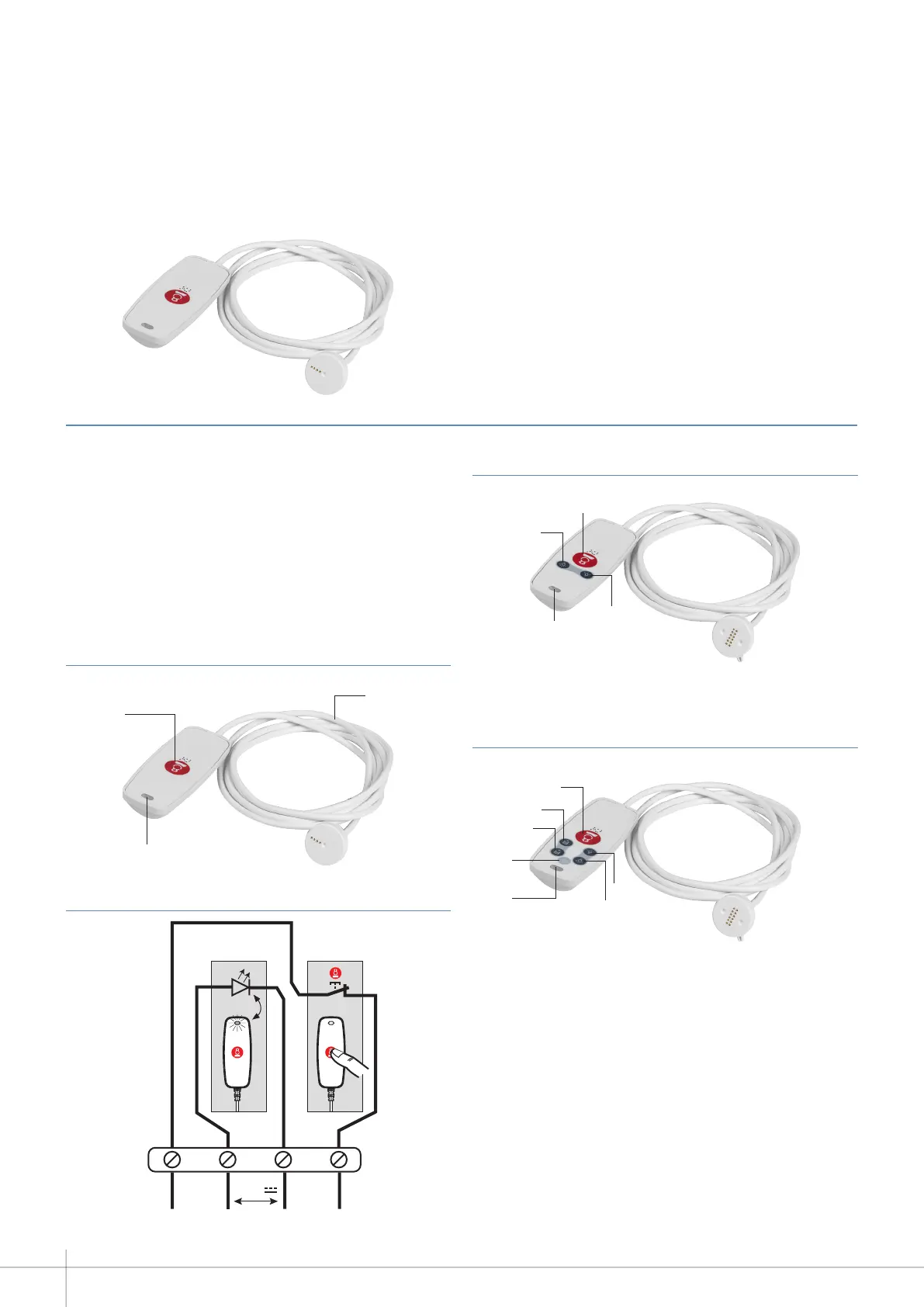

0 782 01/02/03: HANDHELD REMOTE CONTROL UNITS
Hand-held remote control unit for calls and controls
Cat. No. 0 782 02
For use with socket Cat. No. 0 782 45 or 0 782 47.
Hand-held remote control unit for call only (corded push-button)
Cat. No. 0 782 01
For use with socket Cat. No. 0 782 41 or 0 782 46.
Connection
Allow patients to call a nurse (using an NC push-button with call
confirmation indicator) via the door unit.
Magnetic connection between hand-held units and sockets: can
be ejected in any direction with pull-out force designed to avoid
any damage to the equipment.
These products are compatible with other nurse call systems with
an NC (Normally Closed) contact on 2 terminals and LED call
confirmation indicator on 2 terminals.
Recommended cleaning: use wipes impregnated with detergent
for food contact surfaces (Dettol, etc).
1- Nurse call button
2- Reading light control (NO push-button)
3- Room lighting control (NO push-button)
2.50 m cord
0 782 01
0 782 41/46
0 782 01
Nurse call
button
3
1
2
Red call confirmation
indicator
Red call confirmation
indicator
Hand-held remote control unit for calls and controls
Cat. No. 0 782 03
For use with socket Cat. No. 0 782 45 or 0 782 47.
1- Nurse call button
2- Reading light control (NO push-button)
3- Room lighting control (NO push-button)
4- Red call confirmation indicator
5 and 6- Roller blind control (NO push-button)
7- Free function button (NO push-button)
6
2
3
1
5
7
4
