LEGRAND MOSAIC Series User Manual

31
MOSAIC NURSE CALL UNIT
NURSE PRESENT + CALL FROM ANOTHER ROOM

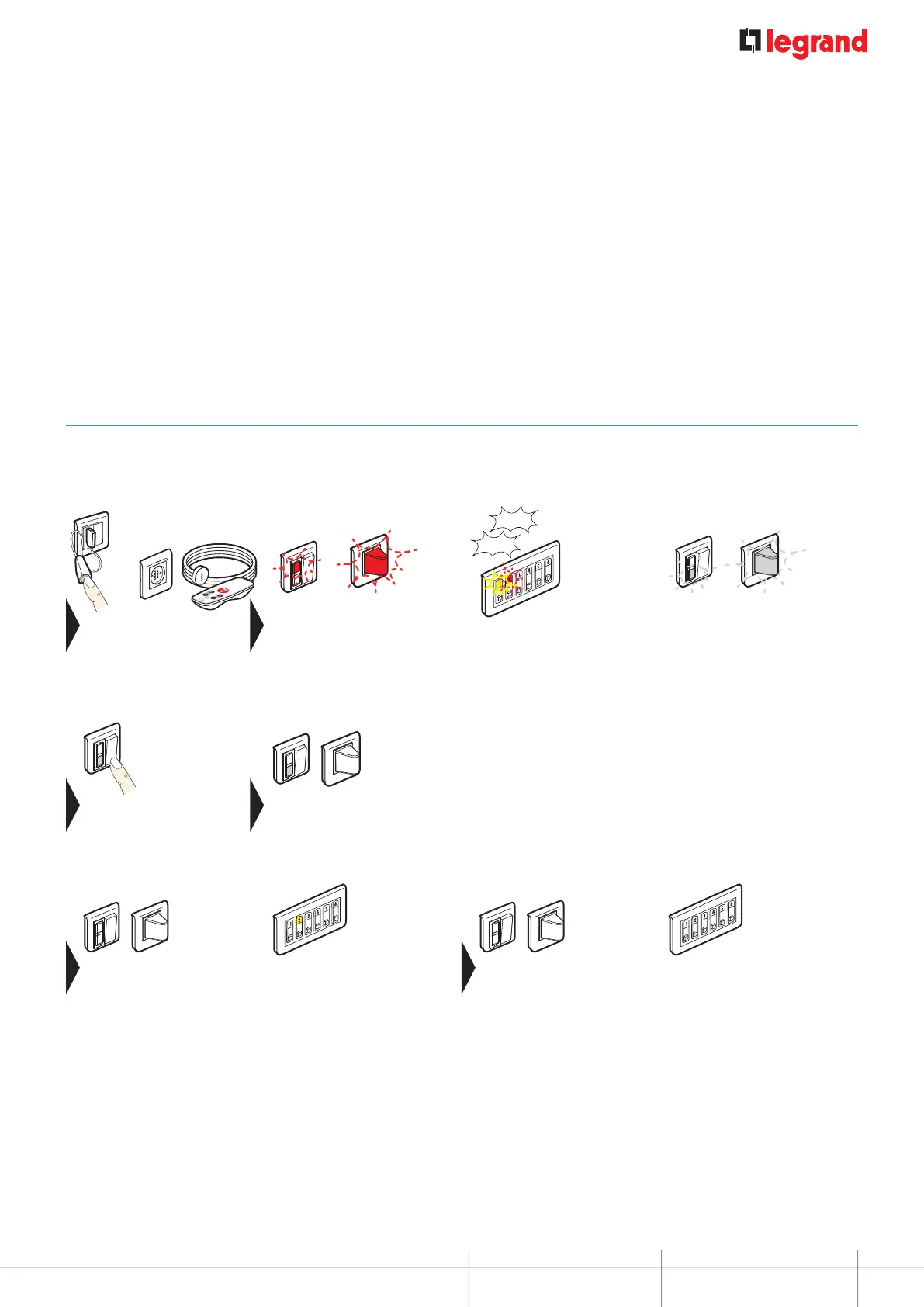

3 - Another patient calls from room 2
BEEEP
BEEEP
The patient calls from
room2 by pressing the
corded push-button or
hand-held remote control
unit.
The door unit indicator and
the corridor overdoor light for
room 2 flash red slowly.
In the nurses' station, room
number 2 lights up red and
flashes slowly, and the buzzer
beeps slowly.
In room 1 (and in the other
rooms in the ward where a
nurse is present): the door
unit indicators and corridor
overdoor lights flash white
slowly.
On entering room 2, the
nurse presses the door
unitpush-button.
In room 1 (and in the other
rooms in the ward where a
nurse is present): the door
unit indicators and corridor
overdoor lights stop flashing.
On leaving room 1, nurse 1
presses the door unit push-
button and clears the call.
All the indicators and the
overdoor light go out.
In the nurses' station, room
number 1 stops flashing and
returns to a steady yellow
light.
On leaving room 2, the
nurse presses the door unit
push-button and clears
thecall.
All the indicators and the
overdoor light go out.
In the nurses' station, room
number 2 goes out.
1 - Patient calls from room 1
2 - Nurse present in room 1
1 2
3 4
MOSAIC NURSE CALL UNIT
OR
5 6

LEGRAND MOSAIC Series Specifications

General

Series	MOSAIC
Category	Switch
Brand	LEGRAND
Modular	Yes
Color	White
Material	Plastic
Protection Rating	IP20
Voltage Rating	250 V
Current Rating	10 A
Standards	IEC 60669-1
Installation	Flush mounting
Color Options	White, Black
