PRESENTATION AND INSTALLATION OF DEVICES
0 782 41/46: SOCKETS FOR HANDHELD REMOTE CONTROL UNITS
Technical characteristics
n Power supply: via the door unit
n Operating temperature: 5 to 40°C
n Storage temperature: -20 to 70°C
n Antimicrobial
n Protection index: IP40
n Dimensions:
- Cat. No. 0 782 41: 45 x 45 x 36 mm
- Cat. No. 0 782 46: 82 x 82 x 36 mm
n Installation:
- in 1-gang flush-mounting box (2 modules)
- on wall with surface-mounting box Cat. No. 0 802 81
- in a strip using special holder supplied
• Connection
Example: 1 bed in a room.

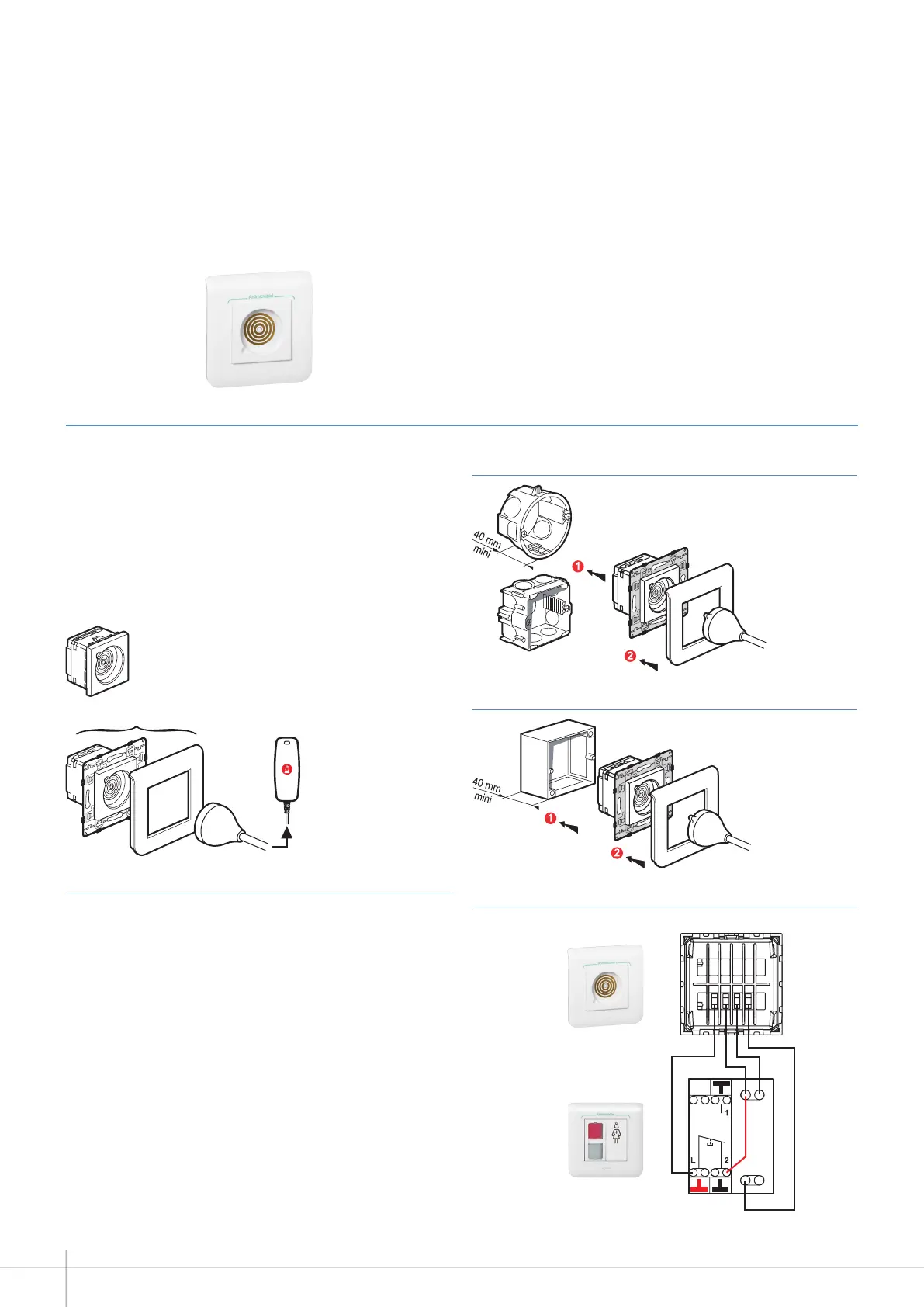

• Flush-mounted wall installation with 1-gang
flush-mounting box
• Surface-mounted wall installation with box Cat. No. 0 802 81
Sockets Cat. No. 0 782 41 for mounting in a strip and 0 782 46 for
call-only hand-held remote control unit.
Magnetic connection between hand-held unit and socket: can be
ejected in any direction with pull-out force designed to avoid any
damage to the equipment.
Antimicrobial.
Non-indexed magnetic connection socket for hand-held remote
control unit Cat. No. 0 782 01.
0 782 41
0 782 46
0 782 01
R
W
1234
+-
Door unit
Cat. No. 0 782 04
Hand-held unit
socket
Cat. No. 0 782 46
R - Red LED indicator
W - White LED indicator
