Technical characteristics
n Power supply: via door unit Cat. No. 0 782 04
n Consumption: 0.8 W
n Operating temperature: 5 to 40°C
n Storage temperature: -20 to 70°C
n Protection index: IP20
n Dimensions: 82 x 82 x 43 mm
n Installation:
- surface-mounted with box Cat. No. 0 802 81
- flush-mounted in 1-gang (2 modules) flush-mounting box
depth 40 mm Cat No. 0 819 41 or 0 801 41
n Antibacterial
Technical characteristics
n Antibacterial
n Length 1.5 m

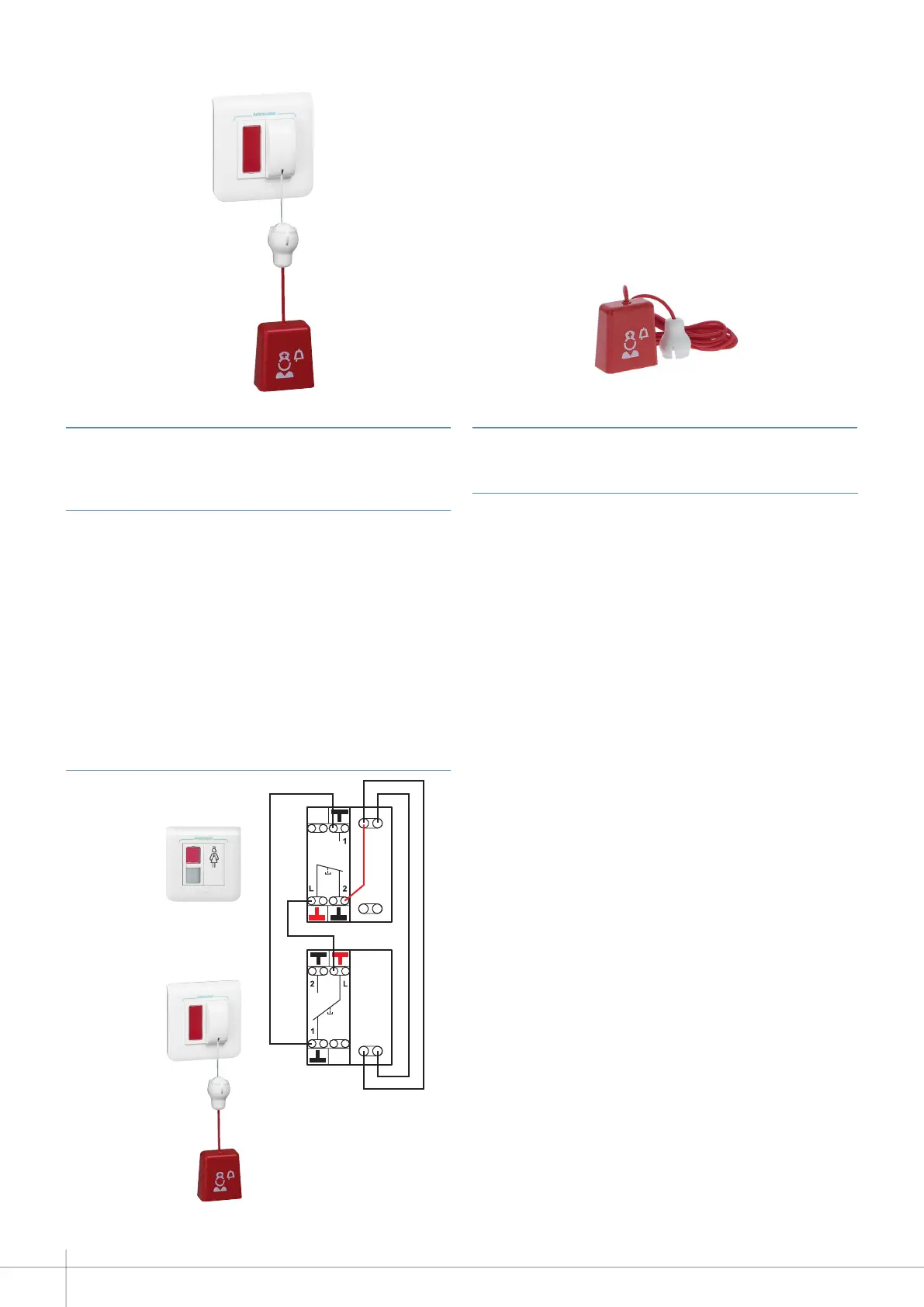

Bathroom call unit with vertical pull-cord button and integrated
LED indicator.
Spare cord in case one breaks or is lost.
0 766 64: BATHROOM CALL PULLCORD 18W10
Connection
Bathroom call unit
Cat. No. 0 766 64
R
B
R
PRESENTATION AND INSTALLATION OF DEVICES
9 804 12: SPARE PART FOR BATHROOM CALL
PULLCORD
Door unit
Cat. No. 0 782 04
R - Red LED indicator
W - White LED indicator
