LEGRAND MOSAIC Series User Manual

23
PRESENTATION AND INSTALLATION OF DEVICES
MOSAIC NURSE CALL UNIT
OFF
OFF

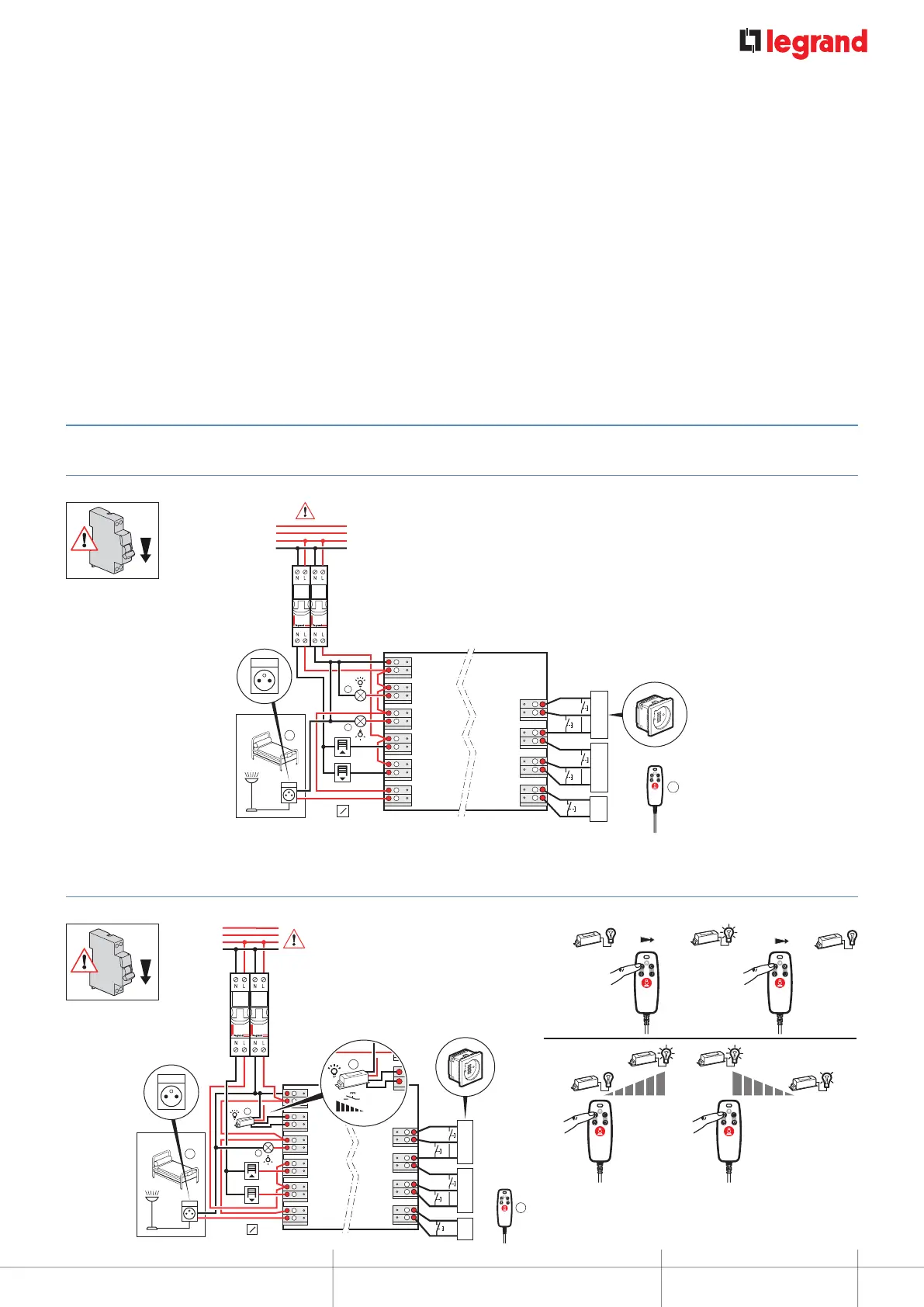

Remote control module for luminaires or bedhead strips for controlling 2 lighting outputs and roller blinds with mechanical stop
Cat. No. 0 783 78
Compatible with hand-held remote control unit Cat. No. 0 782 03.
Remote control module for roller blinds and for luminaires or bedhead strips for controlling 2 lighting outputs: room lighting
dimmer, reading light ON/OFF and roller blinds Cat. No. 0 783 79
Compatible with hand-held remote control unit Cat. No. 0 782 03.
1
2
3
4
6
5
0 782 45/47
1
1
1
0 782 03
O
I
8
7
C10
L1
L2
L3
N
C10
1
CH.1
10 A max
10 A max
1
2
3
4
6
5
L
1
1
1
1
0 782 03
CH.1
O
I
0 782 45/47
L1
L2
L3
N
8
7
input
or
DA-DA
(DALI)
L
1
C10 C10
10 A max
10 A max
< 1.5 s
> 1.5 s > 1.5 s
< 1.5 s
