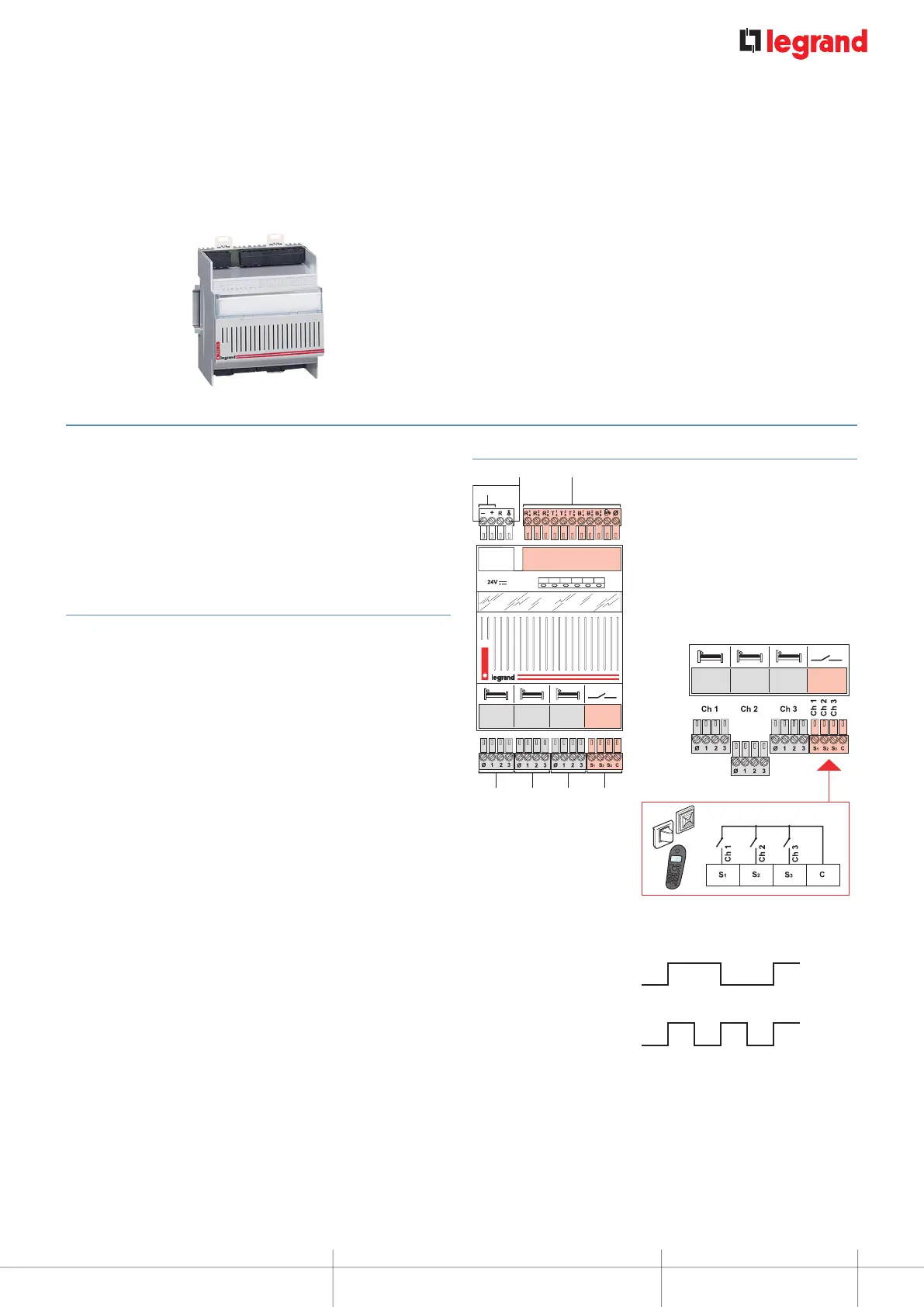

PRESENTATION AND INSTALLATION OF DEVICES
MOSAIC NURSE CALL UNIT
0 782 12: 3DIRECTION MANAGEMENT MODULE*
Technical characteristics
n Power supply: 24 V=
n Consumption (min): 39 mA
(max): 300 mA
n Operating temperature: 5 to 40°C
n Storage temperature: -20 to 70°C
n Size: 4 DIN modules
ConnectionManages 3 directions.
Option of forwarding:
- for indicator
- for buzzer via a solid state relay
- to DECT, via a telephone coupling product
- to master indicator (lights up if the indicator on at least one of
the 3 directions is lit up).
1- 24 V= power supply terminals
2- Master indicator or solid state relay
terminals
3- Call display unit terminals
4- Door unit direction 1
5- Door unit direction 2
6- Door unit direction 3
7- Volt-free contact for DECT call
forwarding or indicator or buzzer
3
4567
1
2
* Direction: room from which the calls originate
Max : 24 V 0,5 A
n Contact beat frequency
Normal call (0.5 Hz)
Emergency call (1 Hz)
