Version 3.3 153
Configuration Operator’s Manual

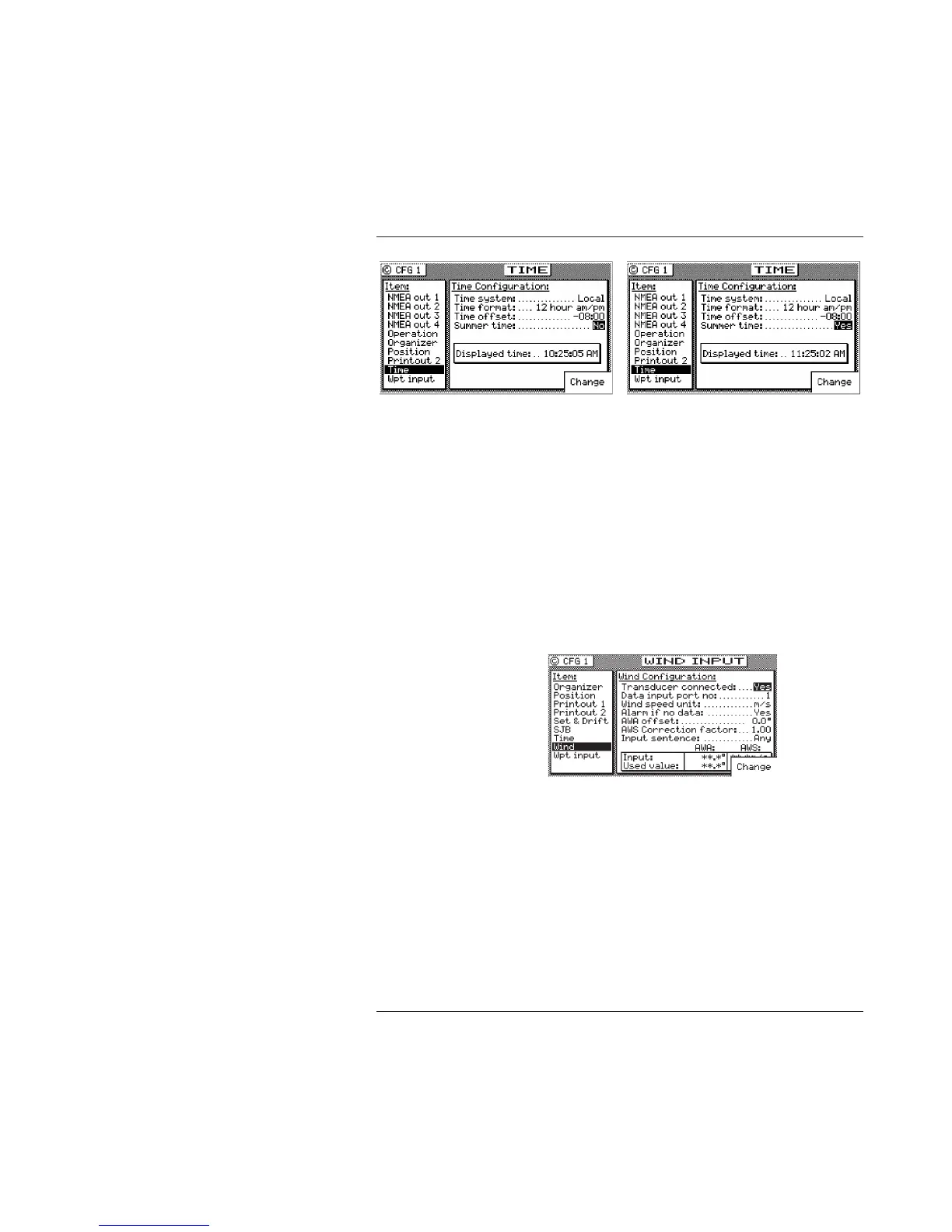

Time Offset: Sets the local offset to UTC time. 0:00 is the default.
Summer Time: Sets the local clock ahead one hour in the summer
for daylight savings time when set to Yes, or to the Local Offset
time when set to No.
The adjusted time value is displayed in the lower window so you
can verify the current time without having to leave the screen.
Wind
The receiver will display wind information in the NAV4 screen
when connected to a NMEA 0183 sensor which can provide the
MWV, or VWR sentence.
Data Input Port: 1 (default), 2, 3, or 4
Wind Speed Unit: Miles Per Hour, meters/second, Knots, Kilome-
ters Per Hour.
Alarm If No Data: Allows you to receive an audible and visual
alarm if NMEA 0183 data is not being received on the data port
at regular intervals (typically every few seconds). The available
To Next Page
