Operator’s Manual Navigate
Present
Position
SOG 13 Kn
Beginning
Waypoint
Next
Waypoint
Original Course Line
Actual
Course
Line
VMG
Towards
Waypoint
10
Kn
BRG
Effect of
Set & Drift
6297_01B.100
Present
Position
SOG 13 Kn
WCV 9 Kn
Beginning
Waypoint
Next
Waypoint
Original Course Line
BRG
&
RNG
Extended
Course
Line
WCV is based on
Extended Course
Line (COG), SOG,
BRG & RNG to WPT
Effect of Set & Drift
HTS to
counter
Set & Drift

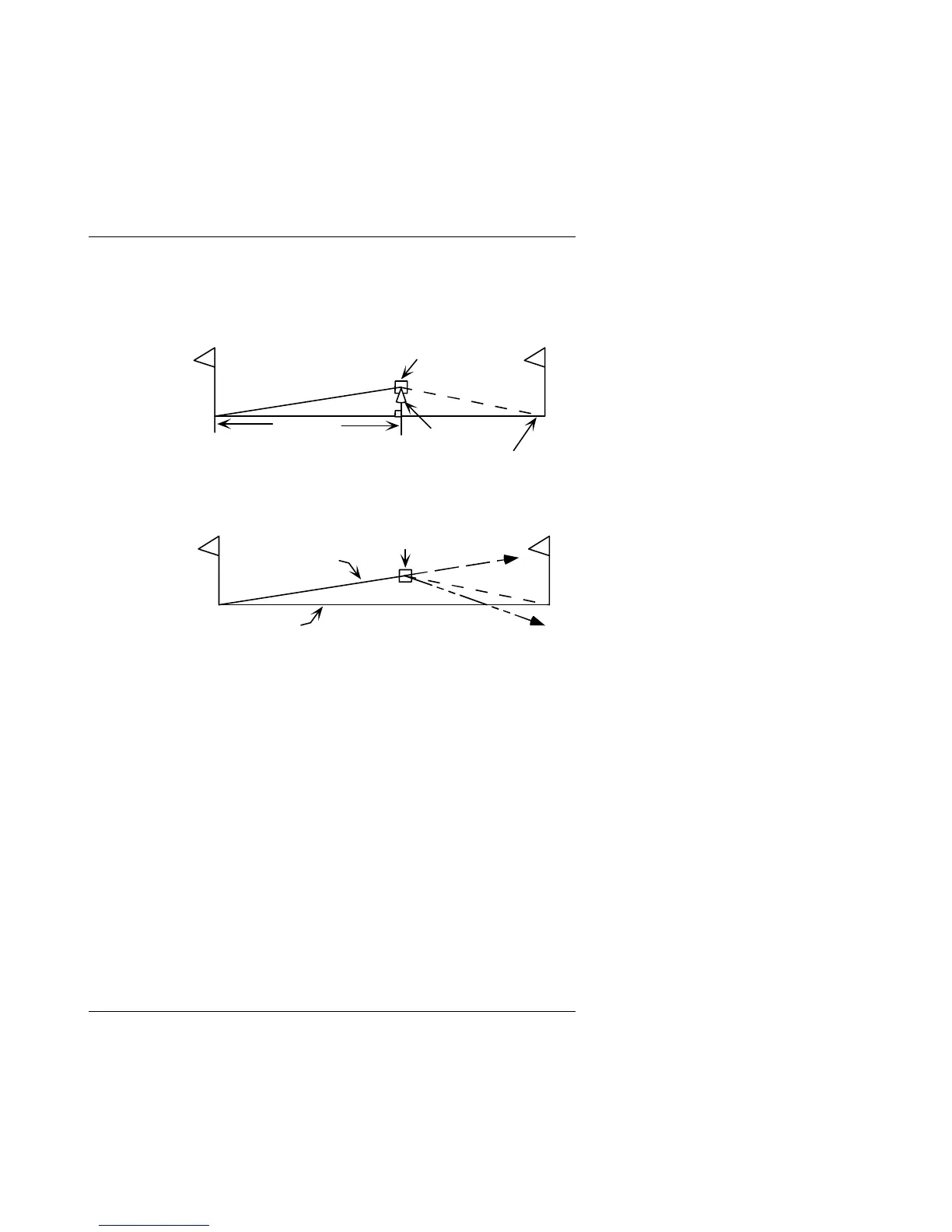

Velocity Made Good:
Distance to
Waypoint Travelled
Waypoint Closure Velocity:
Below this information, you will find your Set and Drift data, which
is calculated using GPS and your compass and speed sensor inputs.
Reset XTE and Skip Waypoint, described at the end of NAV2, is
also available in NAV4.
The window on the right displays depth information which you
provide with the NMEA 0183 record of DPT, DBS, DBT, or DBK.
These are setup in the CFG1 Depth screen, refer to the Configura-
tion section of the manual and the Installation & Service Manual
for full details on depth data.
Below the depth data you will find the next route leg vector, the
Range to the waypoint and and Time To Go data, explained in the
NAV3 section.
