Maintenance 6-3

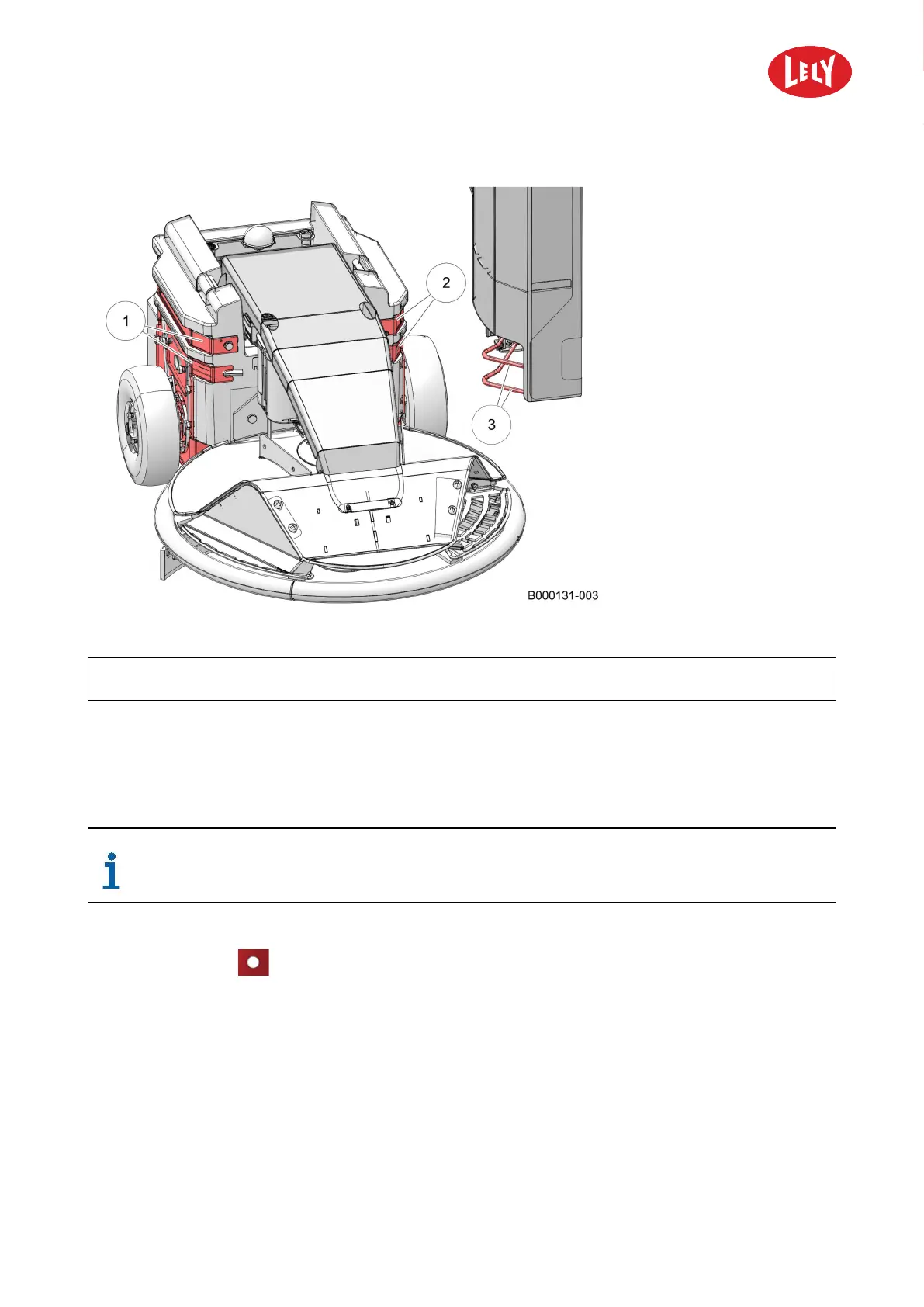

Figure 39. Clean the charging strips and the charging electrodes
KEY: 1. Charging strips right (upper strip: + , lower strip: -) - 2. Charging strips left (upper strip: + , lower strip: -) - 3. Charging
electrodes
Close-up
1. Connect the charging station to the main power supply.
2. Switch ON the Machine (see page 5-4).
During the calibration process you must not move the machine.
3. Push soft button
Yes to start the gyroscope calibration process.
4. Wait until a beep is heard (about 10 minutes) to confirm that the calibration is complete.
5. Drive the Machine to the Charging Station (see page 5-7).
6. Examine if the charging electrodes slide over the middle of the charging strips when you park the
machine.
7. Start the timepath (see Start or Stop the Time Path on page 5-33) to put the machine into operation.
