4-4 Description
4.3 Cam Track Lubrication (optional)

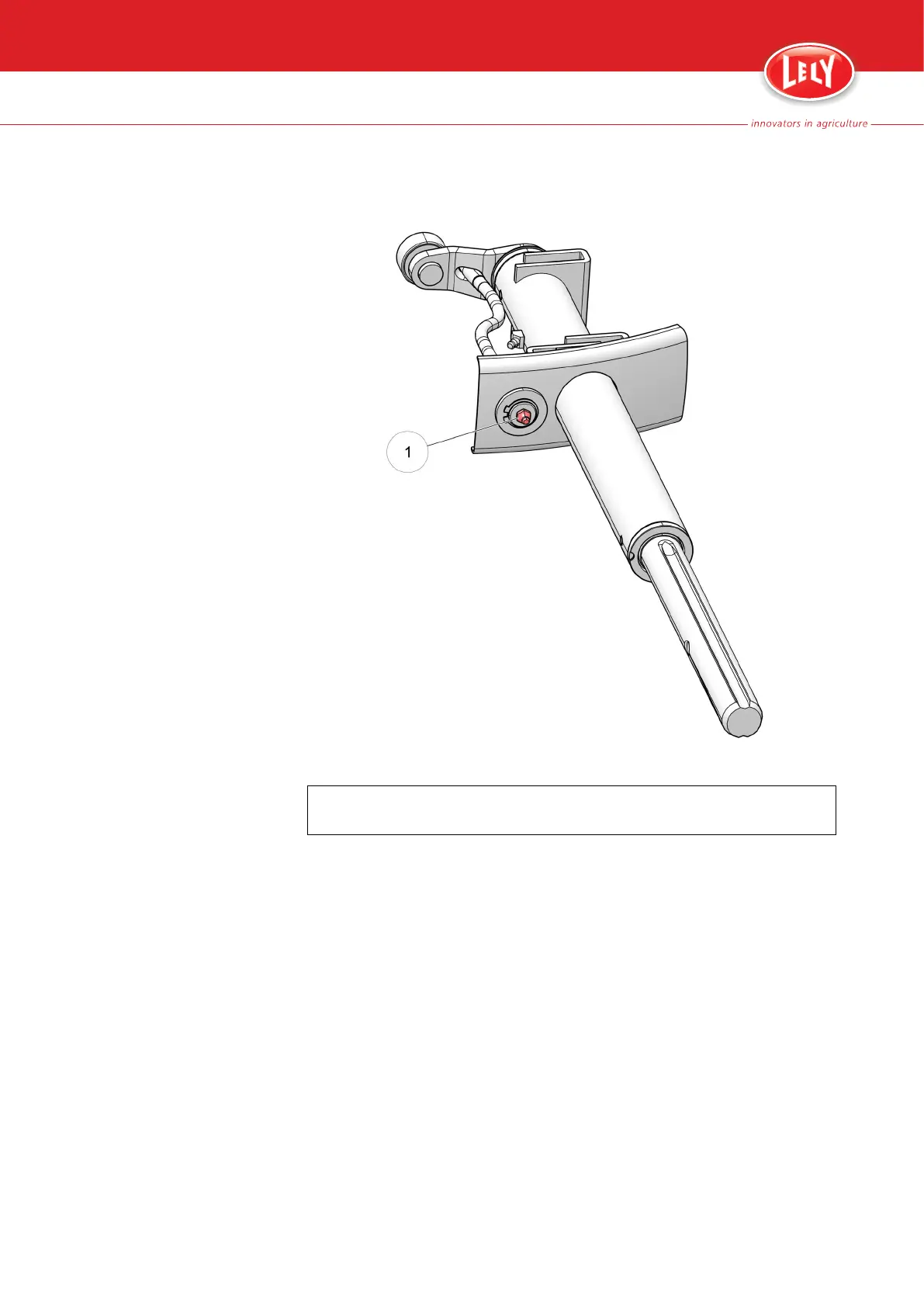

Figure 5. Tine arm with grease nipple for cam track lubrication
KEY:
1. Grease nipple
The cam track in the rotor of the rake is lubricated with grease. The tine
arm shaft equipped with a grease nipple simplifies and speeds up the
cam track lubrication procedure. The grease nipple ends up in the cam
track, which ensures that the grease reaches the appropriate area.
