4.1059.8506.0 A
8-10 Maintenance

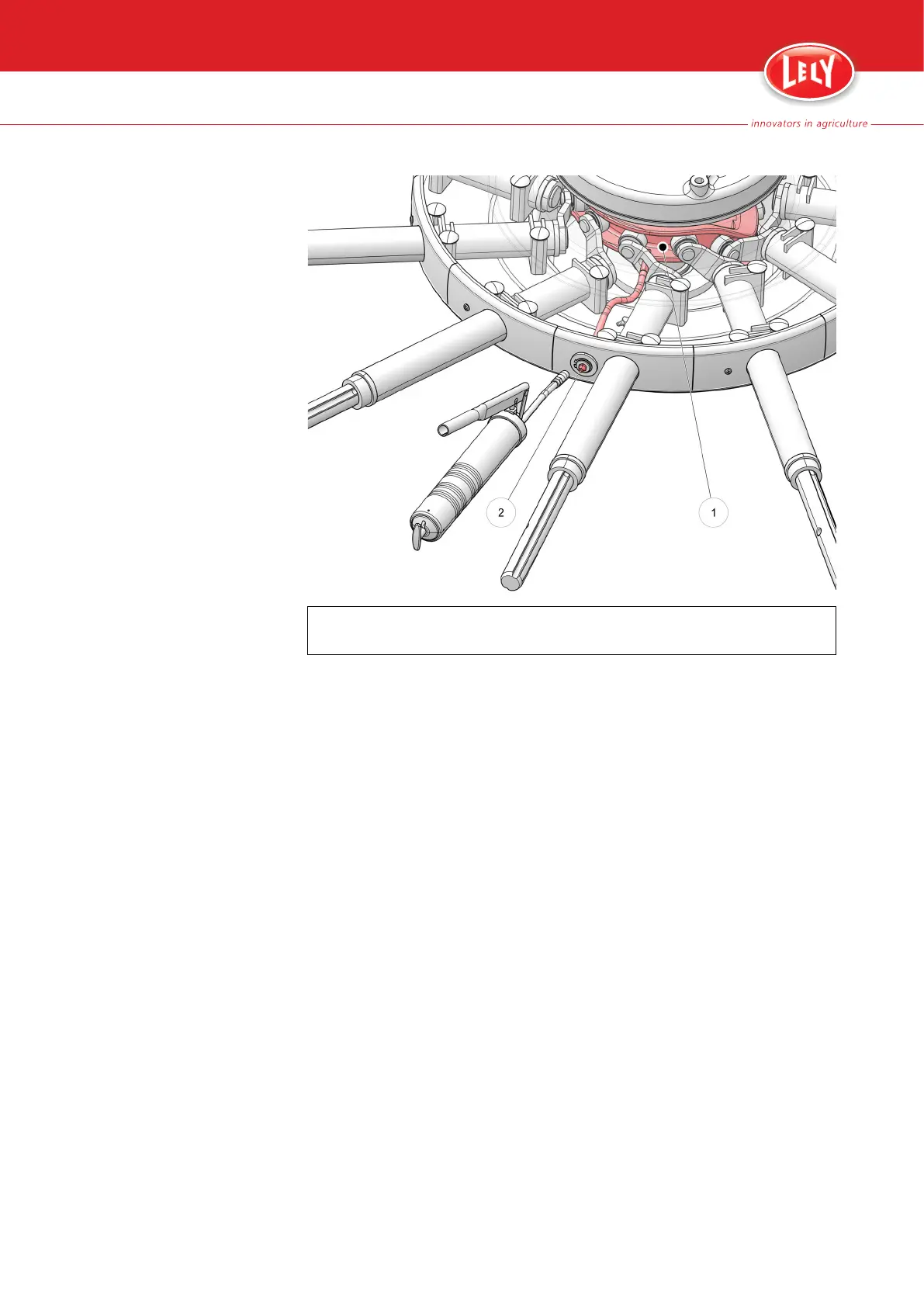

KEY:
1. Cam track - 2. Grease nipple for cam track lubrication
8.2.9 Lubricate the Tine Arms
Requirements
• Grease pump
• Biodegradable grease (SEP2)
Procedure
1. Take the rake out of operation (see page 6-12).
2. Remove the screw of the cover plate (1) (see figure 36 on page 8-
11).
3. Remove the cover plate (3) from the rotor.
4. Lubricate the tine arm.
5. Install the cover plate on the rotor with the screw.
6. Repeat this procedure for the other tine arms.
