4.1059.8506.0 A
Adjustment 7-5

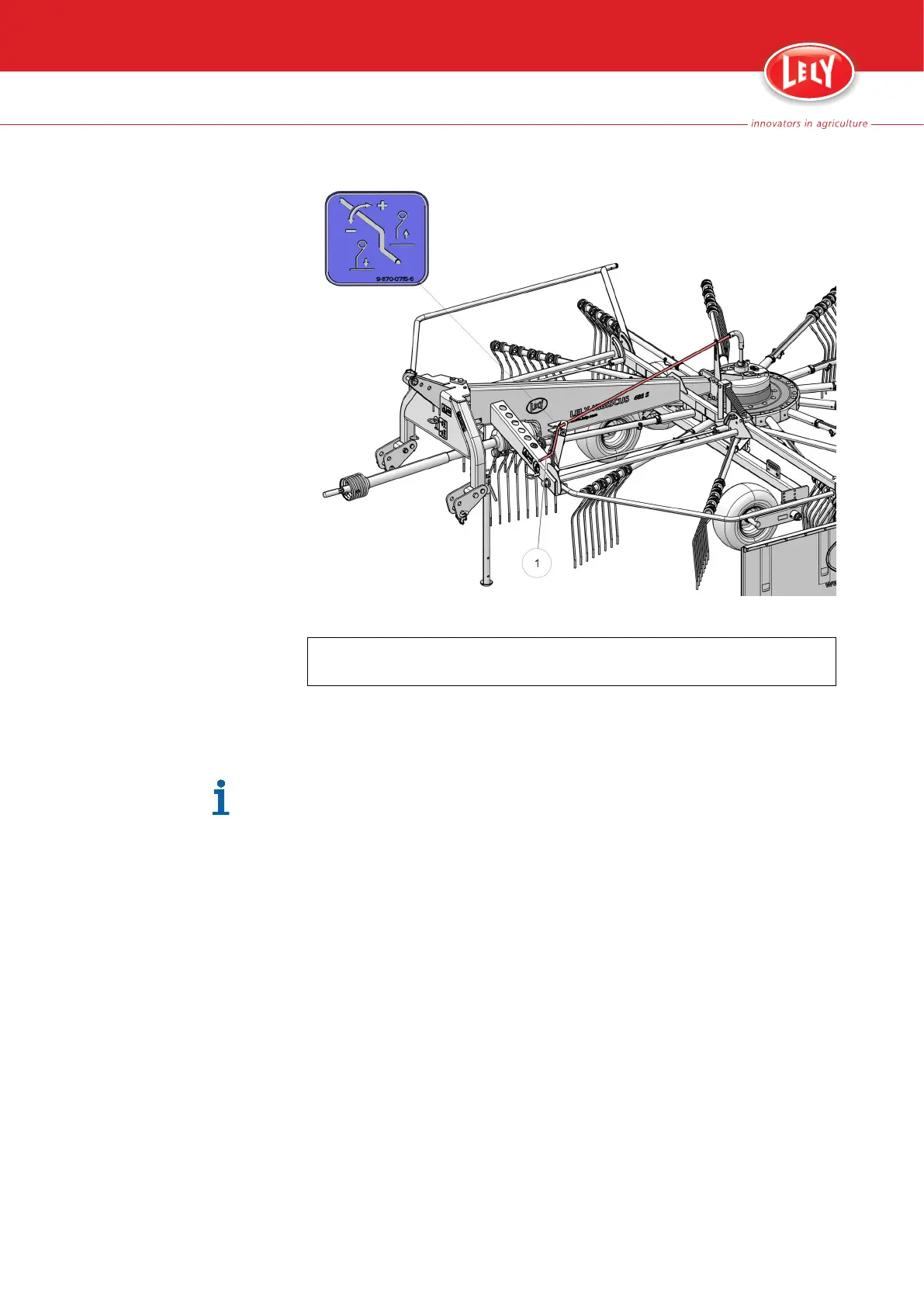

Figure 27. Adjust the working height with the winding handle
KEY:
1. Winding handle for fine working height adjustment
7.3 Adjust the Cam track
The position of the cam track determines when the tine arms release the
crop. Adjustment of the cam track to earlier or later crop release has an
effect on the shape and width of the swath. Optimal adjustment is
related to the crop, its humidity and its volume.
1. Put the rake into the working position (see page 6-6).
2. Take the rake out of operation (see page 6-12).
3. Remove the lynch pin from the cam track adjustment strip (2) (see
figure 28 on page 7-6).
4. Install the adjustment strip (1) to the applicable position:
• + gives an earlier release of the crop.
• – gives a later release of the crop.
5. Lock the position with the lynch pin.
