LELY HIBISCUS 455 - Lubricate the Bearing Block of the PTO Extension

4.1059.8506.0 A
Maintenance 8-3

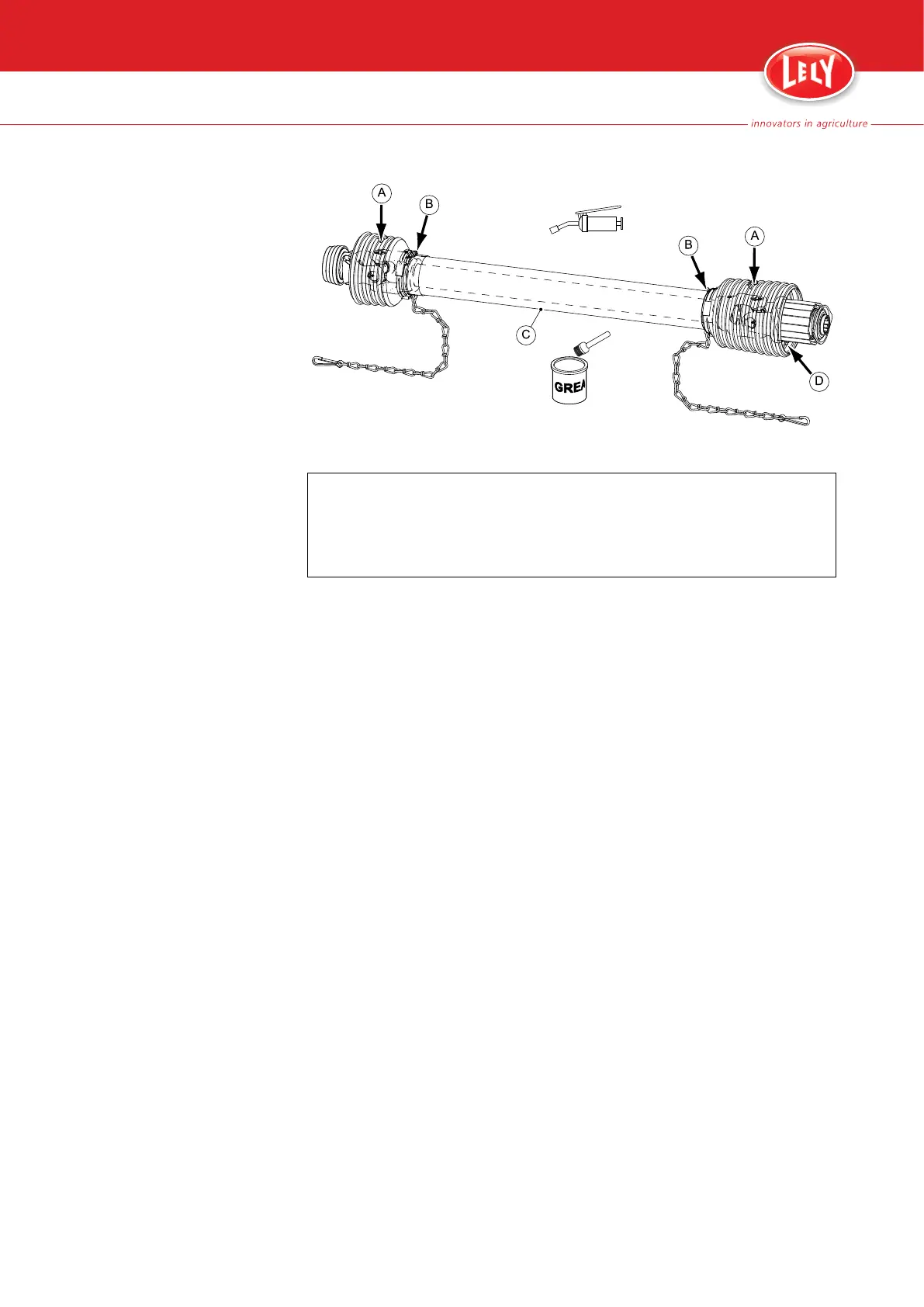

Figure 30. Grease points of the primary PTO shaft
KEY:
A: Grease nipple of the universal joint
B: Grease nipple of the guard bearing
C: Profiled tube
D: Grease nipple of the clutch
8.2.2 Lubricate the Bearing Block of the PTO Extension
Requirements
• Grease pump
• Biodegradable grease (SEP2)
Procedure
1. Take the rake out of operation (see page 6-12).
2. Lubricate the grease point of the PTO extension (see figure 31 on
page 8-4).
