4.1059.8506.0 A
Maintenance 8-9
5. While you lubricate the cam track, manually turn the rotor 90
o
in
the same direction as during normal operation. Walk with the
turning rotor to keep the grease pump close to the cam track.
6. Repeat the steps 4 and 5 until the entire cam track is lubricated.

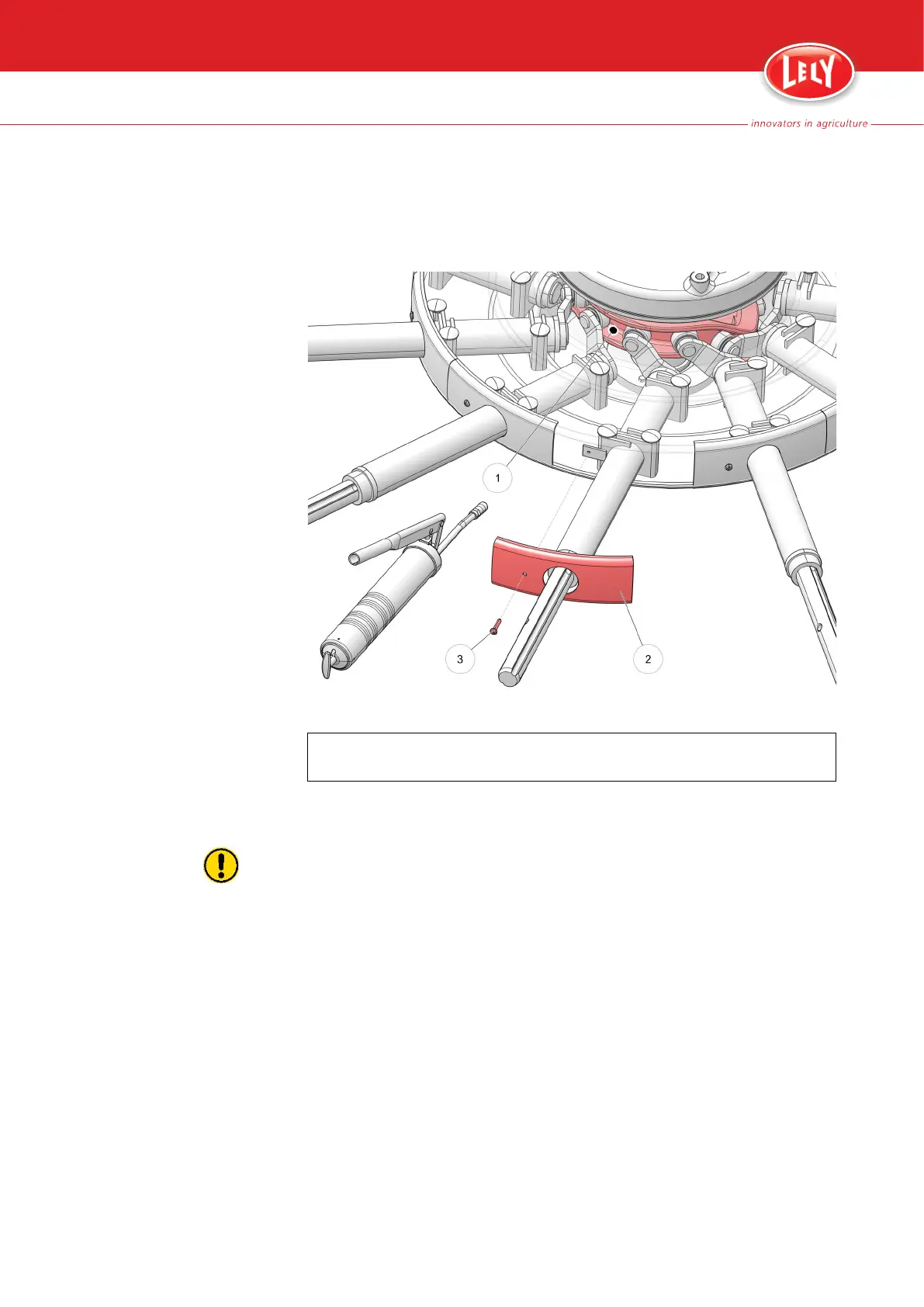

Figure 35. Lubricate the cam track
KEY:
1. Cam track - 2. Cover plate - 3. Screw
8.2.8 Lubricate the Cam Track (Grease Nipple on Tine Arm)
When lubricating the cam track turn the rotor manually to spread the
grease over the entire cam track.
Requirements
• Grease pump
• Molykote BR2 Plus or equivalent
Procedure
1. Take the rake out of operation (see page 6-12).
2. Lubricate the grease nipple on the tine arm. The grease nipple ends
up in the cam track. While you lubricate the cam track, manually
turn the rotor 360
o
in the same direction as during normal
operation. Walk with the turning rotor to keep the grease pump
close to the grease nipple.
