4.1059.8506.0 A
6-10 Operating Instructions
If Crop remains in the Middle behind the Rake
If crop remains in the middle behind the rake,
shorten the top link until the crop is picked up
properly.

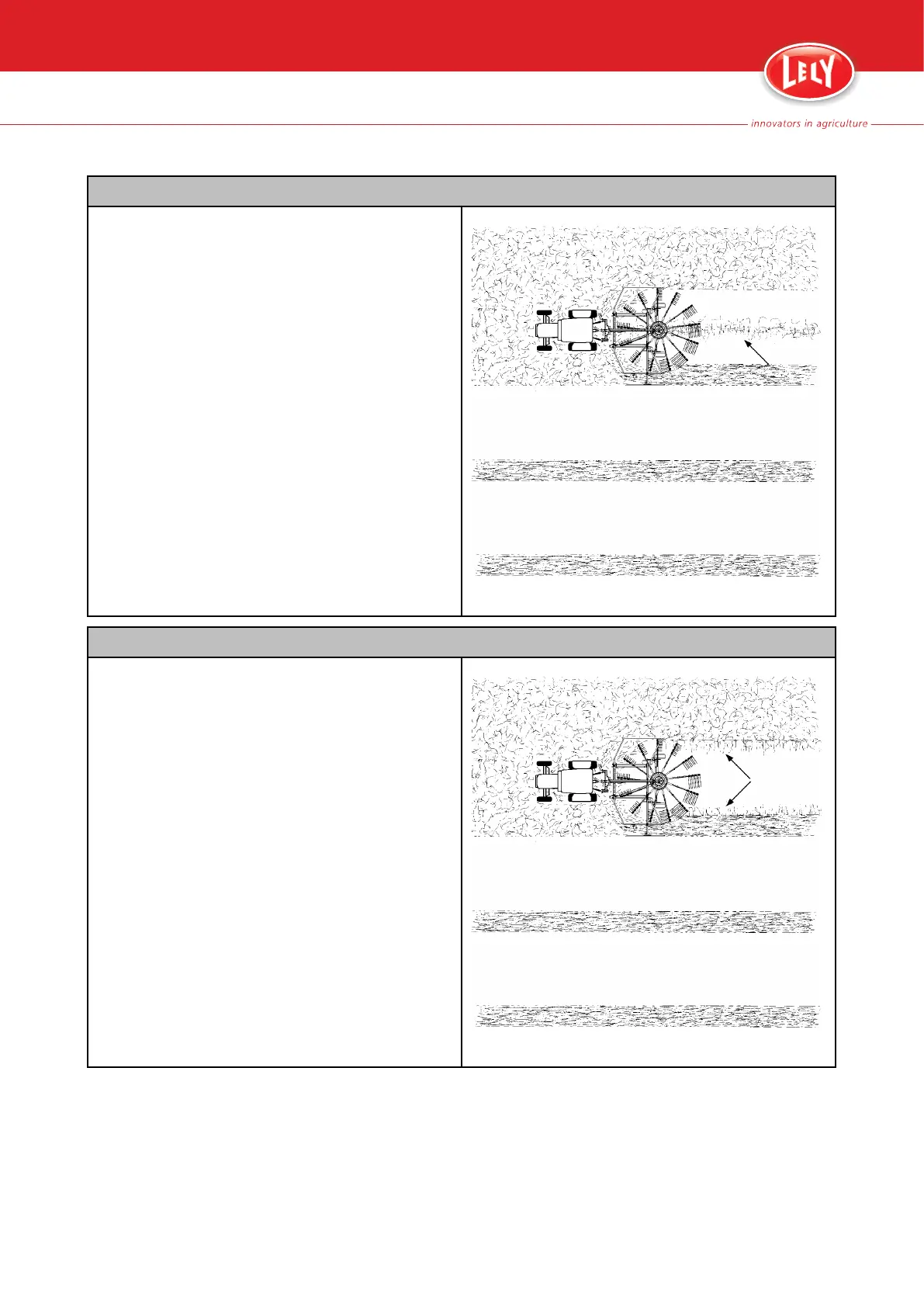

Figure 21. Crop remains behind the rake
If Crop remains on the Sides of the Rake
If crop remains on the sides of the rake, extend
the top link and adjust the working height or the
cam track (see page 7-2).
Figure 22. Crop remains on the sides of the rake
