Adjustment 7-3
3. Adjust the rotor height slightly lower at the side of the swath
curtain with the height adjustment system of the rotor wheels (see
figure 26 on page 7-4).
4. Turn the winding handle (1) (see figure 27 on page 7-5) to the
middle of the height adjustment range.
5. Examine the distance of the tines to the ground.
6. If the tines are less than 5 cm (2 in) from the ground:
1. Adjust the height of the tines with the winding handle so
that the tines are only slightly above the ground.
7. If the tines are 5 cm (2 in) or more above the ground:
1. Adjust the height roughly (lower) with the height
adjustment system of the rotor wheels.
2. Adjust the height of the tines with the winding handle so
that the tines are only slightly above the ground.

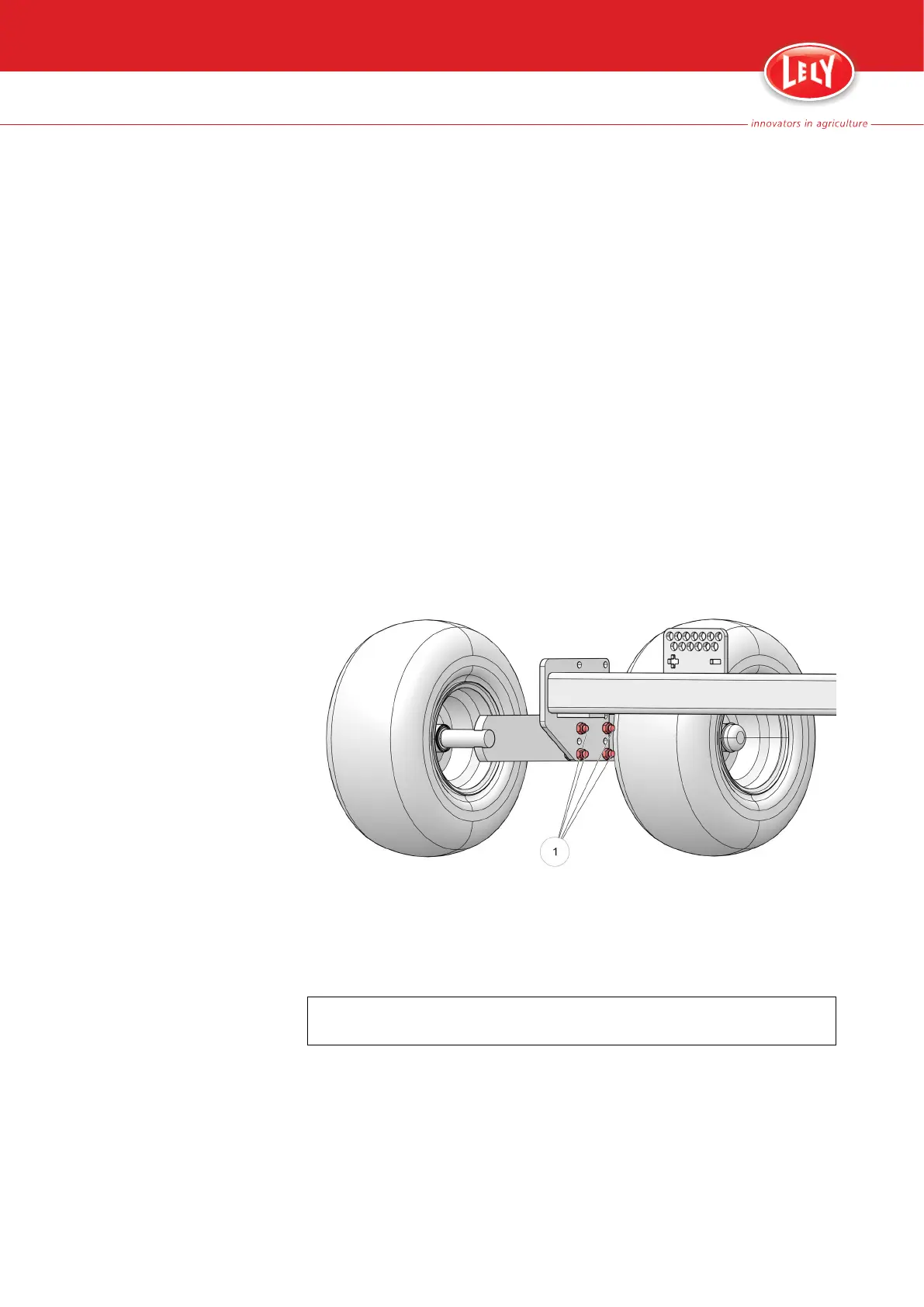

Figure 25. Height adjustment system of the rotor wheels for rough height
adjustment
KEY:
1. Rotor wheels positioned in the lowest position
