LELY HIBISCUS 455 - Page 71

4.1059.8506.0 A
Maintenance 8-15

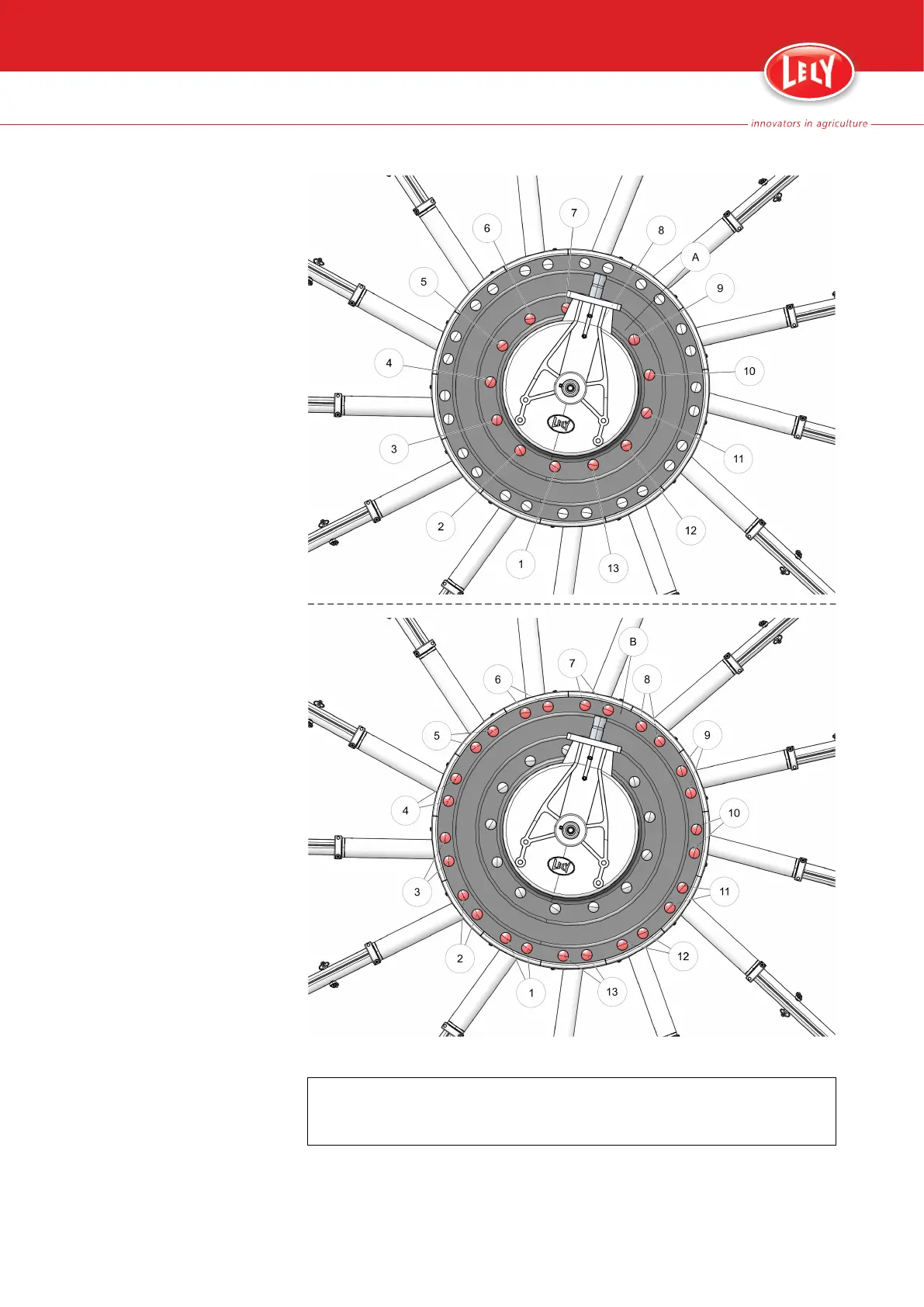

Figure 39. Torque tighten the nuts of the tine arm carriage bolts (485 S)
KEY:
A: Inner ring of nuts. Tightening order 1, 6, 11, 3, 8, 13, 5, 10, 2, 7, 12, 4, 9
B: Outer ring of nuts. Tightening order 1, 6, 11, 3, 8, 13, 5, 10, 2, 7, 12, 4, 9
