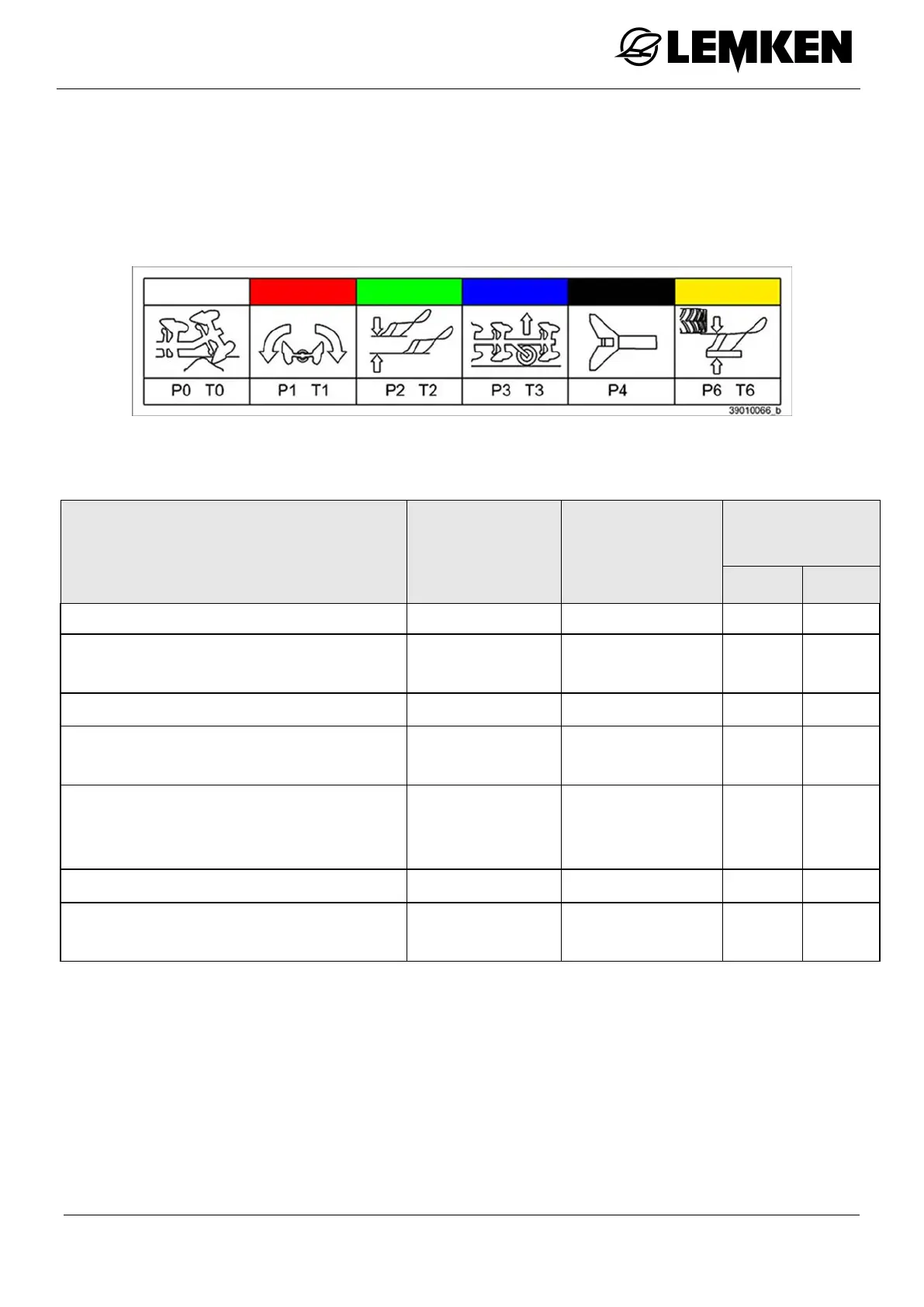

6.6 Hydraulic equipment required
The implement is supplied with separate hydraulic connections for each consumer
as standard. The protecting caps on the hydraulic connections are coloured and
the hydraulic connections themselves are marked alphanumerically.
To activate the individual hydraulic devices listed below, the tractor must be
equipped with the following spool valves:
Consumer Single-acting Double-acting Tractor/
implement
Colour Code
Turnover device (OF swivel)
Hydraulic working width adjustment (Di-
amant 11 V)
1
Green P2 T2
Hydraulic front furrow width adjustment 1 Yellow P6 T6
Depth wheel, Hydromatic standard ver-
sion
1
Blue P3
Depth wheel, optionally with traction in-
crease device, Hydromatic standard ver-
sion
1 Blue P3 T3
Attachment arm for packer 1 Black P4
Hydraulic overload safety device, Hy-
dromatic Comfort version
1 White P0 T0
The hydraulic system must have a minimum operating pressure of 160 bar.
A minimum delivery rate of 30 l/min is essential for fast turning.
