Adjustments
75

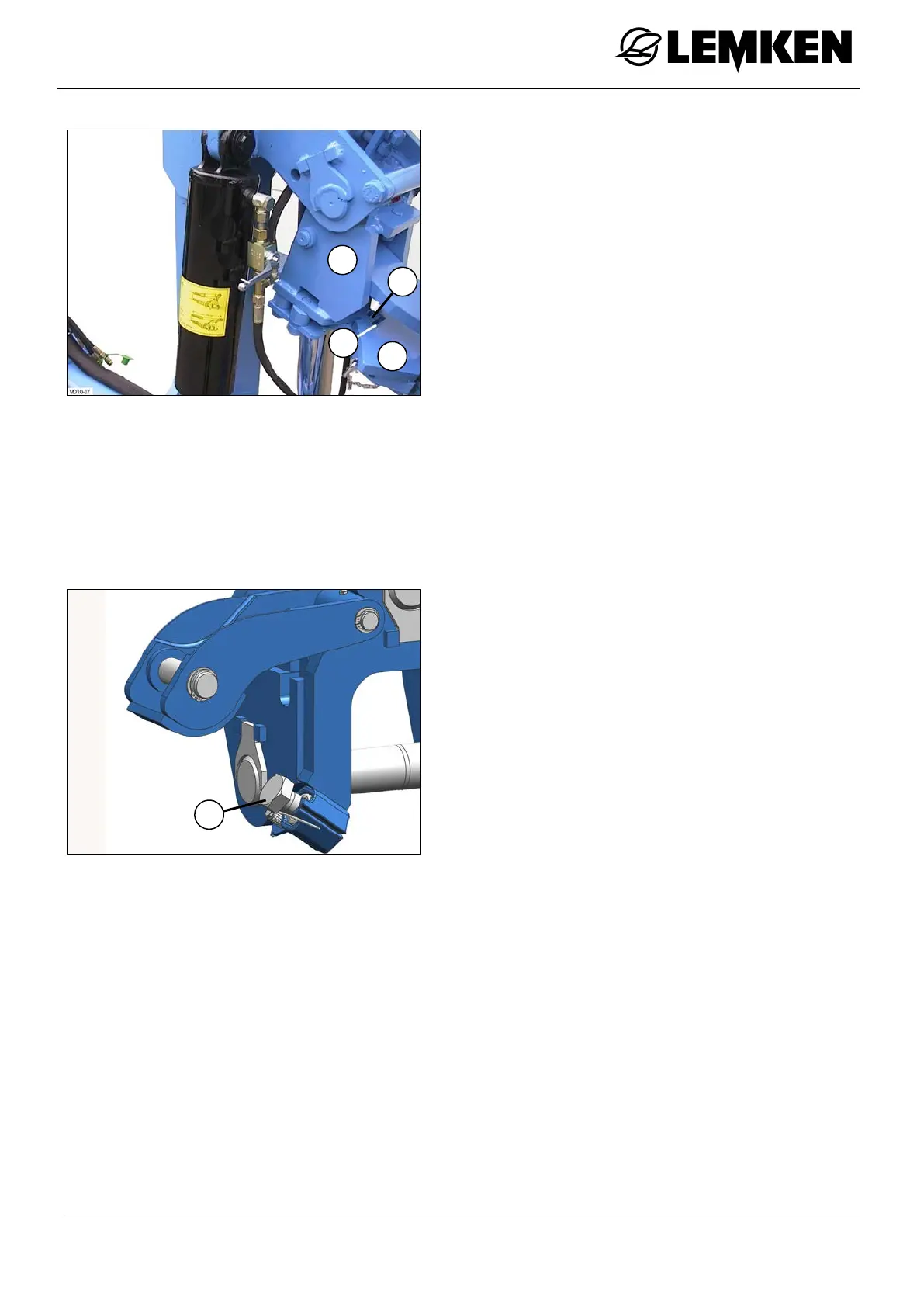

During in-furrow ploughing, the land wheel
is moved to the centr
e position and locked
with the stop (3).
−
Move the stop (3) up and forward until
the tab (4) of the bracket (5) slots into
the recess (6) of the stop.
12.4 Tilt
During work, the stalks of the body should be more or less vertical in relation to
the ground when looking in the direction of travel. The tilt is set correctly if the
plough looks to be even.
If it does not, the tilt can be adjusted as fol-
lows using the screws (1) on both sides:
−
Raise the implement a few cm at the
front.
−
Then lower the implement again fully.
The screw (1) is released.
− Use an open-end spanner (46 mm WAF)
to set the required tilt.
− Move the three-point hydr
aulics back to
the original position.
