Adjustments
72
12.1 Front furrow width

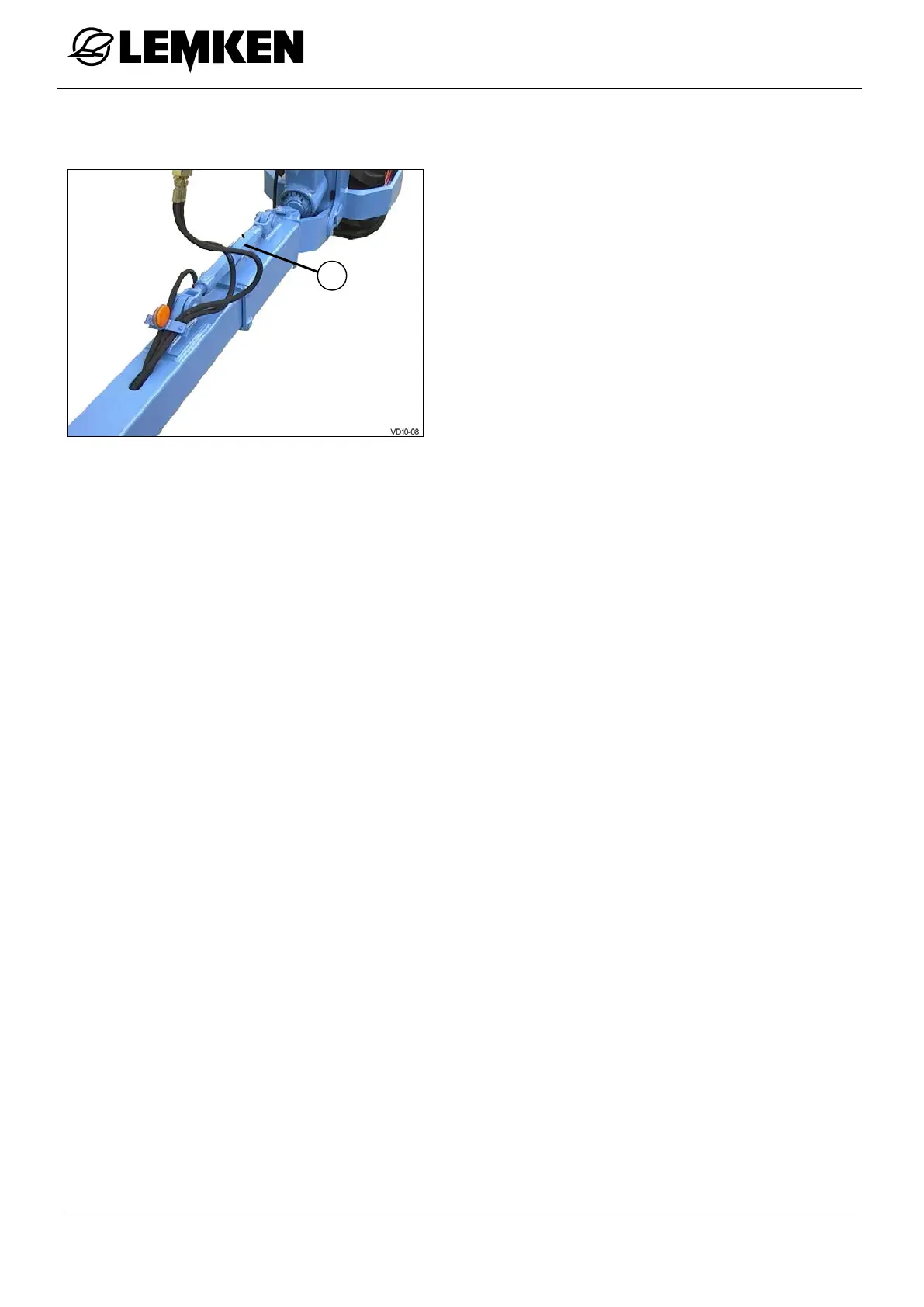

The front furrow width is set with the spin-
dle (1).
• Front furrow too narrow
− Turn the spindle (1) to make it longer.
• Front furrow too wide
− Turn the spindle (1) to make it shorter.
A double-
acting hydraulic cylinder can be
used to set the front furrow width from the
tractor seat instead of using the spindle
(1).
• Front furrow too narrow
− Extend the hydraulic cylinder.
• Front furrow too wide
− Retract the hydraulic cylinder.
