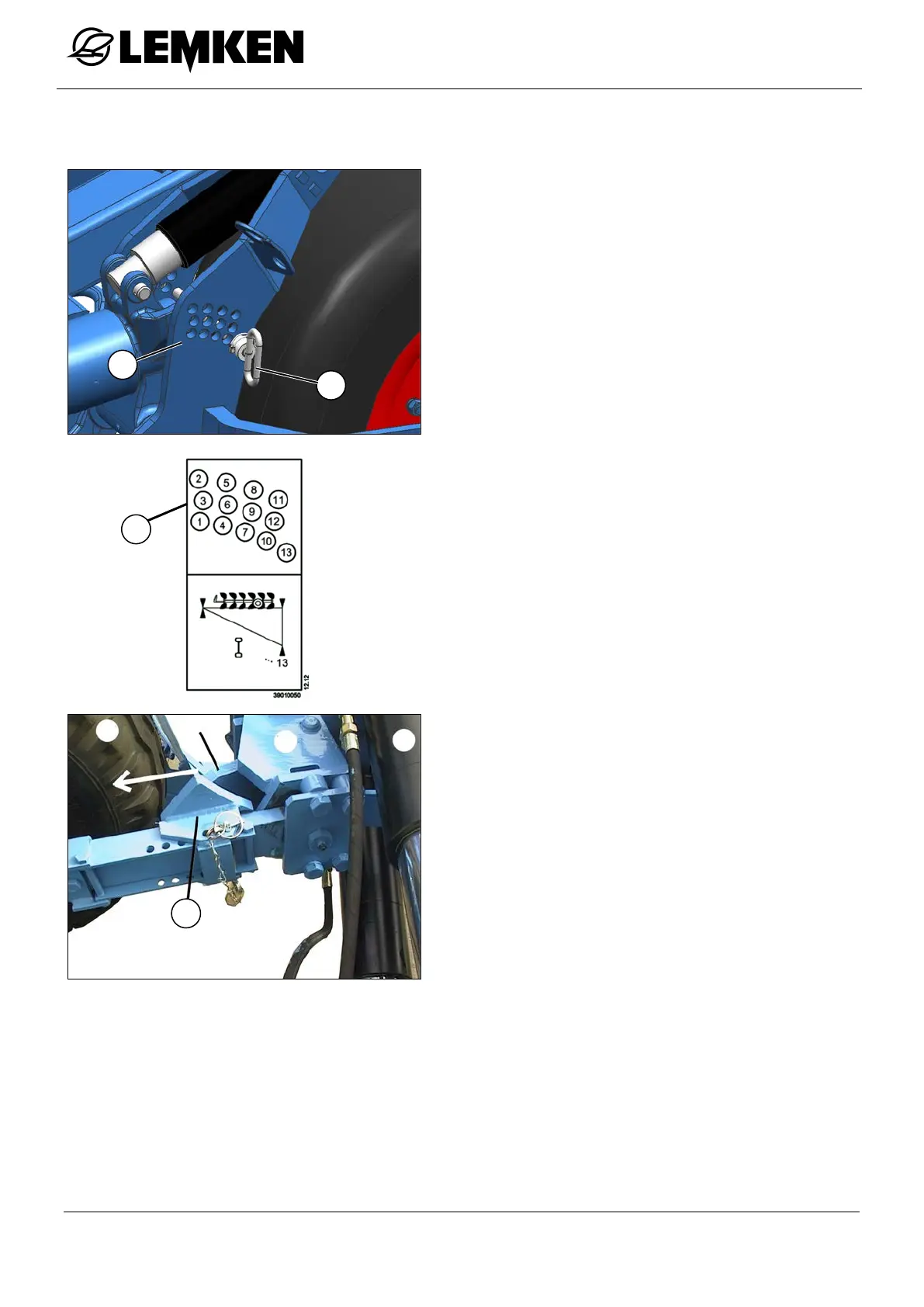

12.3 Working depth
− Take off the pin's (1) grip safety on the
frame side.
−
Insert the pin (1) into the right hole on
the adjustment plates (2) for the required
working depth.
• Hole 1 => minimum working depth
• Hole 13 => maximum working depth
−
Secure the pin (1) with the grip safety
and the securing pin.
During on-land ploughing, the working
depth also has to be set via the front land
wheel.
− Release the stop (3).
− Move the stop (3).
• Move the stop in the direction of the ar-
row
=> increase working depth
•
Move the stop in the opposite direction
to the arrow => reduce working depth
