Adjustments
84
12.10 Landside

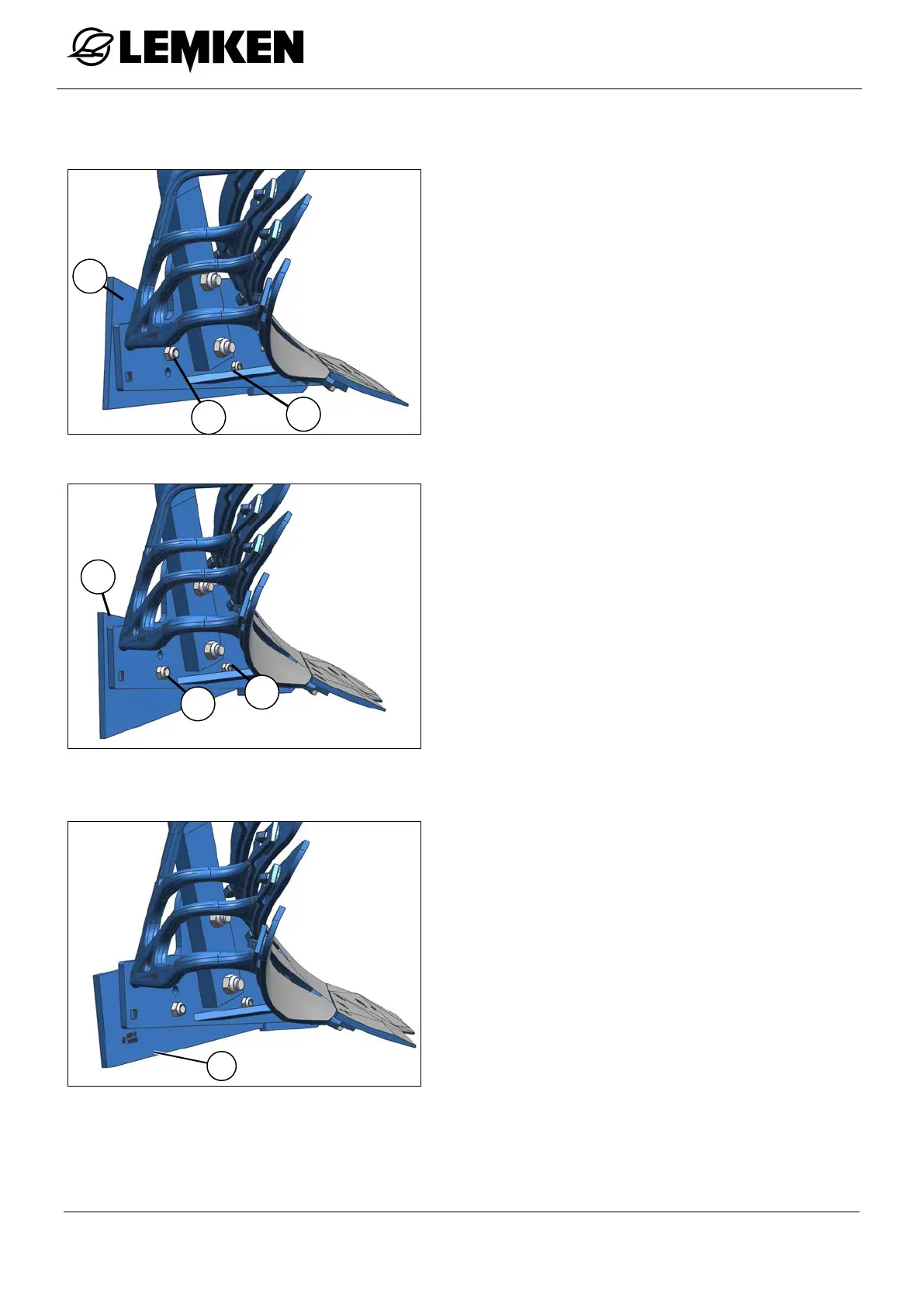

Landside DMV1, standard position
Landside DMV1, position for working on
slopes
For better guidance on slopes, move land-
side DMV1 (1) to a lower position (only
possible with DuraMaxx plough bodies.)
− Loosen the bolt (3).
− Remove the bolt (2).
− Move the landside (2) to the lower posi-
tion.
− Replace the bolts.
− Tighten all the bolts.
See «Tightening torques, page 122».
Landside DMV2
Landside DMV2 (4) remains in this position
even on slopes.
