12.15.4 Projection angle adjustment
On the standard version the projection an-
gle of the skimmers cannot be adjusted.

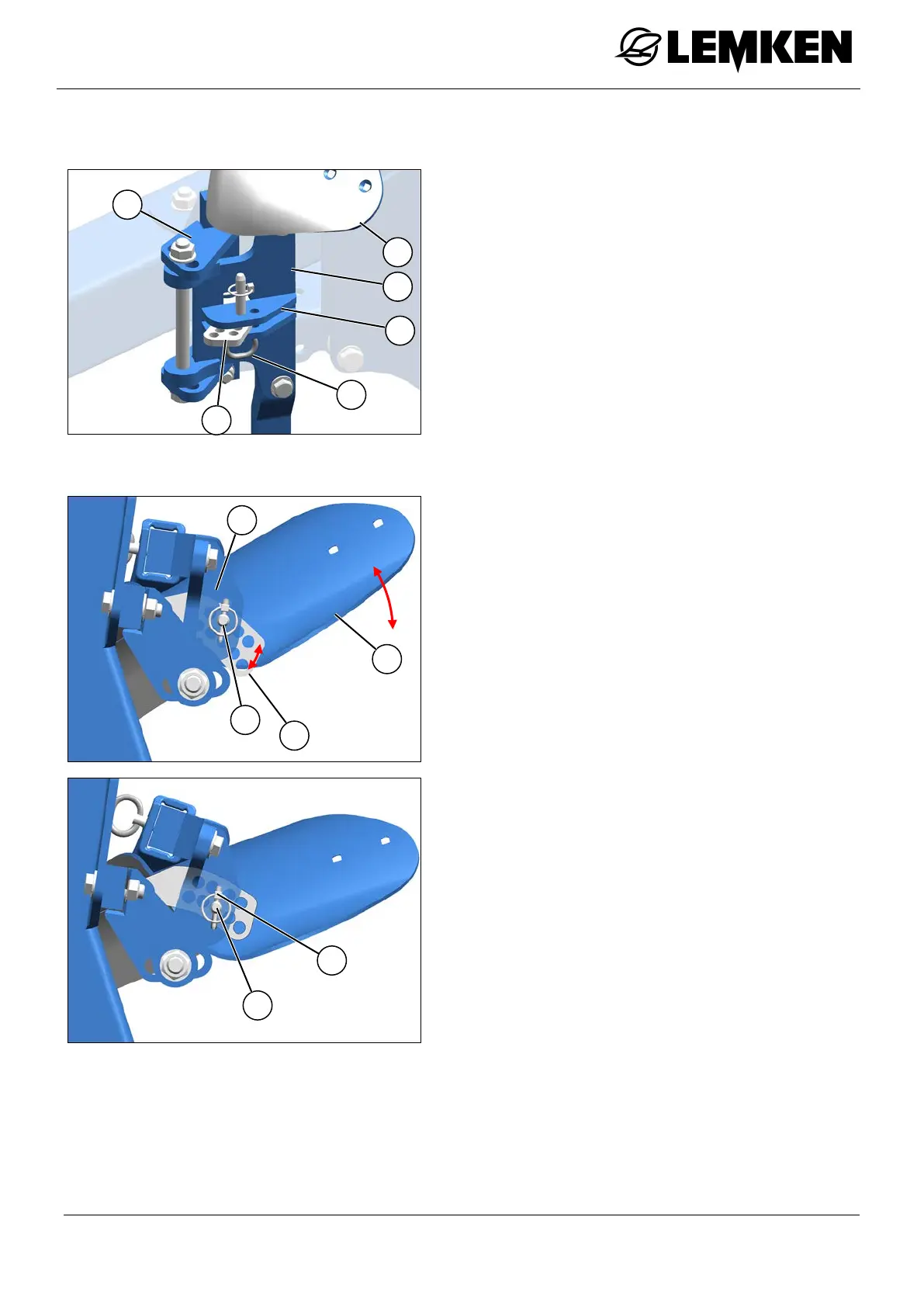

On the version with projection angle ad-
justment the skimmers (1) are connected
to their flat stalks (2) and the swivel brack-
et (3) is connected by a pivot to the bracket
(4). The plate (5), which is attached by a
pivot to the bracket (4), can be used to ad-
just the skimmer in steps with the guide pin
(6).
− Release and pull out the guide pin (6).
− Swivel skimmer (1).
−
Swivel plate (5) until one of the bores is
aligned with one of the two bores in the
swivel bracket (3).
− Secure the
connection between the
swivel
bracket (3) and plate (5) using the
guide pin (6).
− Secure guide pin (6) using a linch pin (7).
7
6
1
6
5
3
2
1
4
3
6
5
