LEMKEN Diamant 11 - 12.13 Subsoilers

Adjustments
89
12.13 Subsoilers

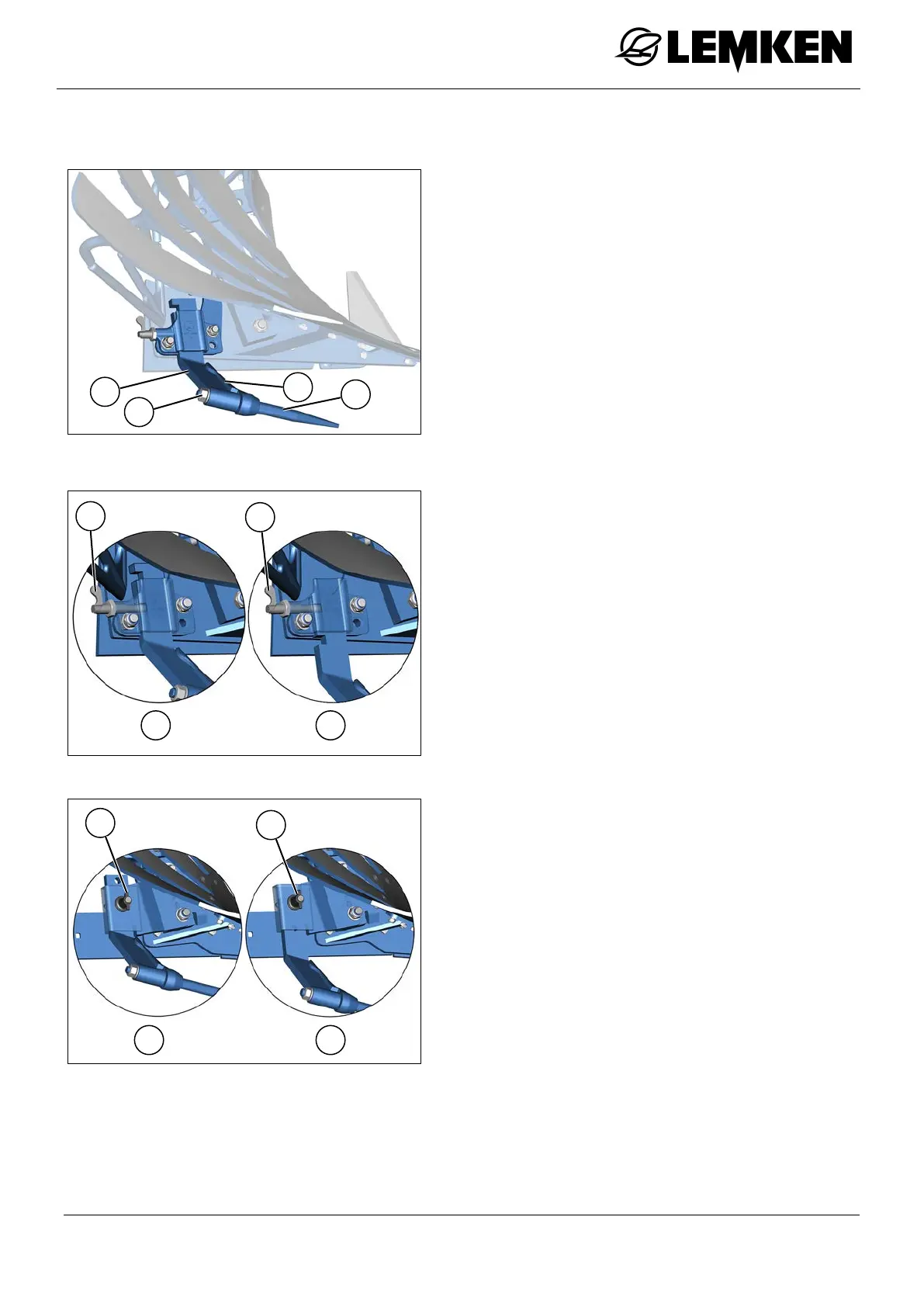

Subsoilers are mounted to the basic body
and to the leg at DuraMaxx and Dural re-
specti
vely. The depth of the subsoilers can
be adjusted.
The leg (2) is protected against wear by
the leg guard (3). Both the leg guard (3)
and the gudgeon (1) can be replaced after
removing the nut (4).
Adjusting the working depth
DuraMaxx
Dural
Moving the leg (2) enables the working
depth of the subsoiler to be adjusted to two
positions (A) and (B).
− Release subsoiler (5) with locking bar.
− Move subsoiler.
− Secure subsoiler with the locking bar (5).
