Adjustments
73
12.2 Distance from the tractor to the edge of the furrow (online version only)

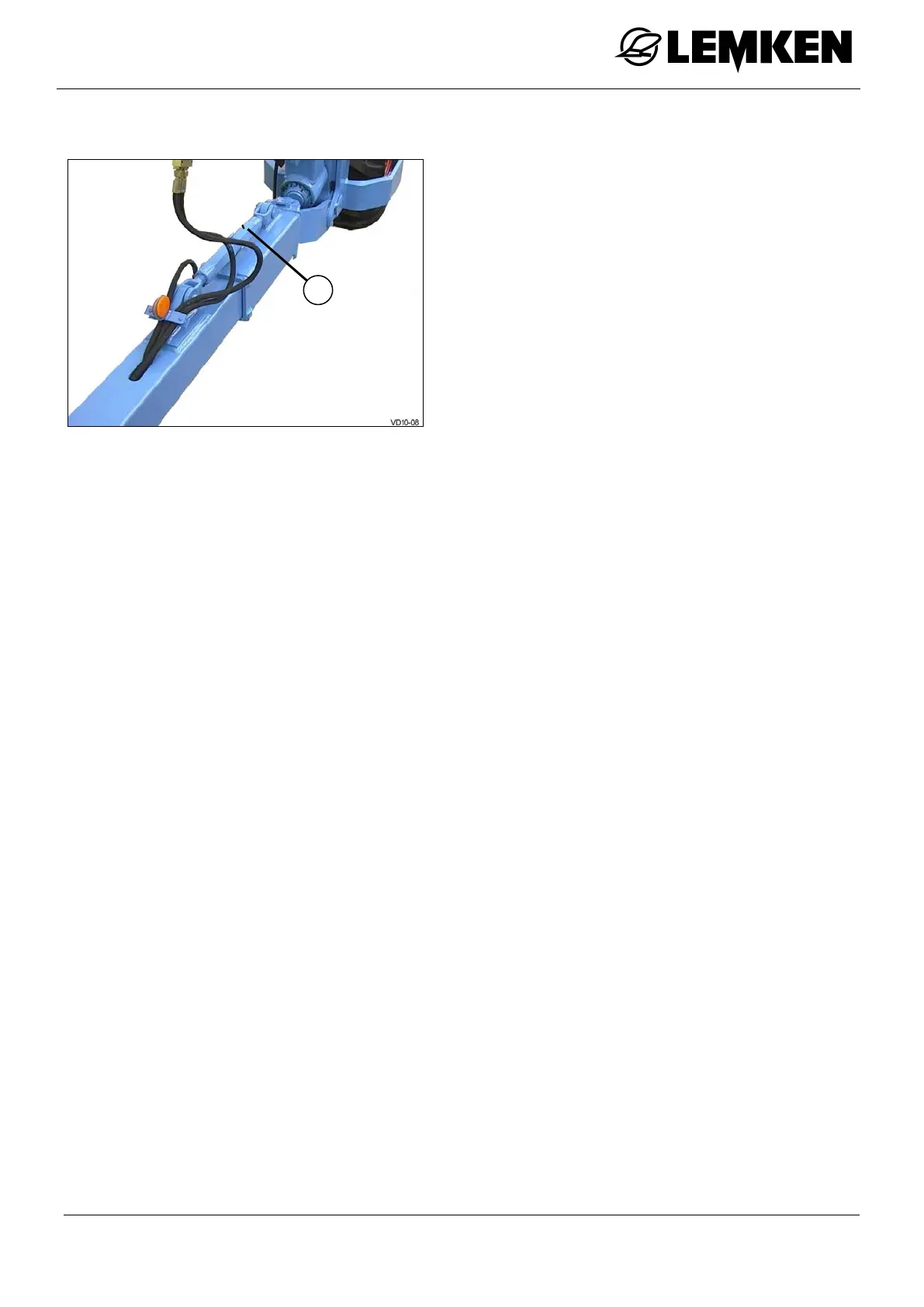

The distance from the tractor to the edge
of the furrow can be adjusted in on-land
ploughing using the spindle (1).
Not enough distance:
− Turn the spindle (1) to make it shorter.
Too much distance:
− Turn the spindle (1) to make it longer.
A double-
acting hydraulic cylinder can be
used to set the front furrow width from the
tractor seat instead of using the spindle
(1).
• Not enough distance:
− Retract the hydraulic cylinder.
• Too much distance:
− Extend the hydraulic cylinder.
