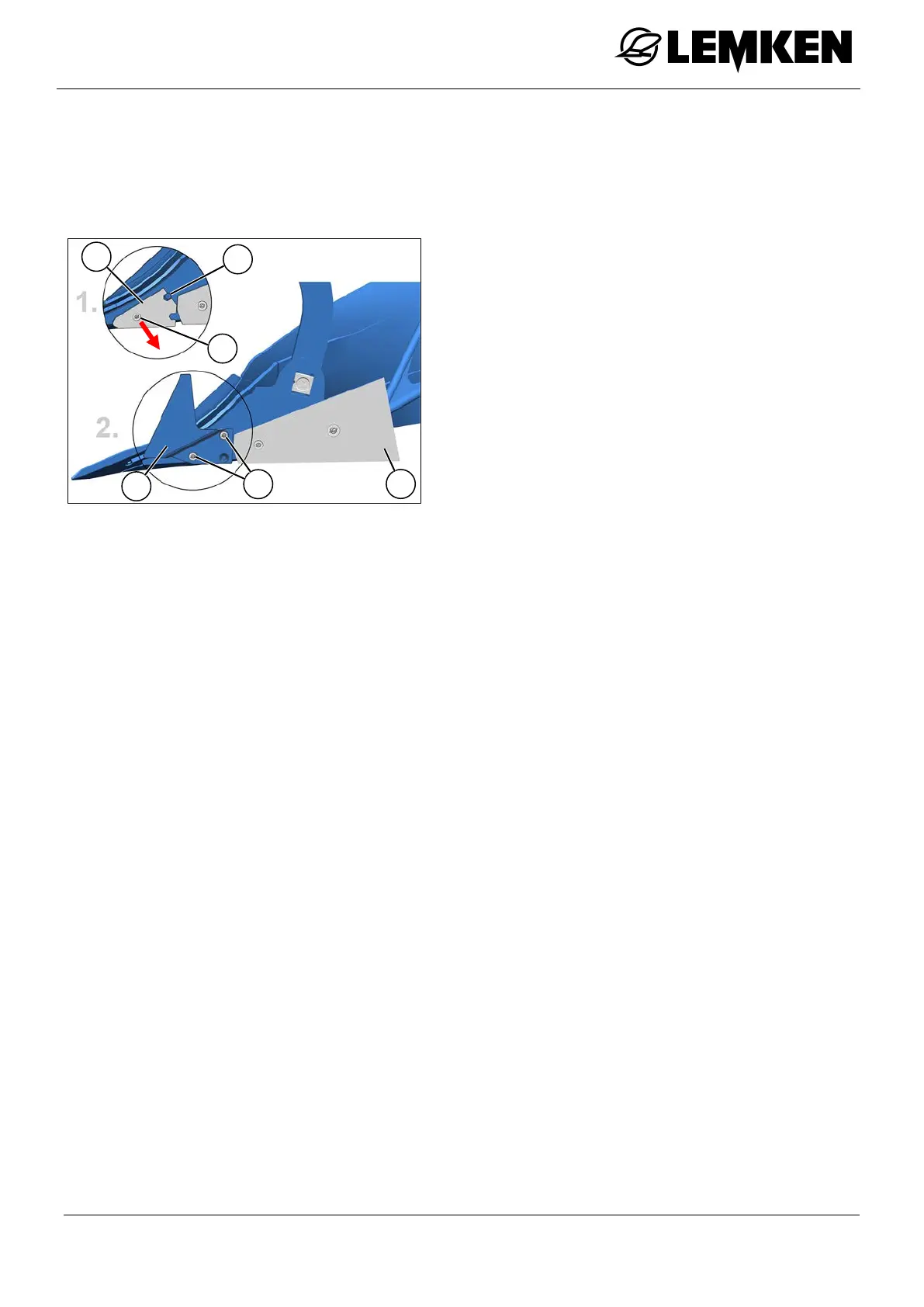

12.11 Sword coulter
The landside wedge must be removed be-
fore the sword coulter is attached.
DuraMaxx
− Unscrew countersunk screw (5) and
hexagon bolt (4).
− Remove landside wedge (1) and hexa-
gon bolt (4).
−
Attach sword coulter (2) in front of the
landside (3) and screw into place using
both hexagon bolts (5).
− Retighten all screws, see «Tightening
torques, page 122».
3
5
2
4
5
1
