12.6 Working width for each body (Diamant V)
The working width of the Diamant V is infi-
nitely adjustable.
Adjustment range: 30cm -
55cm for each
body.

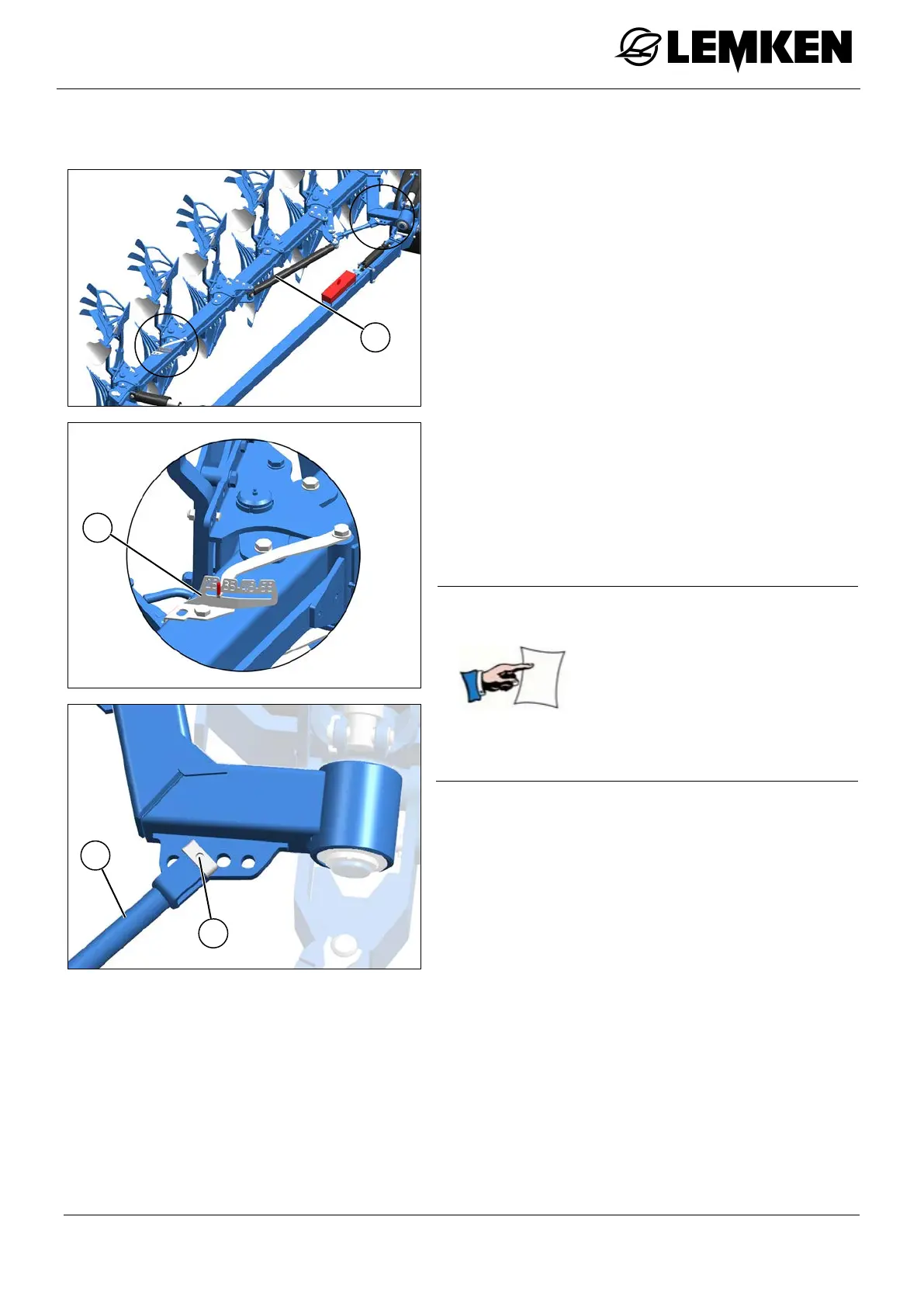

The working width is changed via the hy-
draulic ram (1).
− Retract the hydra
ulic ram => reduced
working width
−
Extend the hydraulic ram => increased
working width
The working width is shown on the indica-
tor (2).
The strut (3) at the wheel
arm is connected as
standard to the hole (4)
for 44 cm.
The position must not be
altered at the Diamant V.
1
44cm
3
4
Y
Y
X
2
X
50cm
38cm
33cm
