Lenord+Bauer MiniCODER GEL 2444 - Dimensional Drawings; Temperature Sensor Cable

9 Technical data and accessories Lenord+BauerTemperature sensor cable
70 GEL 2444
English
9.2 Temperature sensor cable
Cable version Technical data
GEL 2444
M
(2-core temperature sensor cable)
● TEFLON cable 2 × 0.14 mm
2
● Outside diameter: 2.8 mm (± 0.1)
● Minimum bending radius: 20 mm
GEL 2444
N
(4-core temperature sensor cable)
● ETFE cable 4 × 0.14 mm
2
● Outside diameter: 3.5 mm (± 0.2)
● Minimum bending radius: 7 mm
GEL 2444
P
(6-core temperature sensor cable)
● ETFE cable 6 × 0.14 mm
2
● Outside diameter: 3.5 mm (± 0.2)
● Minimum bending radius: 7 mm

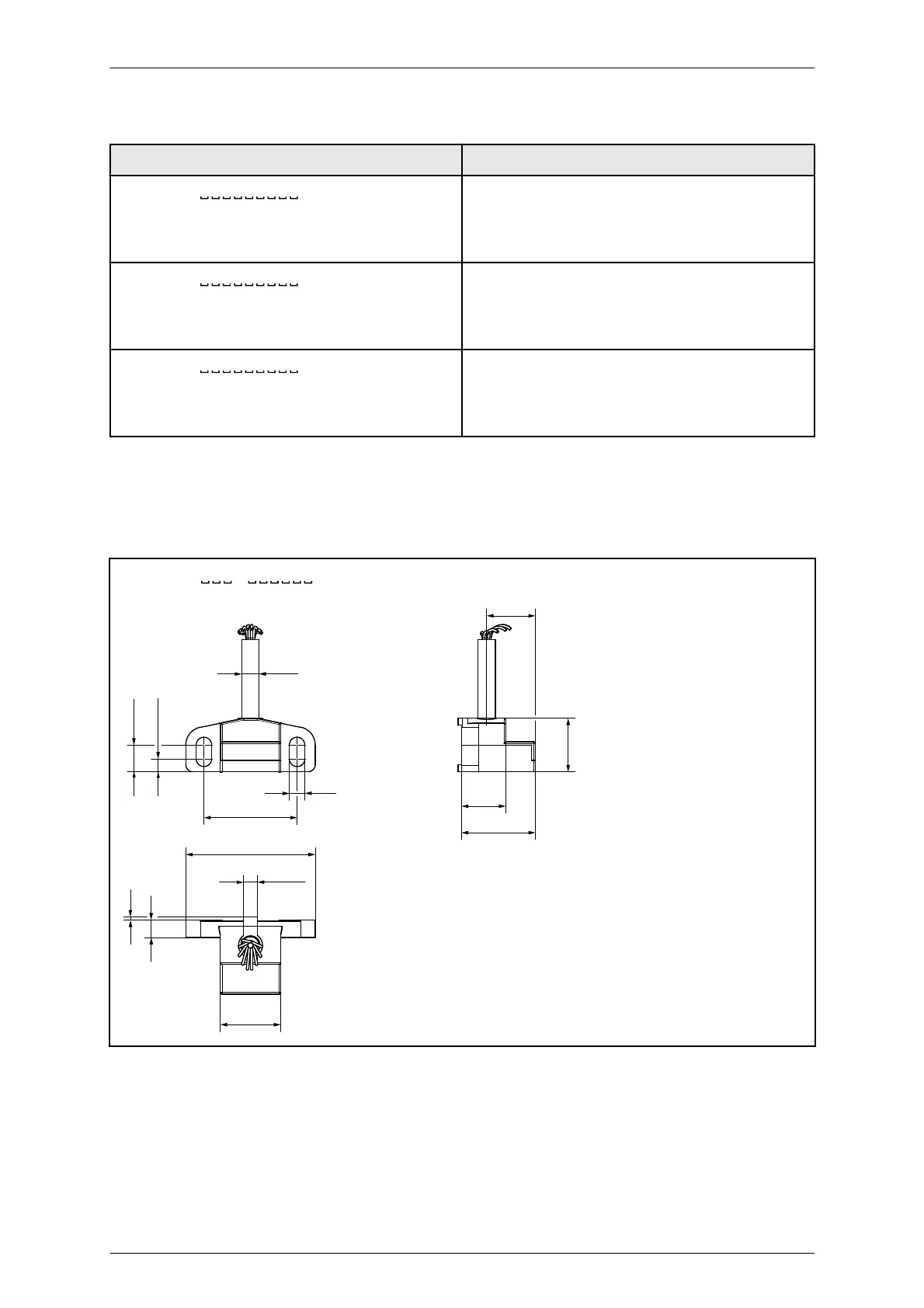

9.3 Dimensional drawings
All dimensions stated in millimeters
General tolerance ISO 2768 –mK
GEL 2444
R
14.1
12.8
21.4
15.5
ø 5
27
4.5
7.75
3.75
17.5
37.5
4
-0.05
-0.1
1
5
