1.Connectthefollowingtypeofmini-SAScabletotheRAIDcardasshown.
Note:Intheillustration,connectors0,1,2,and3willbeconnectedtothecorrespondingsignal
connectorsofHDD0,HDD1,HDD2,andHDD3.Theremainingtwoconnectorsarepowerconnectors
andwillbeconnectedtothepowercablesfromthepowersupply.
0
1
2
3

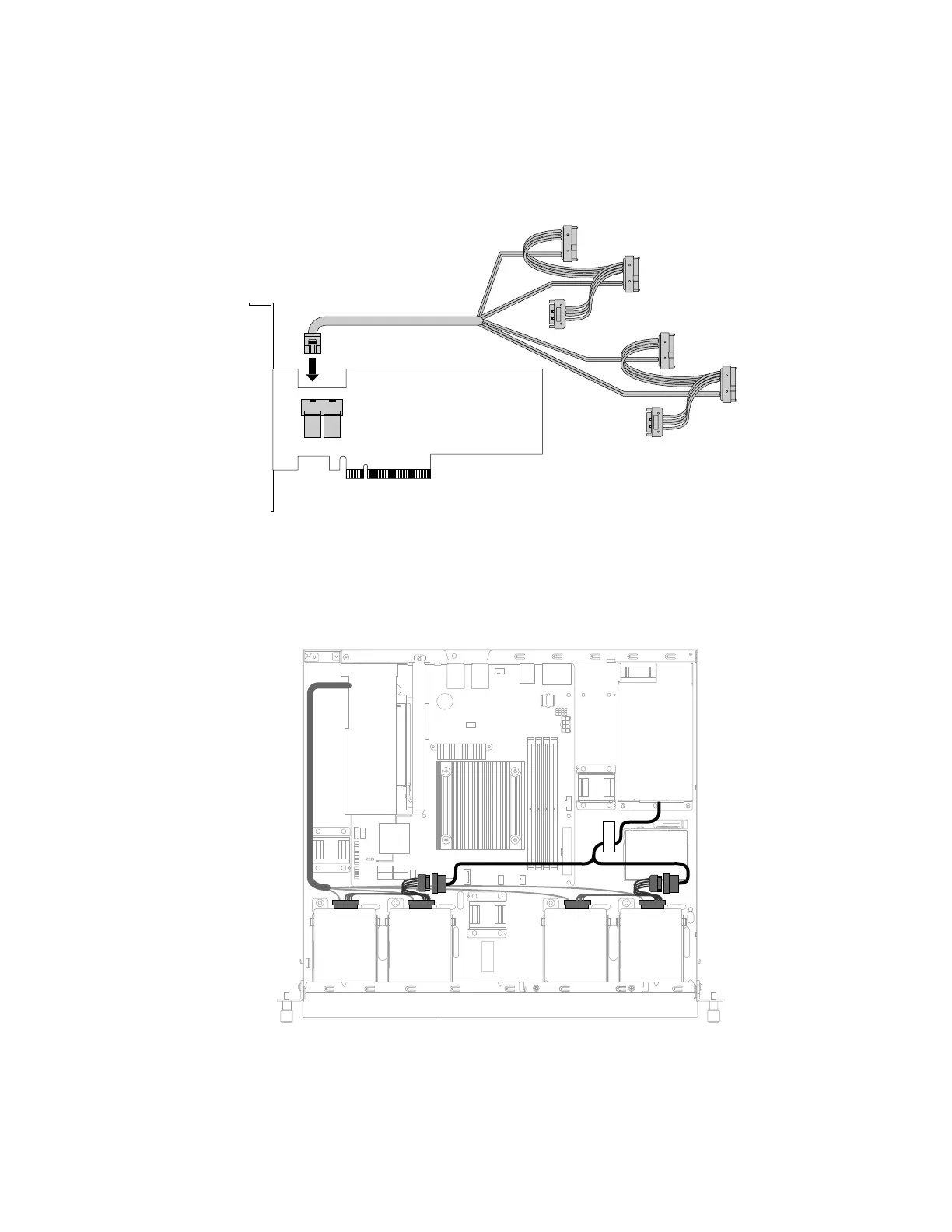

Figure12.Connectingthemini-SAScabletotheRAIDcard
2.InstalltheRAIDcardtotherisercardassembly.See“InstallingthePCIecard”onpage56.
3.Connectthemini-SAScabletotheHDDsandanytwoofthepowercableconnectorsasshown.
Figure13.Connectingthemini-SAScabletotheHDDsandpowercableconnectors
4.Routethecablesusingthecableclipsortiesinthechassis.
Chapter3.Productoverview21
